ICP ROCKY-538TXV V4.x
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
Single Board Computer
dimDimensions
Empty
ramMax VRAM size
2MB
chipCache
512KB
ramMax RAM size
256MB
ramRAM types
72-pin EDOSDR UDIMM
pwrPSU connector
Empty
tag Also known as
  • IEI ROCKY-538TXV V4.x
connI/O ports
2x
Disk-on-Chip Socket
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
1x
PICMG 1.0 (PCI/ISA)
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2024-09-08T12:18:35Z
Board info score is 7.8/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
07/29/1998-i430TX,W977TF-2A59II9BC-00
Note
Core version
4.51PG
BIOS version
Logs
drv 10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
1.05.05
OS support
Windows 3.1x
Arch
x86
Size
544.3KB
Filename
Name
Version
4.03.00.2111-3.12.01
OS support
Windows 9x
Arch
x86
Size
244.1KB
Filename
Name
Version
4.10.01.2122-3.42.02
OS support
Windows 9x
Arch
Size
266.7KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename

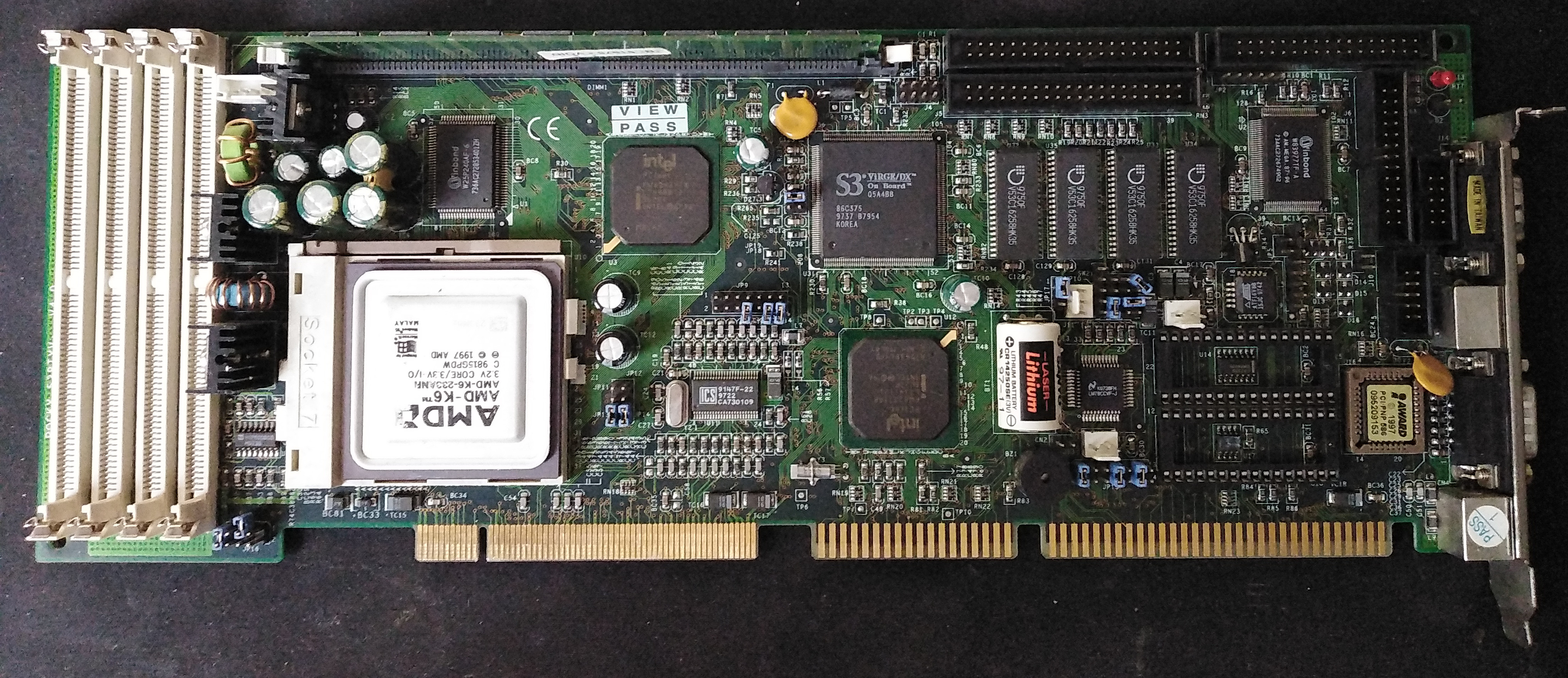

image1 Image 1 of 2 (Powerack.cz)

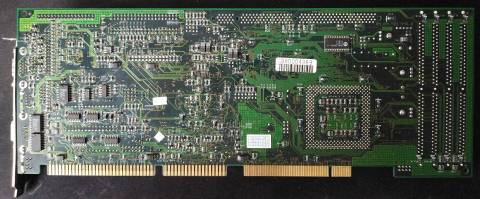

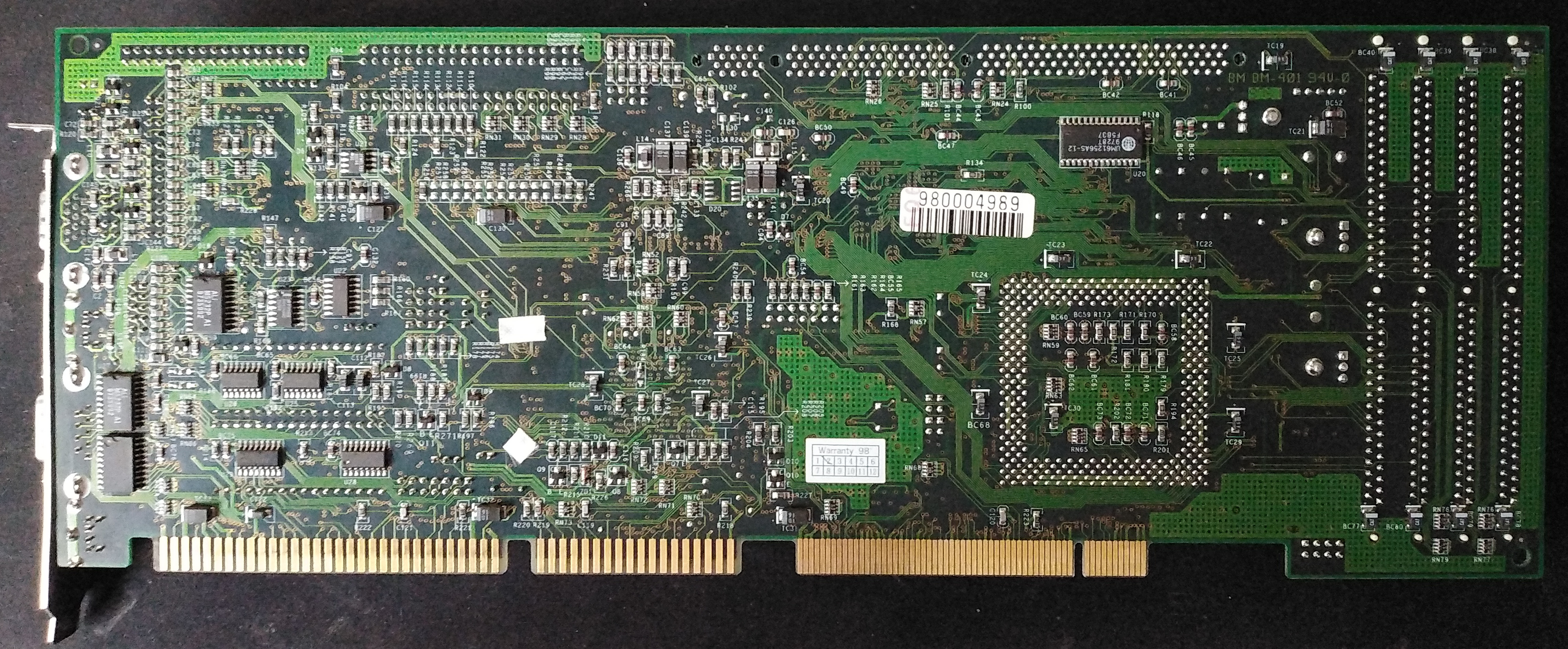

image2 Image 2 of 2 (Powerack.cz)
