IBM PS/2 MODEL 30 (8530) (P-PLANAR)
Logs
chipChipset
cpuSocket
DIP40
speedFSB speed
8MHz
moboForm factor
OEM / Proprietary
dimDimensions
355mm x 304mm
chipCache
None/Integrated in the CPU
ramMax RAM size
640KB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
Serial
cardExpansion slots
3x
8-bit ISA
notes Notes

The differences between this and the Greenock are noted in detail in the following link.

Further Info: https://www.ardent-tool.com/8530/Planar.html

Last updated 2025-09-05T10:36:31Z
Board info score is 7.1/10
bios 1 BIOS file available

vendor IBM - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
PS/2
BIOS version
Logs
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1993-03
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 7 (Tomas Slavotinek)
image2 Image 2 of 7 (ThisOldTech)
image3 Image 3 of 7 (bschicht86)
image4 Image 4 of 7 (ThisOldTech)

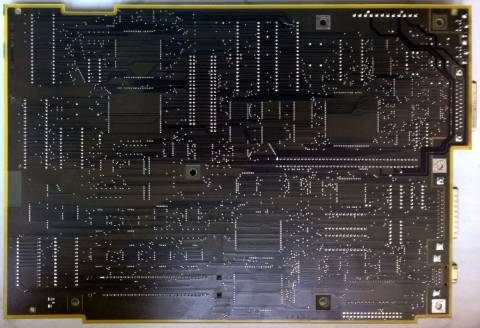

image5 Image 5 of 7 (bschicht86)
image6 Image 6 of 7 (bschicht86)
image7 Image 7 of 7 (bschicht86)
