IBM eServer xSeries 220 Type 8646
Logs
chipChipset
cpuSocket
Socket 370 (PGA370)
speedFSB speeds
100MHz133MHz
moboForm factor
Extended ATX/EATX (max 305 × 330 mm)
dimDimensions
305 mm x 330 mm
ramMax VRAM size
4MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX auxiliary 3.3v/5v (6-pin P14)
maxcpuMulti CPU support
2 CPUs
tag Also known as
connI/O ports
1x
Floppy interface
1x
IDE interface
1x
Internal SCSI
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
2x
32-bit PCI
3x
64-bit PCI
notes Notes

Board supports ROM-based DOS "PC Doctor" diagnostics utility for IBM

Last updated 2023-04-21T09:14:35Z
Board info score is 9/10
bios 1 BIOS file available

vendor IBM - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
drv 10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.03
OS support
MS-DOS
Arch
Size
526.5KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Linux MS-DOS NetWare Server 3 NetWare Server 4 Netware Client32 OS/2 2.x Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
64.3MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
7.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7
Arch
x86
Size
130.7KB
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
58.6KB
Filename
Version
OS support
NetWare Server 4 Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
660.6KB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
58.6KB
Filename
Version
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
308.5KB
Filename
Version
OS support
MS-DOS Windows 9x Windows NT 4.0
Arch
x86
Size
204.9KB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
219.6KB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2002-06
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-04
File
Logs
Socket
Release date
1999-12
File
Logs
Socket
Release date
2000-07
File
Logs

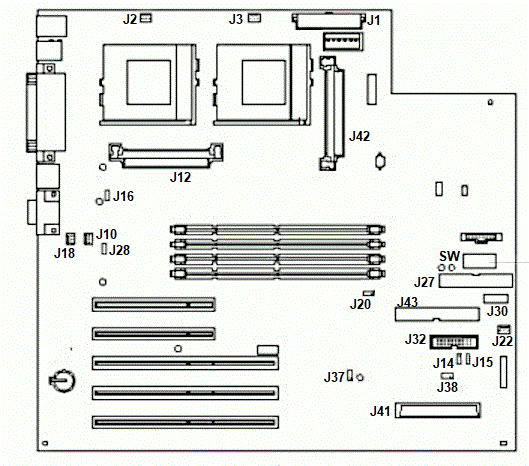

image1 Image 1 of 5 (evasive)

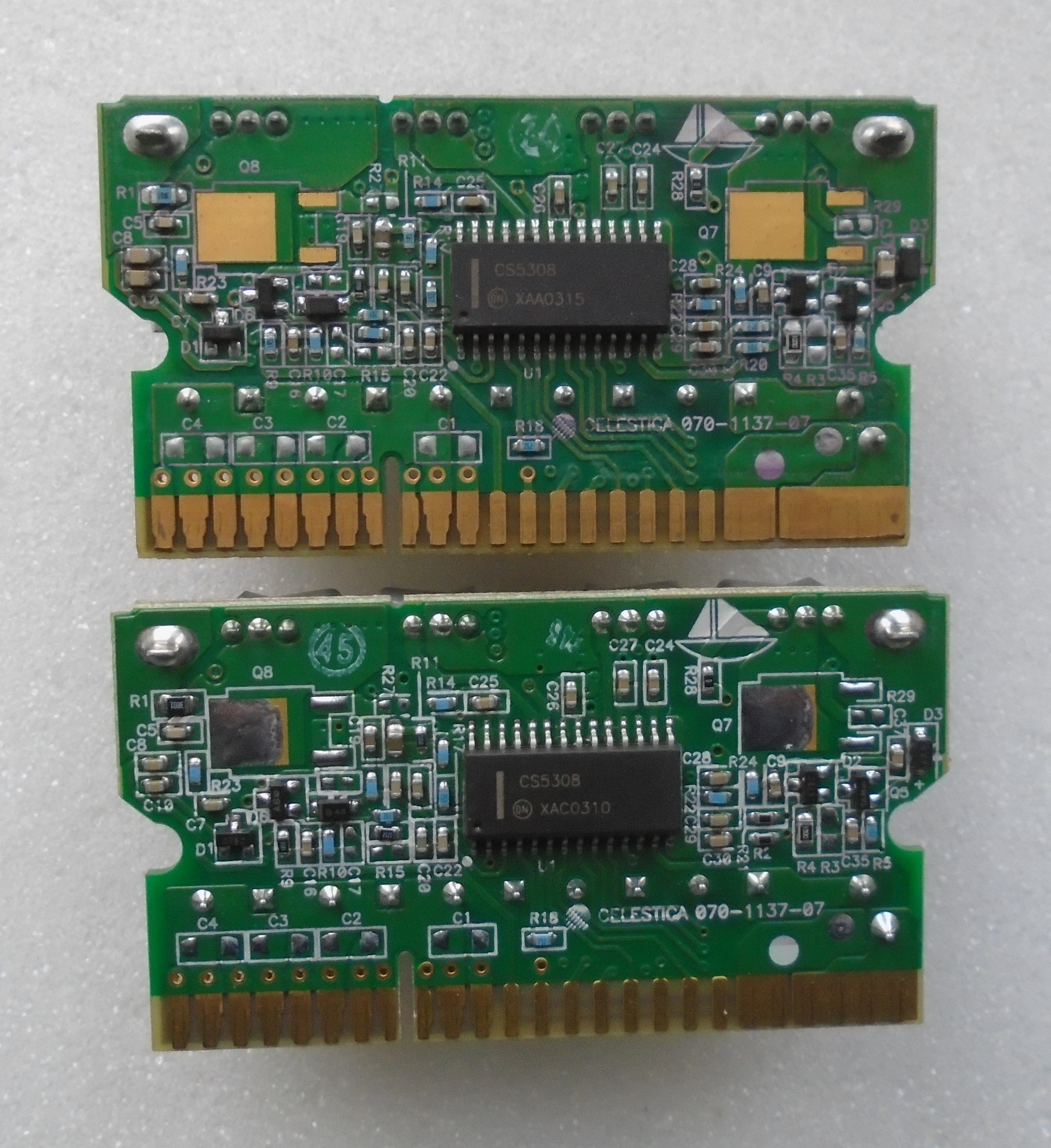

image2 Image 2 of 5 (PC Hoarder Patrol)

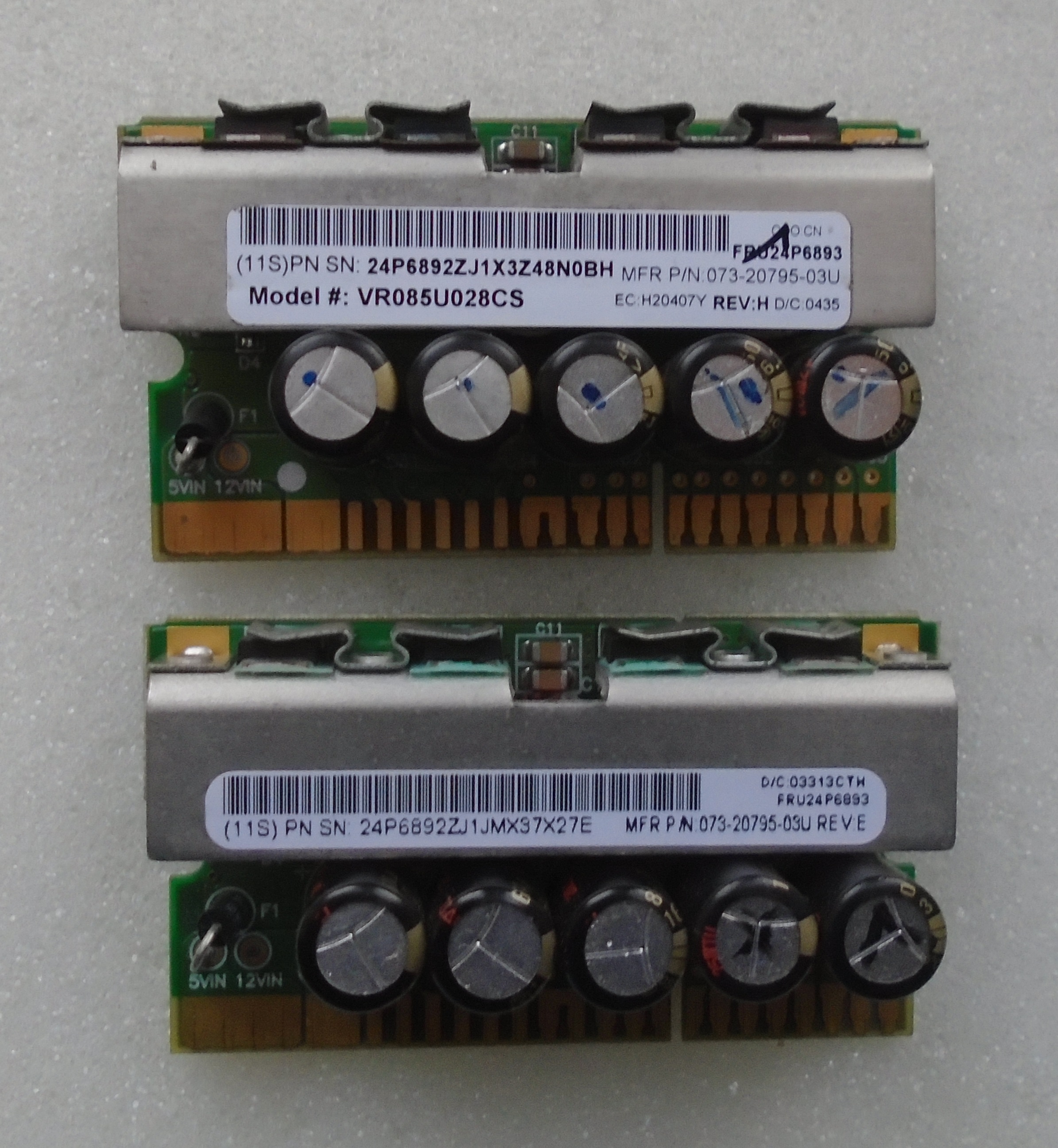

image3 Image 3 of 5 (PC Hoarder Patrol)

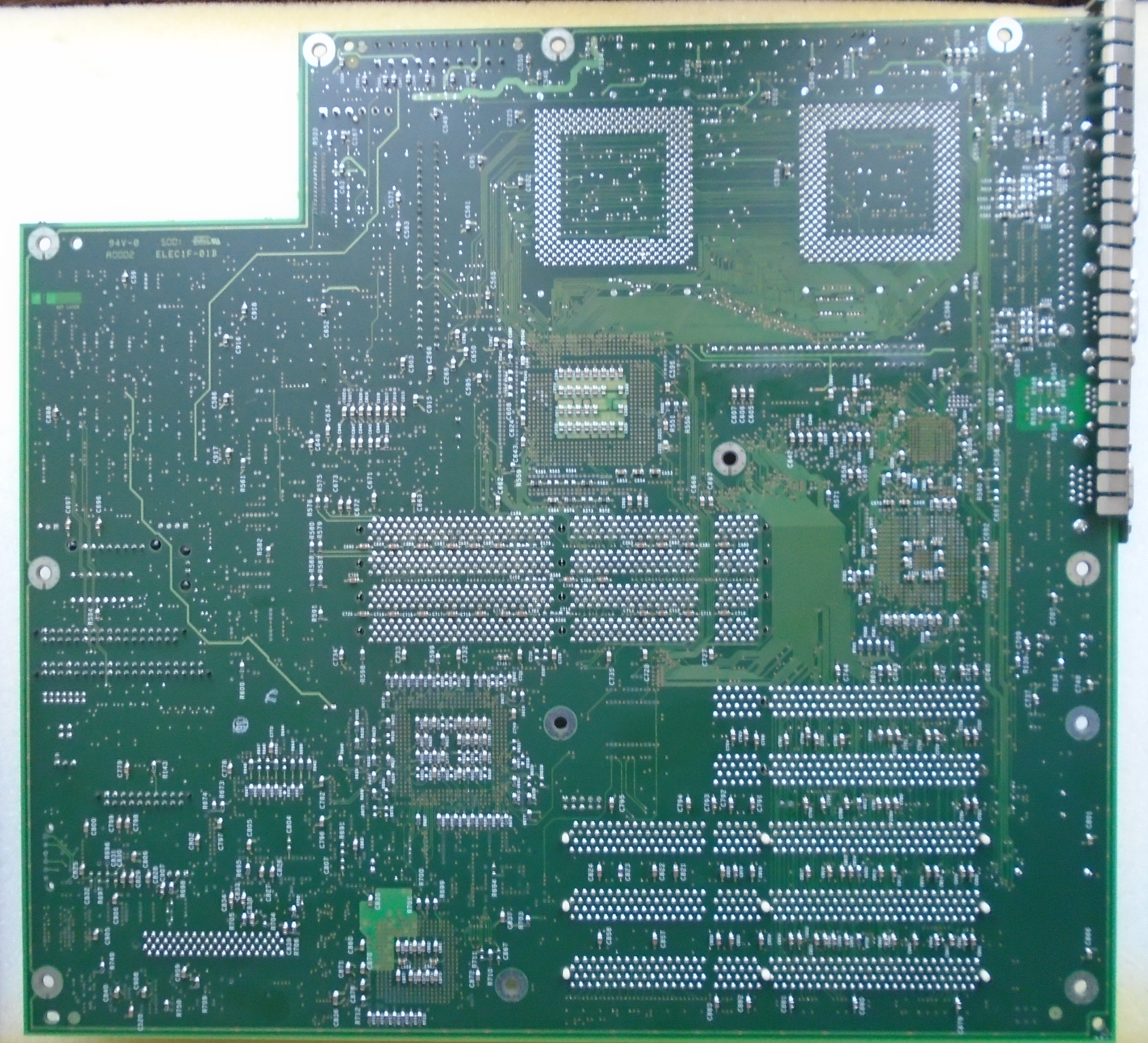

image4 Image 4 of 5 (PC Hoarder Patrol)
image5 Image 5 of 5 (PC Hoarder Patrol)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
