IBM Aptiva 2144, Aptiva 2168 Type F-1,H-1,I-1
Logs
chipChipset
cpuSocket
Socket 3 (PGA237)
speedFSB speeds
25MHz33MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
330mm x 218mm
ramMax VRAM size
1MB
chipCache
128KB
ramMax RAM size
96MB
ramRAM type
72-pin FPM
pwrPSU connector
Empty
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
1x
32-bit VLB
wrench Known issues
  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

Last updated 2025-06-24T17:45:05Z
Board info score is 7.4/10
chip Chips
-> Chipset part
UMC UM8496 UMC UM8498F
-> Video
Cirrus Logic CL-GD5430
cpufam CPU family support
bios 0 BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.22
OS support
Windows 3.1x
Arch
x86
Size
1.4MB
Filename
Name
Version
1.24
OS support
OS/2 2.x Windows 3.1x Windows NT 3.1 Windows NT 3.5x
Arch
x86
Size
9.9MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1996-01-01
File
Logs
Family
Release date
File
Logs
Family
Release date
1996-03
File
Logs
Family
Release date
1995-07
File
Logs
Family
Release date
1995-10
File
Logs
Family
Release date
1995-12
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs
image1 Image 1 of 2 (Microhouse)

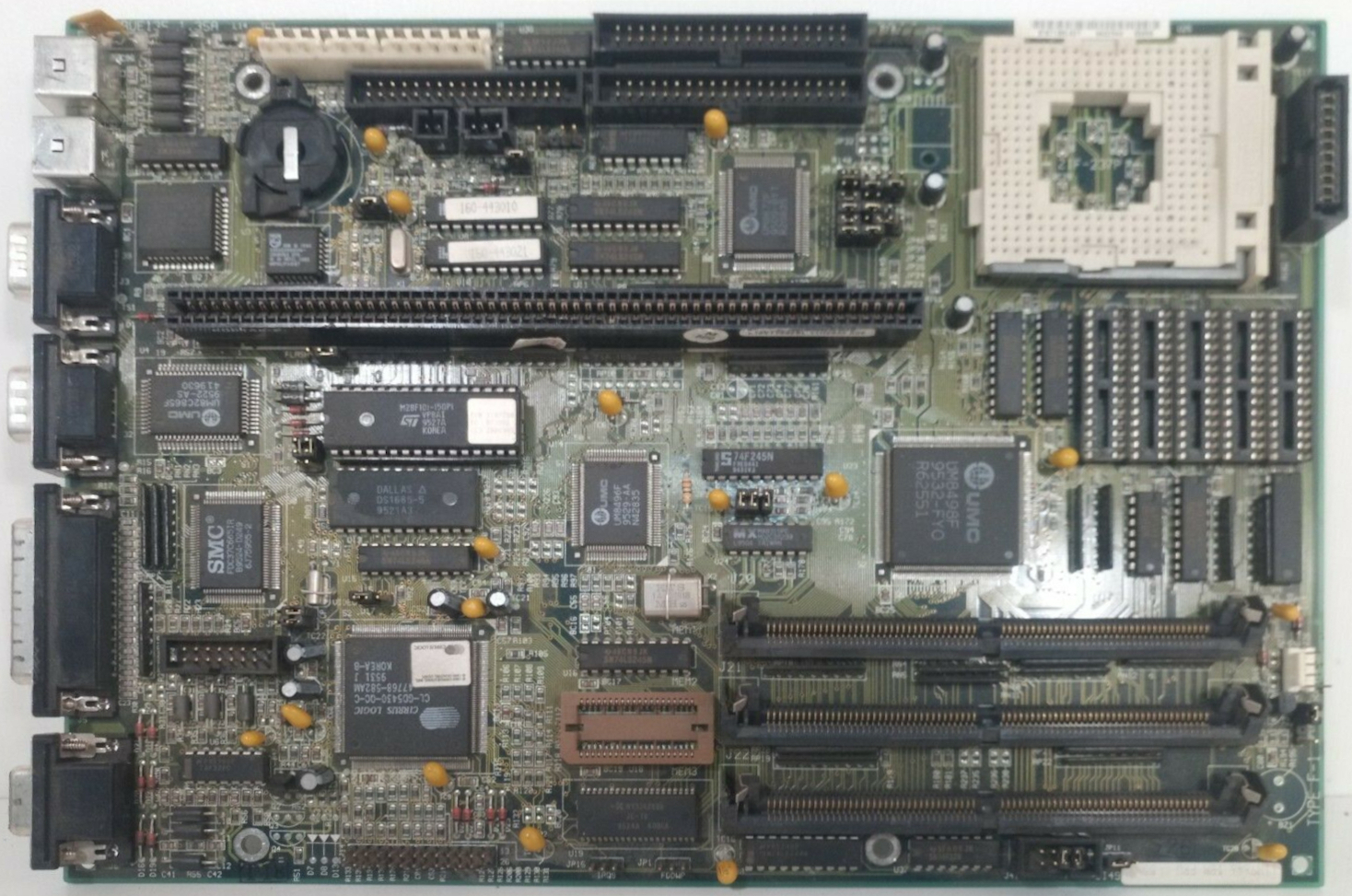

image2 Image 2 of 2
