iBASE/iBT/TechnoLand AWF3000
Logs
chipChipset
cpuSocket
Socket 604 (mPGA604)
speedFSB speed
533MHz
moboForm factor
OEM / Proprietary
dimDimensions
298mm x 266mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR UDIMM ECC
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
CF Card Slot
1x
Floppy interface
2x
IDE interface
1x
PS/2 KB+MS Combo
1x
Parallel
4x
RJ-45 LAN
2x
Serial
2x
USB 1.x
cardExpansion slots
1x
64-bit PCI-X
1x
MicroPCI
notes Notes
  • AFW3000 - Intel Xeon, E7501 PCI-X Server Motherboard w/ RJ45 x 4
  • AFW3000F - Intel Xeon, E7501 PCI-X Server Motherboard w/ Fiber x 4
Last updated 2025-11-02T20:30:20Z
Board info score is 6.2/10
bios 0 BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
6.3.0.1007
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
N/A
OS support
Windows 2000 Windows XP/2k3
Arch
Size
12.2MB
Filename
Name
Version
3.40.1001
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-06-09
File
Logs
Chip
Release date
1998-09-25
File
Logs
Socket
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2005-03
File
Logs

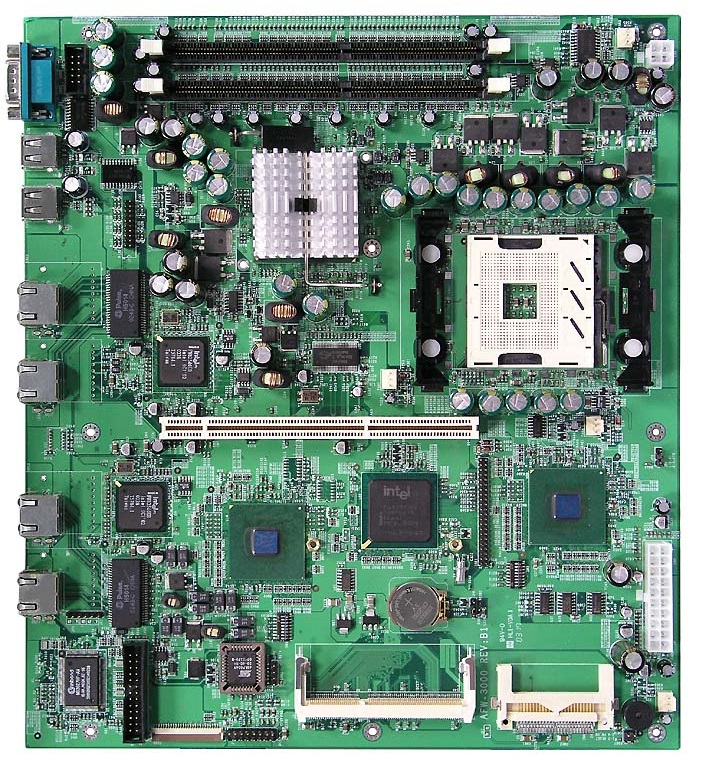

image1 Image 1 of 1 (iBASE/iBT/TechnoLand)
