HP Nutmeg (Slimline)
Logs
chipChipset
cpuSocket
FCBGA1170 (BGA1170)
speedFSB speed
Empty
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB(DDR3L)
ramRAM type
204-pin DDR3 SO-DIMM
pwrPSU connector
DC Jack (19V)
tag Also known as
  • HP 762024-001
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
RJ-45 LAN
2x
SATA III
5x
USB 2.0
1x
USB 3.0
1x
VGA
cardExpansion slots
1x
Mini-PCIe
notes Notes

Found in: HP 251-a123w, 110-503a, 110-502d, 110-401il, 251-a146l, 450-a192na, 450-a121ng, 110-400a, 450-a125na, 450-a131ng, 450-113il, 251-a153d, 450-a21ur, 251-a109.

Unofficially supports 12GB RAM.

Needs active cooling.

In 2009 the internal model name "HP Nutmeg" was first used for another unrelated AM2 motherboard.

Last updated 2025-08-27T17:38:38Z
Board info score is 6.2/10
bios 0 BIOS files available
drv No drivers available
doc No board documents available

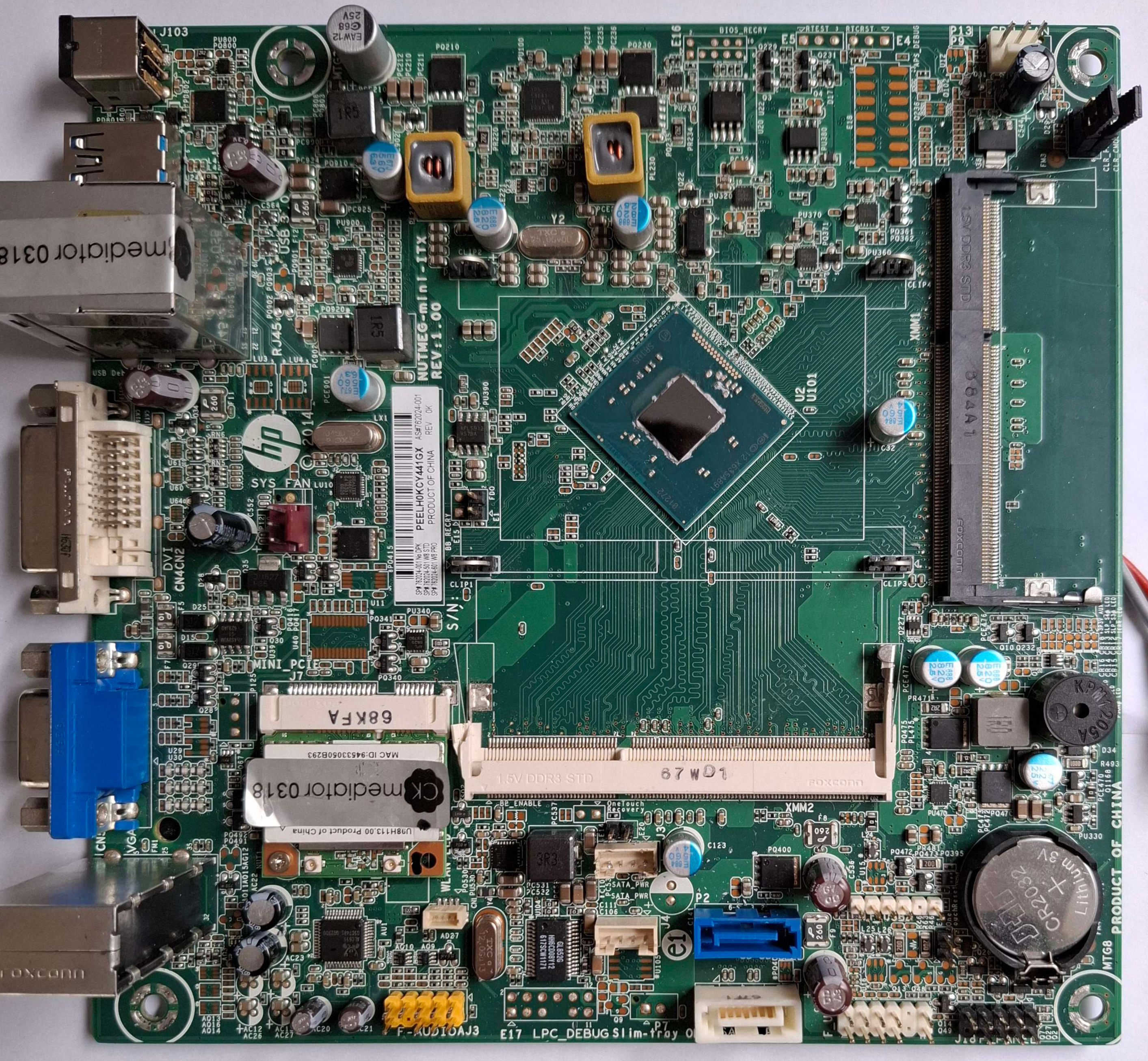

image1 Image 1 of 2 (Bartymor)

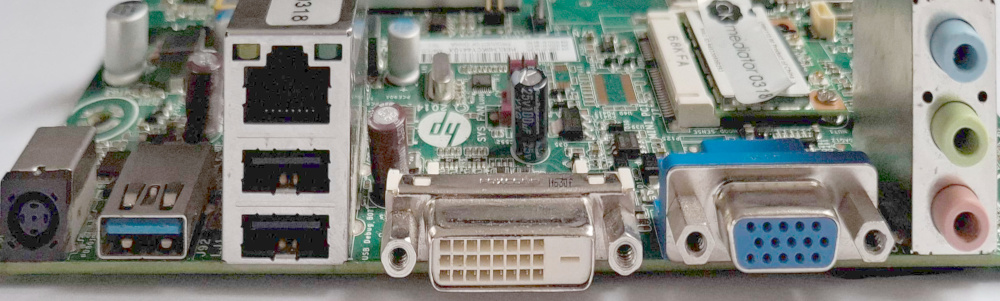

image2 Image 2 of 2 (Bartymor)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
