HP NetServer LD Pro
Logs
chipChipset
cpuSocket
Socket 8 (PGA387)
speedFSB speeds
60MHz66MHz
moboForm factor
OEM / Proprietary
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
512MB
ramRAM type
168-pin EDO UDIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9) ATX auxiliary 3.3v/5v (6-pin P14) AT auxiliary 3.3v (6-pin P10)
maxcpuMulti CPU support
2 CPUs
connI/O ports
1x
Floppy interface
1x
IDE interface
1x
Internal SCSI
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
2x
32-bit EISA
4x
32-bit PCI
Last updated 2025-10-18T17:15:25Z
Board info score is 9.3/10
bios 1 BIOS file available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
LDPRO016 06/10/98 16:53:57
Note
Core version
4.05
BIOS version
Logs
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1997
File
Logs
Family
Release date
1998-05
File
Logs
Family
Release date
1995-11
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1996
File
Logs
Family
Release date
1996-03
File
Logs
Family
Release date
1997-05
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1995-11
File
Logs
Family
Release date
1999-01
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1997-02
File
Logs

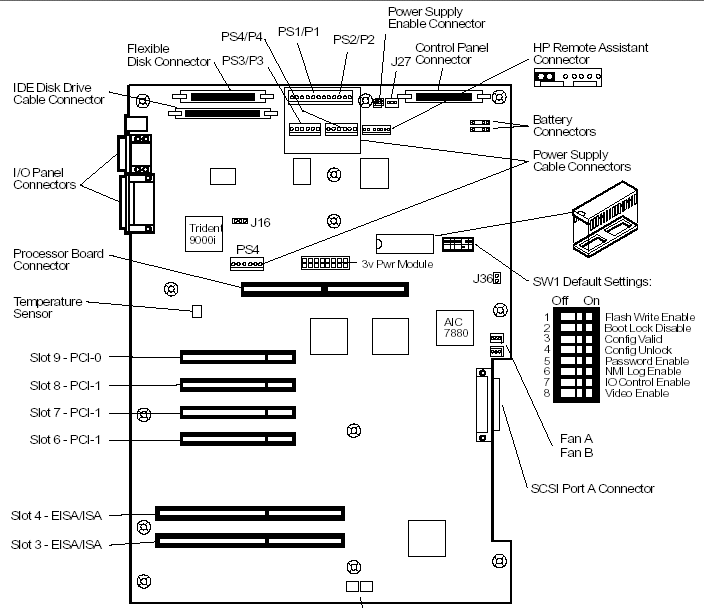

image1 Image 1 of 7 (HP)

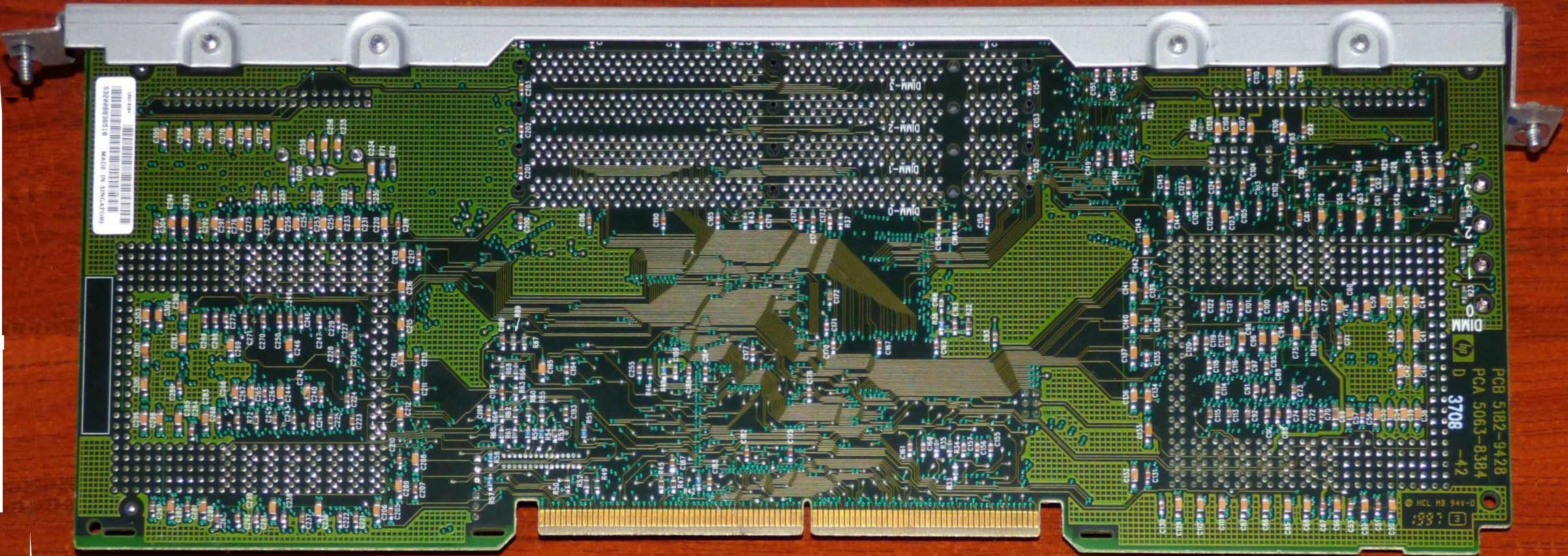

image2 Image 2 of 7

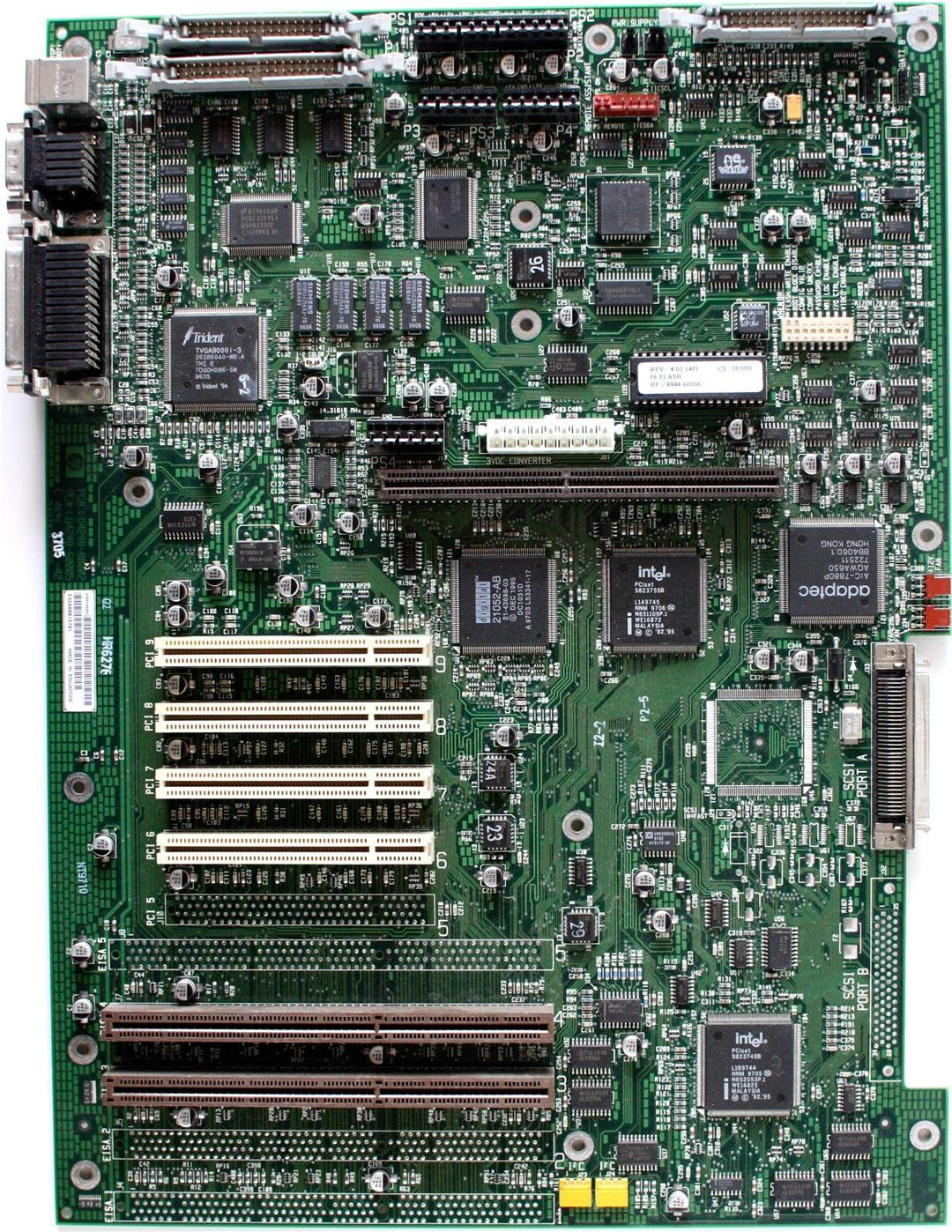

image3 Image 3 of 7 (Computer Retro)

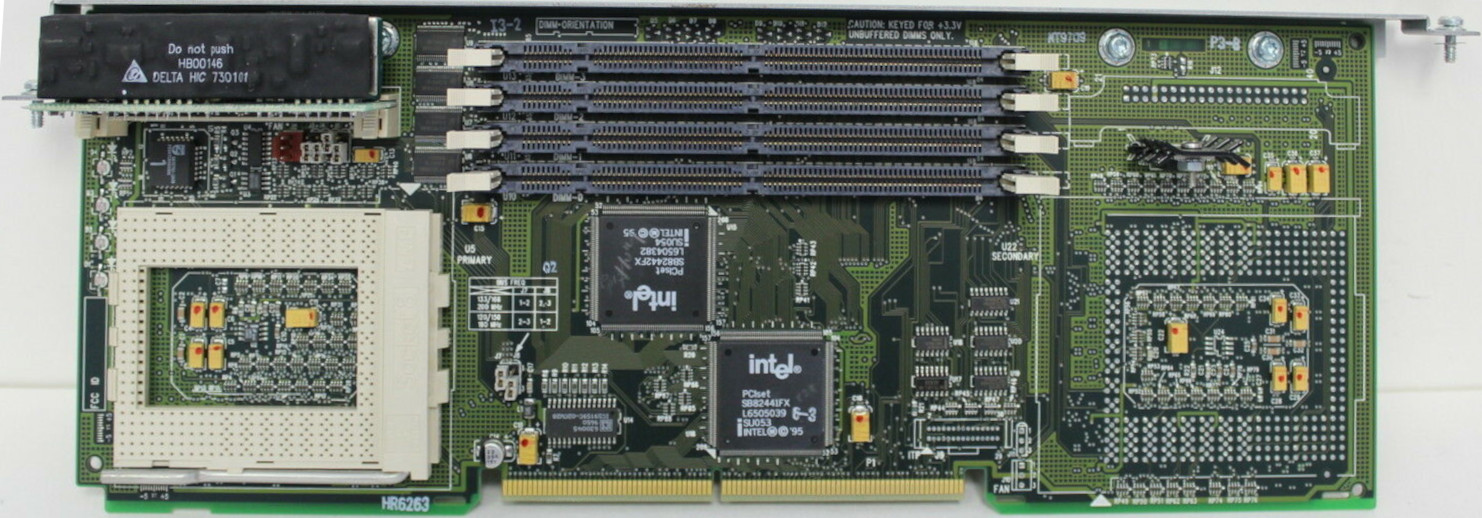

image4 Image 4 of 7

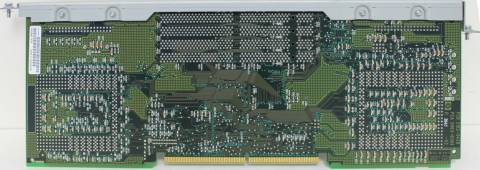

image5 Image 5 of 7 (Computer Retro)

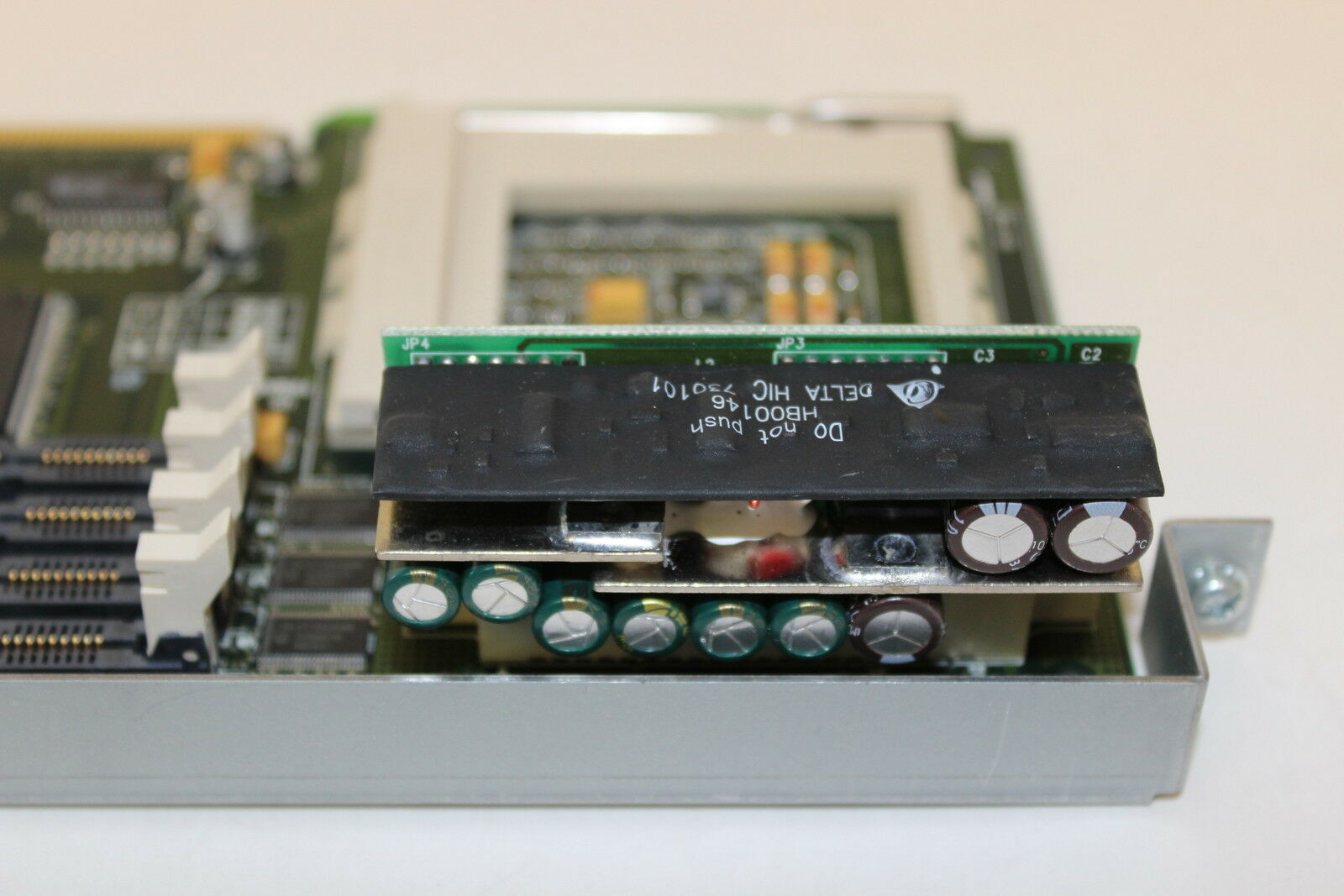

image6 Image 6 of 7

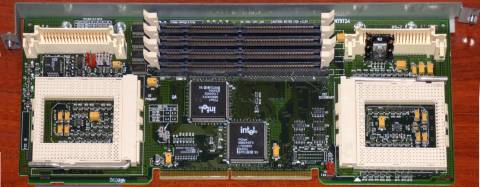

image7 Image 7 of 7 (Computer Retro)
