HP MS200 Series (AMD) system board
Logs
chipChipset
cpuSocket
Socket AM2 (mPGA940)
speedFSB speed
Empty
moboForm factor
OEM / Proprietary
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
200-pin DDR2 SO-DIMM
pwrPSU connector
OEM/Proprietary
tag Also known as
  • HP Caprirona
  • HP 533328-001
  • HP MS206/MS208/MS215fr/MS215cn
  • Quanta DA0ZN1MB6C
connI/O ports
1x
LVDS
1x
RJ-11 modem
1x
RJ-45 LAN
4x
SATA II
1x
SmartCard Reader
6x
USB 2.0
1x
VGA
cardExpansion slots
Empty
notes Notes

Manufactured by Quanta for HP

Has Realtek PCIe/Gbit LAN adapter but unknown model

Last updated 2025-07-06T18:04:36Z
Board info score is 7.8/10
bios 1 BIOS file available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
4.0 Release 6.0
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

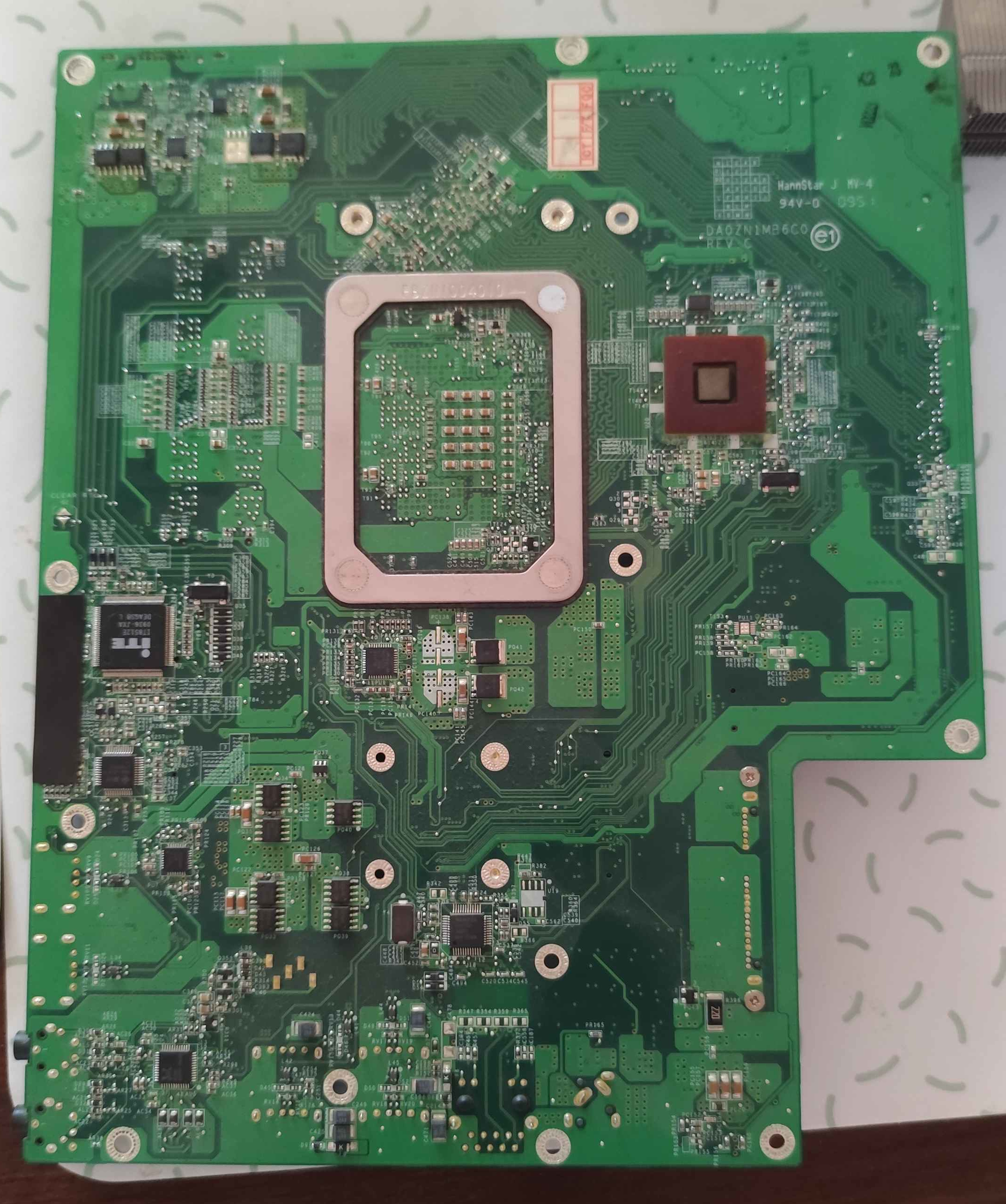

image1 Image 1 of 2 (Benjamin Aviador)

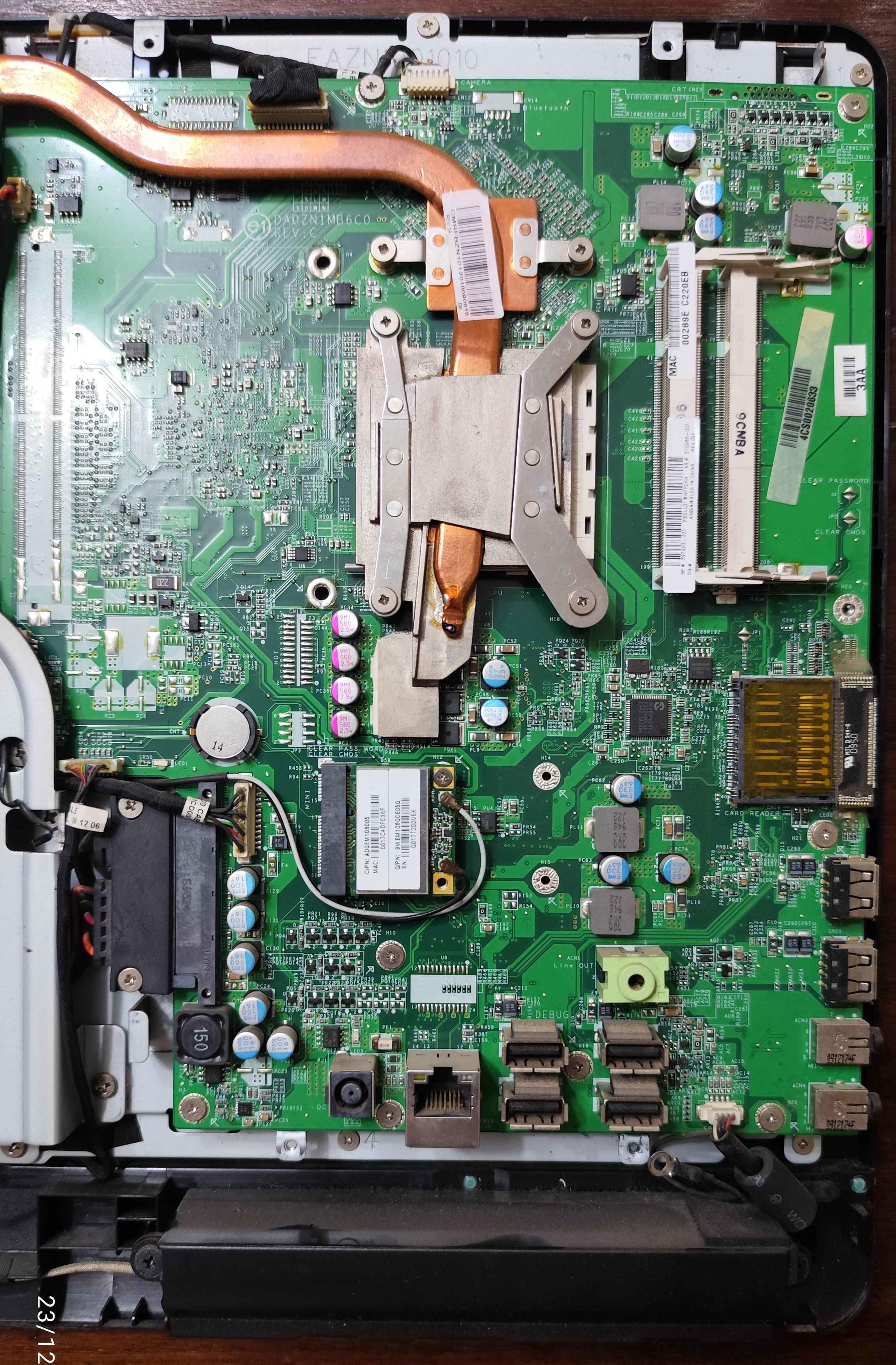

image2 Image 2 of 2 (Benjamin Aviador)
