HP 436526-001
Logs
Chipset
Socket
FSB speeds 1066MHz1333MHz
Form factorOEM / Proprietary
DimensionsEmpty
Max VRAM size16MB
Cache
None/Integrated in the CPU
Max RAM size
64GB
RAM type DDR2 FB-DIMM
PSU connector
Multi CPU support2 CPUs
Also known as
- HP ProLiant DL380 G5 System board
I/O ports1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
3x
RJ-45 LAN
1x
Serial
5x
USB 2.0
1x
VGA
Expansion slots2x
PCIe x8
Notes
Supports external cache up to 8192 kB
Riser card provides 1 PCIe 8x and 2 PCIe 16x slots.
Last updated 2024-12-31T13:31:19Z
Board info score is 7.6/10
Chips
-> Chipset part
-> Network
-> Super I/O
-> Video
CPU family support
0 BIOS files available
2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
2.4MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs

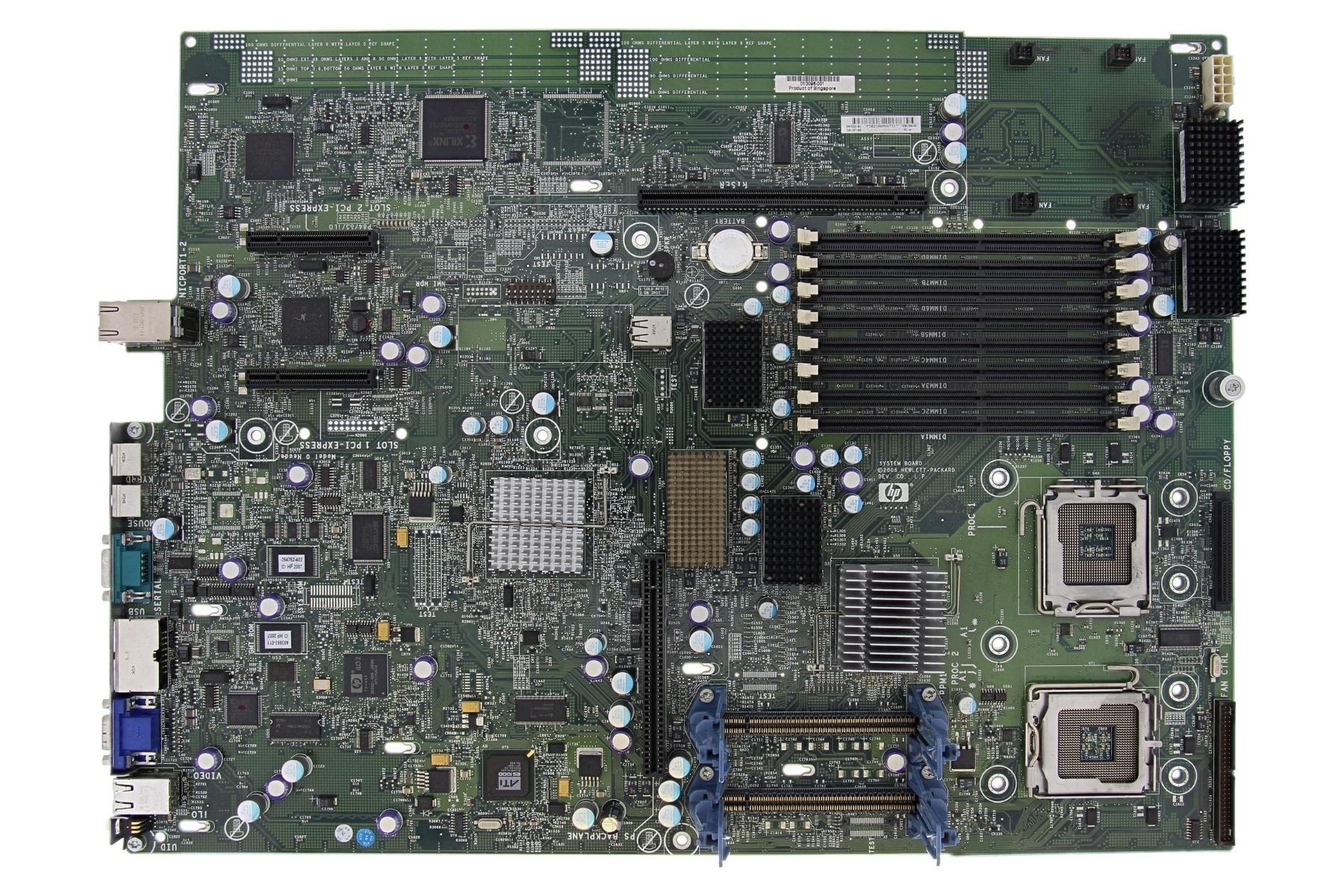

Image 1 of 1
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
