Hitex Automation HICO486-A3
Logs
chipChipset
cpuSocket
Elan SC4xx (BGA292)
speedFSB speed
33MHz
moboForm factor
PC 104 (max 96 × 90 mm)
dimDimensions
96 x 90 mm
ramMax VRAM size
1MB
chipCache
None/Integrated in the CPU
ramMax RAM size
Empty
ramRAM type
EDO
pwrPSU connector
Empty
connI/O ports
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
cardExpansion slots
1x
PC/104
Last updated 2025-10-01T15:44:20Z
Board info score is 7.3/10
chip Chips
-> Chipset part
AMD SC410 (Elan)
-> Super I/O
SMSC/SMC FDC37C932
-> Video
CHIPS and Technologies F65550 (65550)
cpufam CPU family support
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
07/23/1998-SC400-37C93X-2C4S0HF0C-00
Note
Core version
4.51PG
BIOS version
Logs
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-03-21
File
Logs

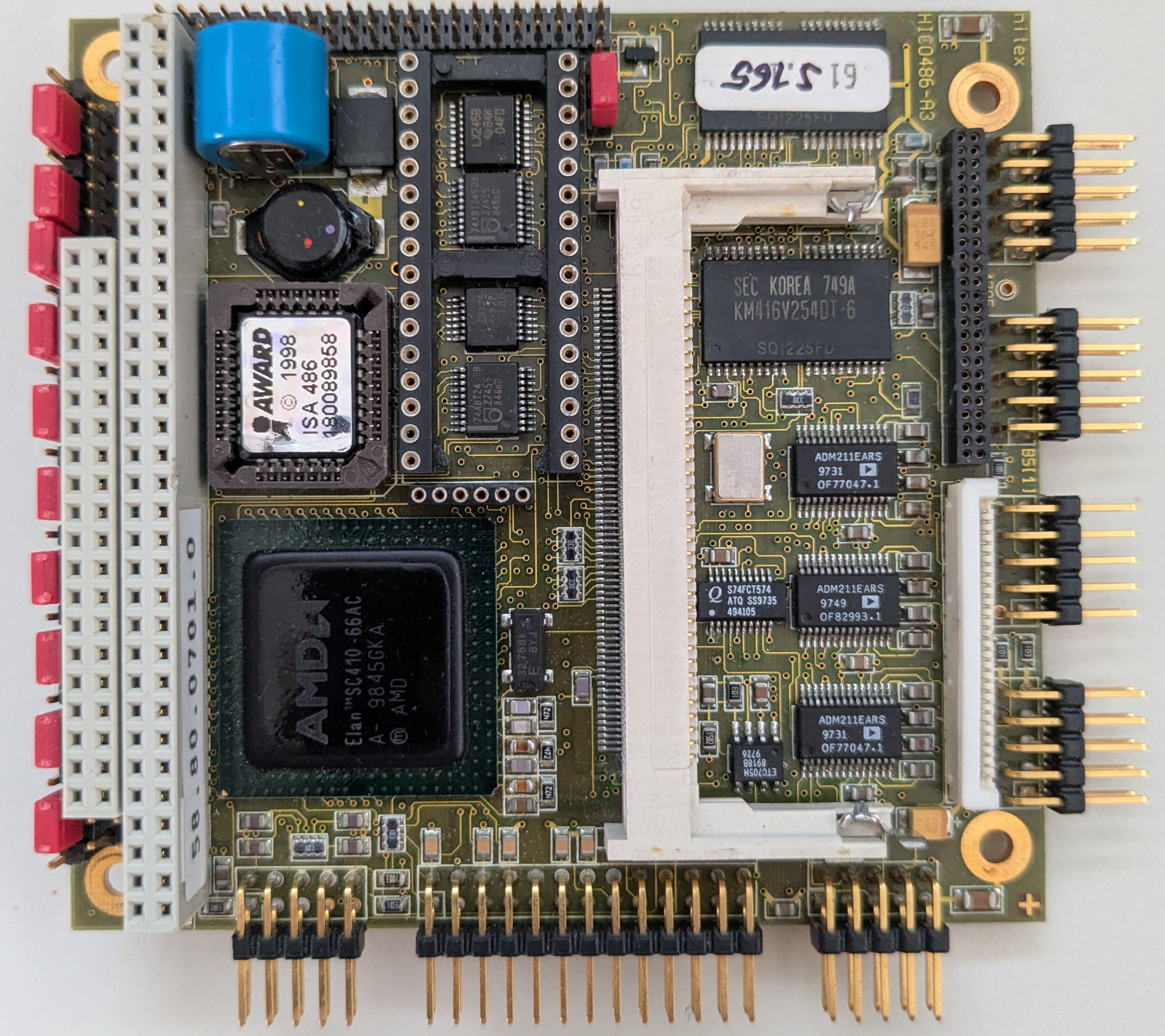

image1 Image 1 of 2 (ronnyroy)

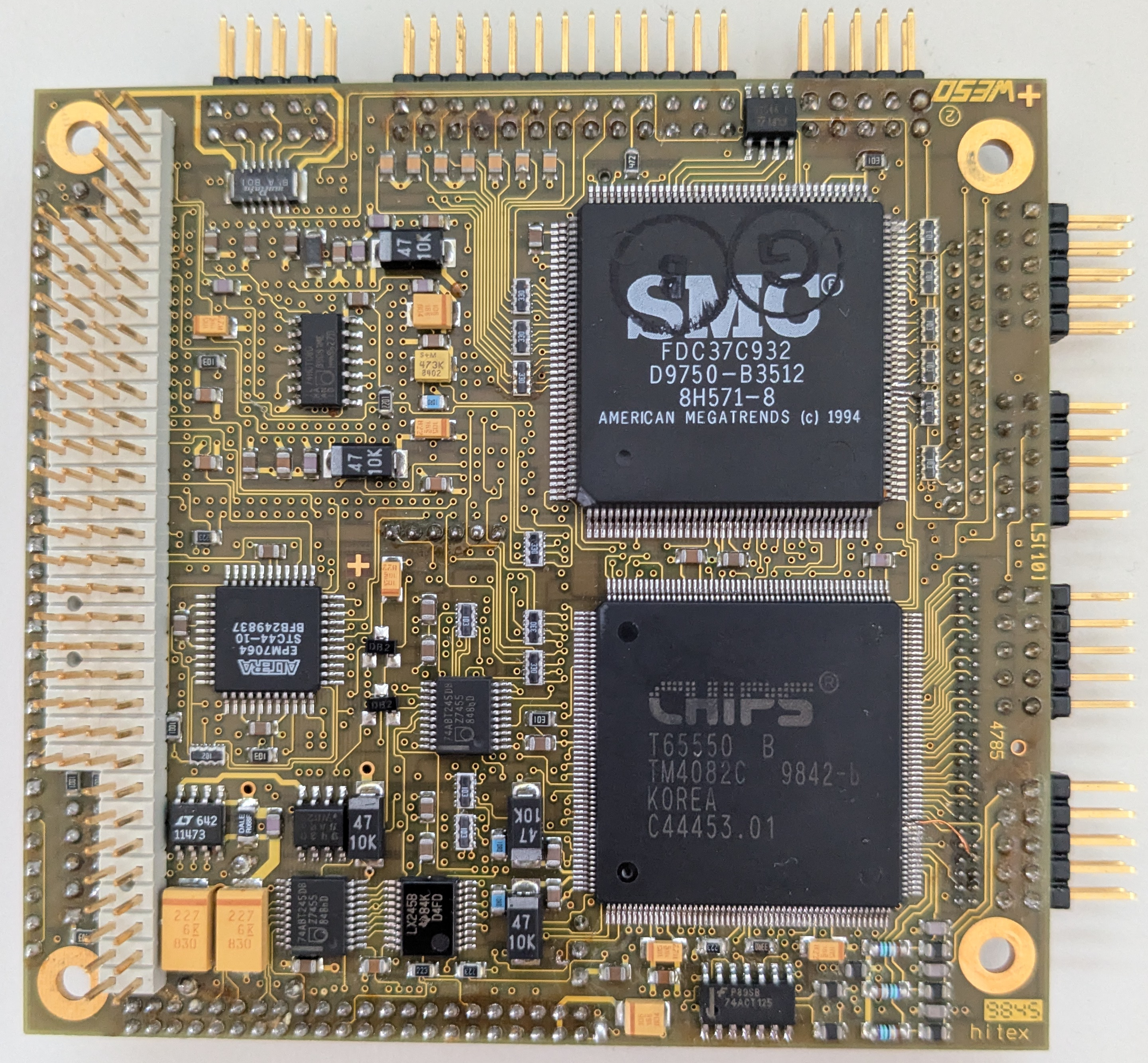

image2 Image 2 of 2 (ronnyroy)
