GuoShuo G689E1.1 (HM55)
Chipset
Socket
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
128GB
RAM types DDR4 UDIMMDDR4 UDIMM ECC
PSU connector
Also known as
- Soyo SY-X99E D4-GS
I/O ports1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
3x
SATA II
8x
USB 2.0
2x
USB 3.0
Expansion slots1x
M.2 (E key)
2x
M.2 (M key)
1x
PCIe x1
1x
PCIe x16
Known issues
- Falsely advertised chipset
This motherboard uses a different chipset than the one advertised by the vendor. In most cases, a lower tier chipset was used in order to save costs. It is likely that the board may not have the same levels of performance as one equipped with genuine parts.
Beware that issues regarding BIOS and driver compatibility may arise as well, so double check with any hardware reporting software what chipset is actually installed on the board before proceeding any further.
Last updated 2025-11-26T17:59:00Z
Board info score is 7.3/10
Chips
-> Chipset part
-> Audio
-> Super I/O
CPU family support
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
raw dump from working board
Core version
UEFI
BIOS version
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Image 1 of 3 (Soyo)

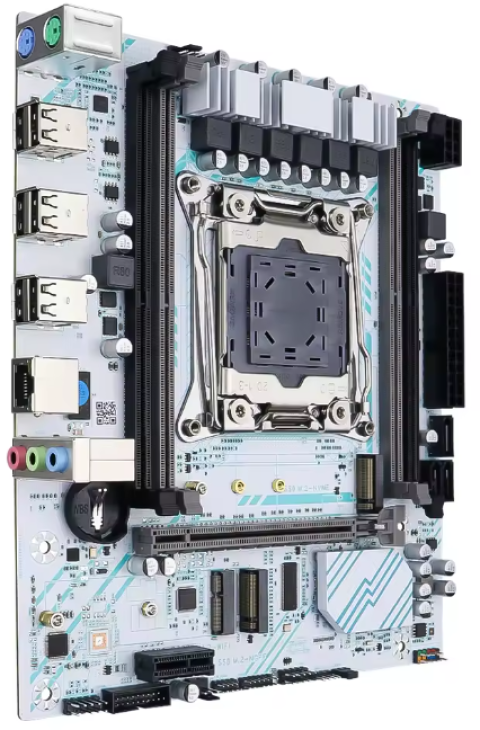

Image 2 of 3 (Soyo)
Image 3 of 3 (Soyo)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
