GuoShuo G608B Ver:1.0 (H87)
Chipset
Socket
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
Dimensions245mm x 190mm
Cache
None/Integrated in the CPU
Max RAM size
128GB
RAM types DDR4 UDIMMDDR4 UDIMM ECC
PSU connector
Also known as
- Huananzhi X99-QD4 (Old Version)
I/O ports1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
6x
SATA III
8x
USB 2.0
4x
USB 3.0
Expansion slots2x
M.2 (M key)
1x
PCIe x1
1x
PCIe x16
1x
PCIe x4
Known issues
- Falsely advertised chipset
This motherboard uses a different chipset than the one advertised by the vendor. In most cases, a lower tier chipset was used in order to save costs. It is likely that the board may not have the same levels of performance as one equipped with genuine parts.
Beware that issues regarding BIOS and driver compatibility may arise as well, so double check with any hardware reporting software what chipset is actually installed on the board before proceeding any further.
Last updated 2025-11-25T21:33:56Z
Board info score is 8.4/10
Chips
2 BIOS files available
AMI - 2 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-091015-Chipset-0AAAA000
Note
(X99-QD4 V1.0) X99-QD4
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-091015-Chipset-0AAAA000
Note
(X99-QD4 V1.0) H81X9902
Core version
UEFI
BIOS version
Logs
No drivers available
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-06
File
Logs
Chip
Release date
2014-05
File
Logs
Chip
Release date
2020-01
File
Logs

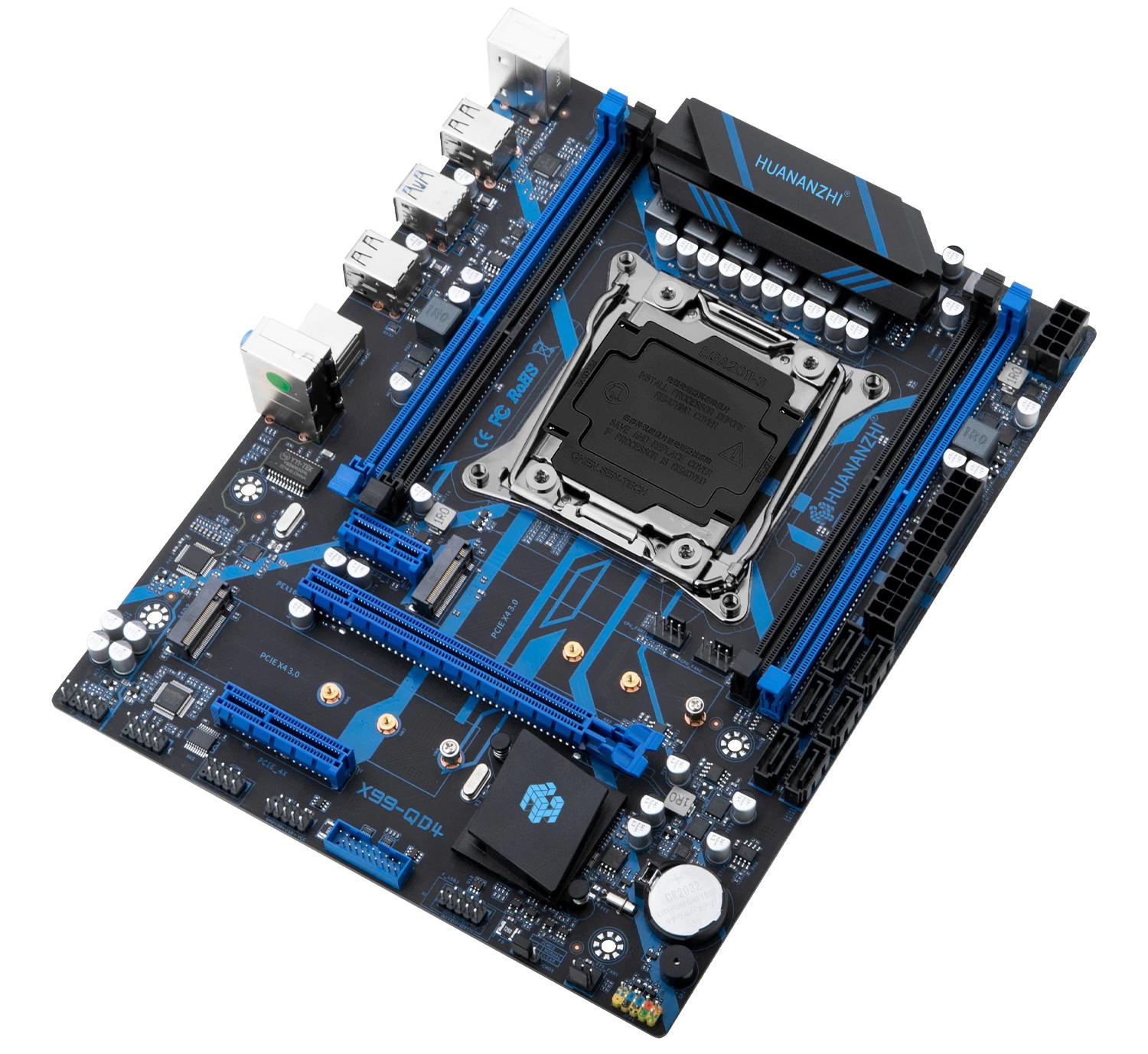

Image 1 of 4 (Huananzhi)

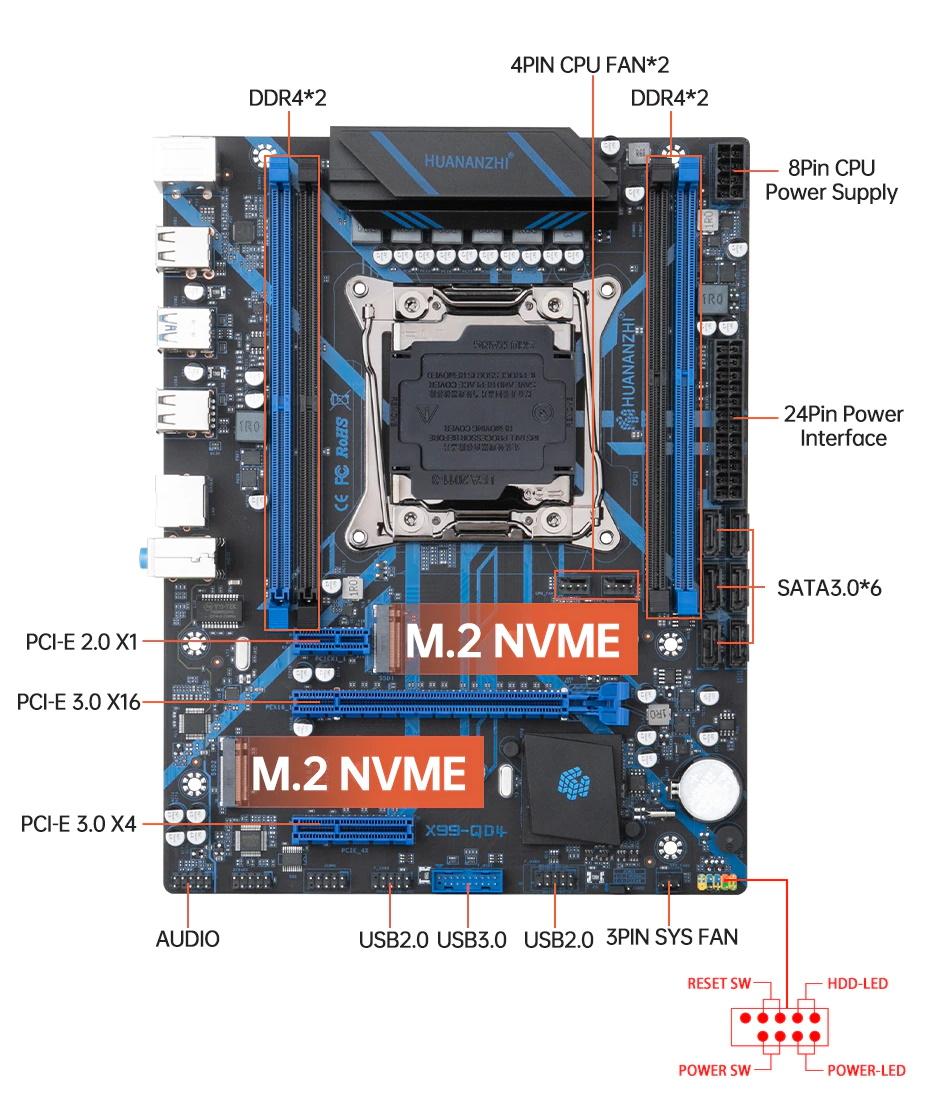

Image 2 of 4 (Huananzhi)

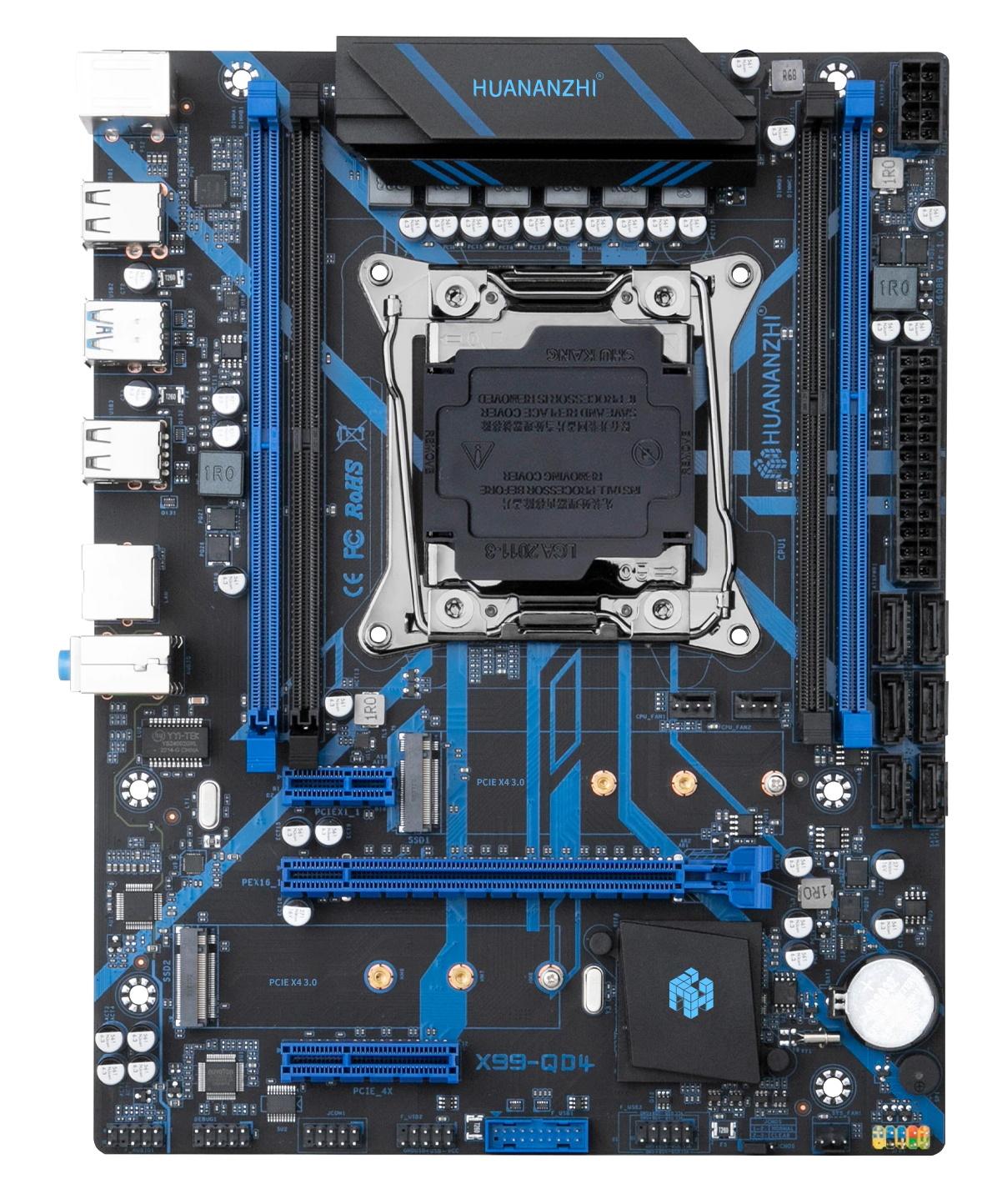

Image 3 of 4 (Huananzhi)

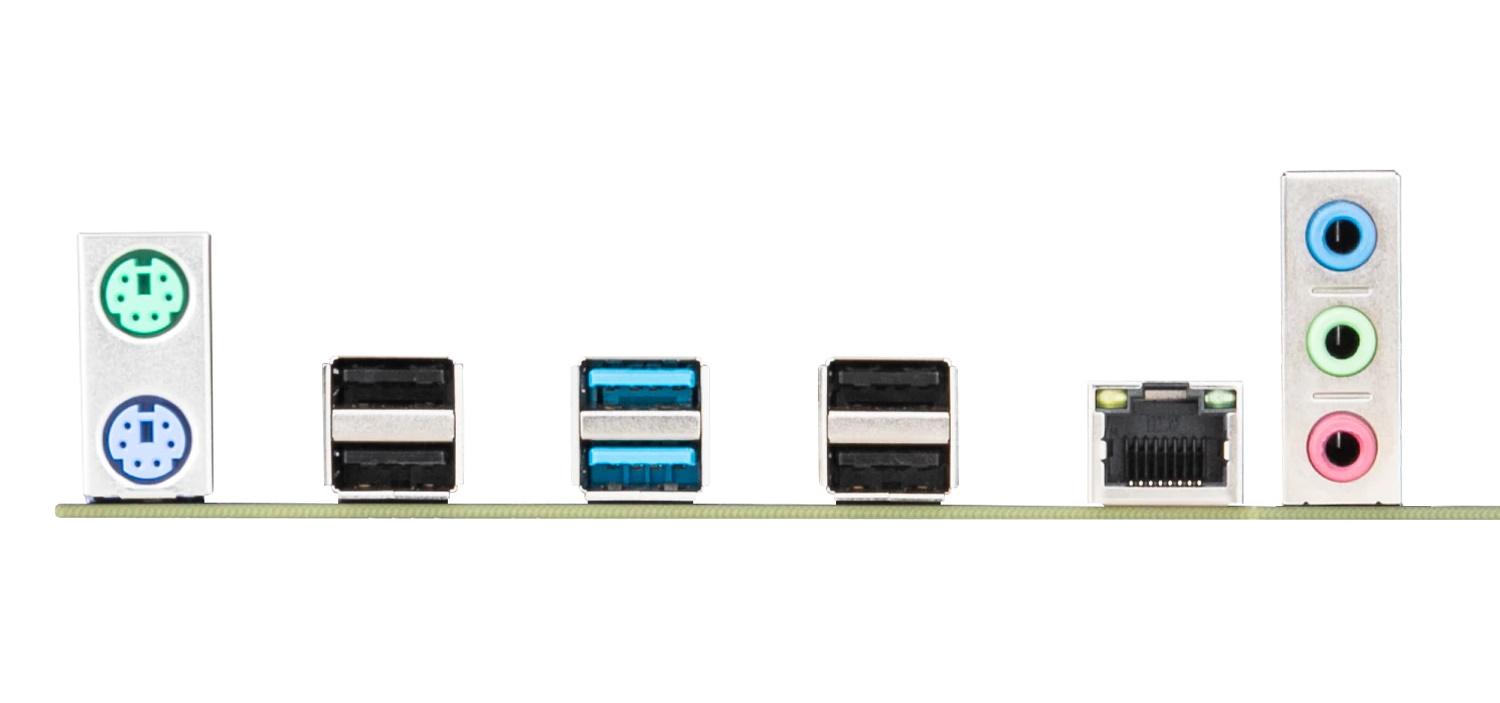

Image 4 of 4 (Huananzhi)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
