GuoShuo G389H0.1
Logs
Chipset
Empty
Socket
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
32GB
RAM types DDR3 UDIMMDDR3 UDIMM ECC
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
2x
SATA II
2x
SATA III
10x
USB 2.0
Expansion slots1x
M.2 (M key)
1x
PCIe x1
1x
PCIe x16
Known issues
- Falsely advertised chipset
This motherboard uses a different chipset than the one advertised by the vendor. In most cases, a lower tier chipset was used in order to save costs. It is likely that the board may not have the same levels of performance as one equipped with genuine parts.
Beware that issues regarding BIOS and driver compatibility may arise as well, so double check with any hardware reporting software what chipset is actually installed on the board before proceeding any further.
Notes
Version with all Black Sata ports exist
Last updated 2025-09-08T16:48:59Z
Board info score is 5.2/10
Chips
0 BIOS files available
No drivers available
No board documents available

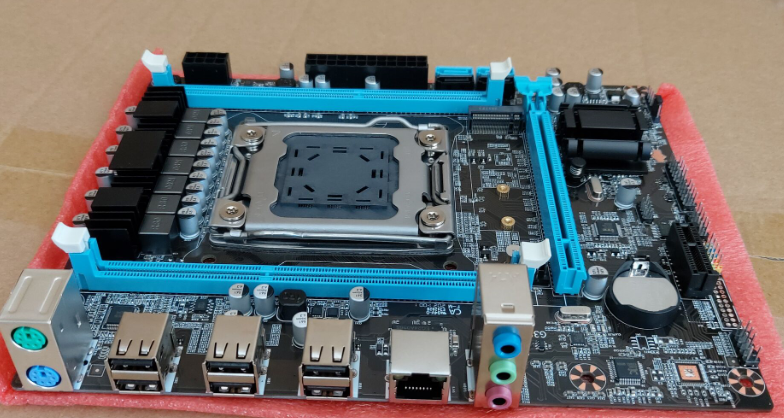

Image 1 of 2 (GuoShuo)

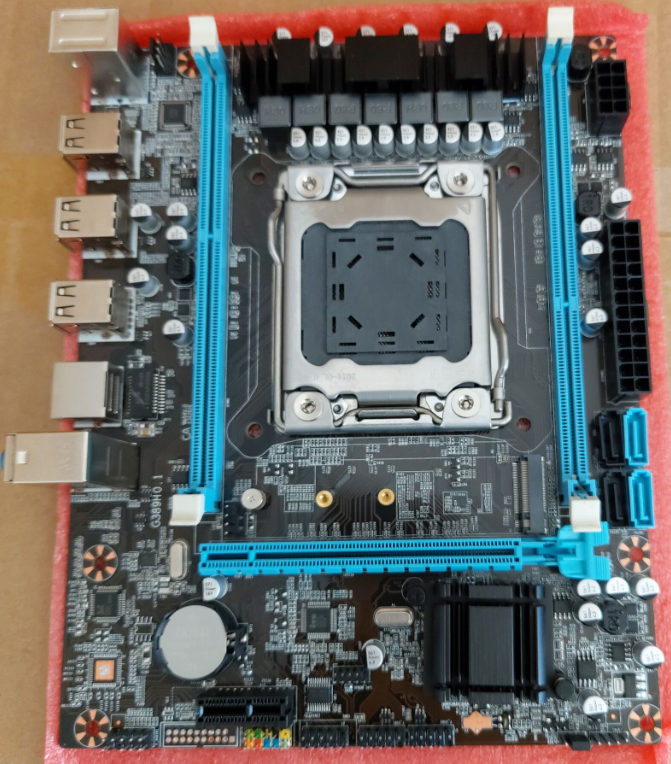

Image 2 of 2 (GuoShuo)
