GuoShuo G361B 1.0 (B85)
Logs
chipChipset
cpuSocket
Socket H3 (LGA1150)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
12V EPS Connector (24-pin EPS) ATX EPS connector 12v (8-pin EPS)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
HDMI
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
2x
SATA II
2x
SATA III
1x
Serial
8x
USB 2.0
4x
USB 3.0
1x
VGA
cardExpansion slots
1x
M.2 (M key)
1x
PCIe x1
1x
PCIe x16
Last updated 2025-11-25T20:56:31Z
Board info score is 6.9/10
chip Chips
-> Chipset part
Intel DH82B85 (PCH)
cpufam CPU family support
Empty
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-060914-Chipset-0AAAA000
Note
Huananzhi B85
Core version
UEFI
BIOS version
Logs
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
2013-06
File
Logs
Chip
Release date
2014-05
File
Logs
Chip
Release date
2020-01
File
Logs

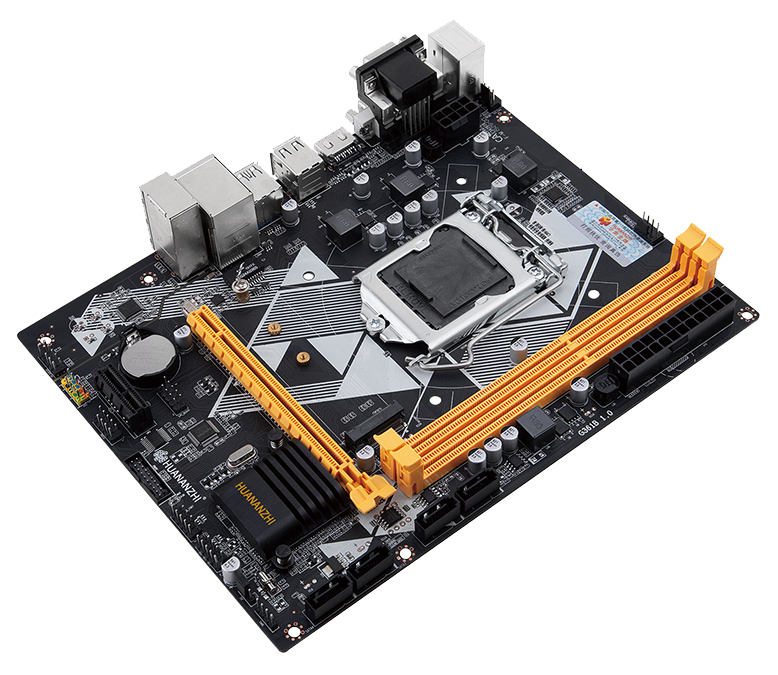

image1 Image 1 of 4 (Huananzhi)

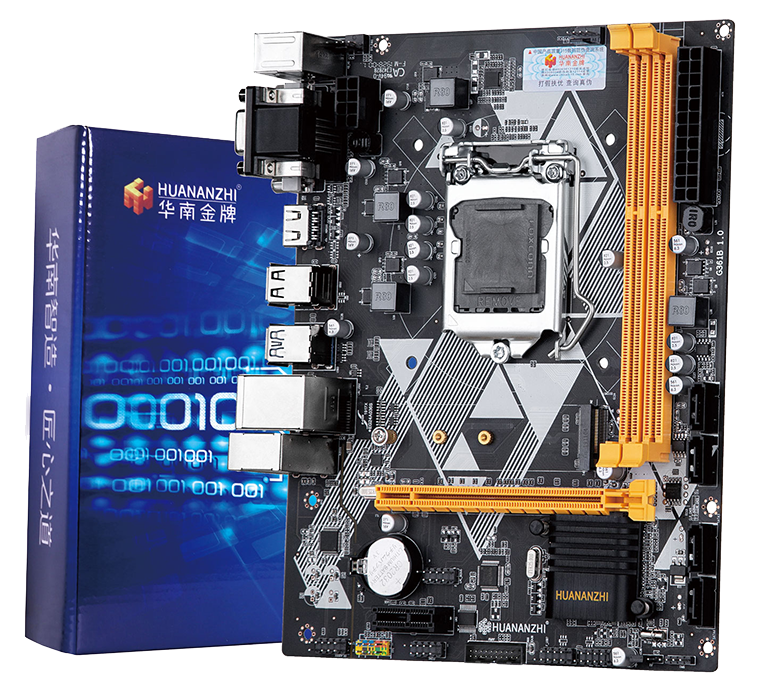

image2 Image 2 of 4 (Huananzhi)

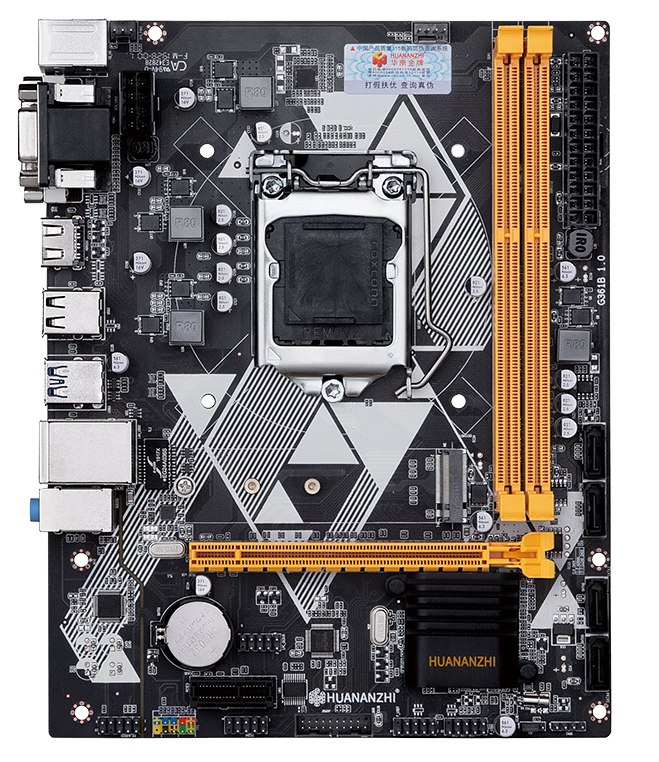

image3 Image 3 of 4 (Huananzhi)

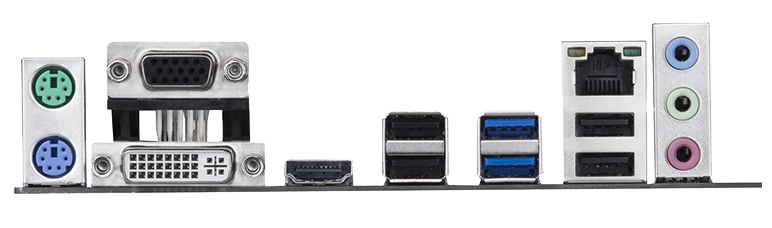

image4 Image 4 of 4 (Huananzhi)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
