GuoShuo G336K Ver3_0
Chipset
Socket
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
16GB
RAM type DDR3 UDIMM
PSU connector
Also known as
I/O ports1x
3.5mm Audio Combo
1x
HDMI
1x
RJ-45 LAN
4x
SATA II
8x
USB 2.0
2x
USB 3.0
1x
VGA
Expansion slots1x
PCIe x1
1x
PCIe x16 @ x8
Notes
Multiple different chipsets were used, mainly HM55, H55 and HM57
Last updated 2025-07-05T13:16:29Z
Board info score is 7.2/10
Chips
-> Chipset part
-> Audio
-> Network
CPU family support
Empty
2 BIOS files available
AMI - 2 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-000001-00101111-122921-LfdHvdImc-336ER005
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-062322-LfdHvdImc-336NR004
Note
Core version
080015
BIOS version
Logs
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
Name
Version
1.0
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
490.9KB
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

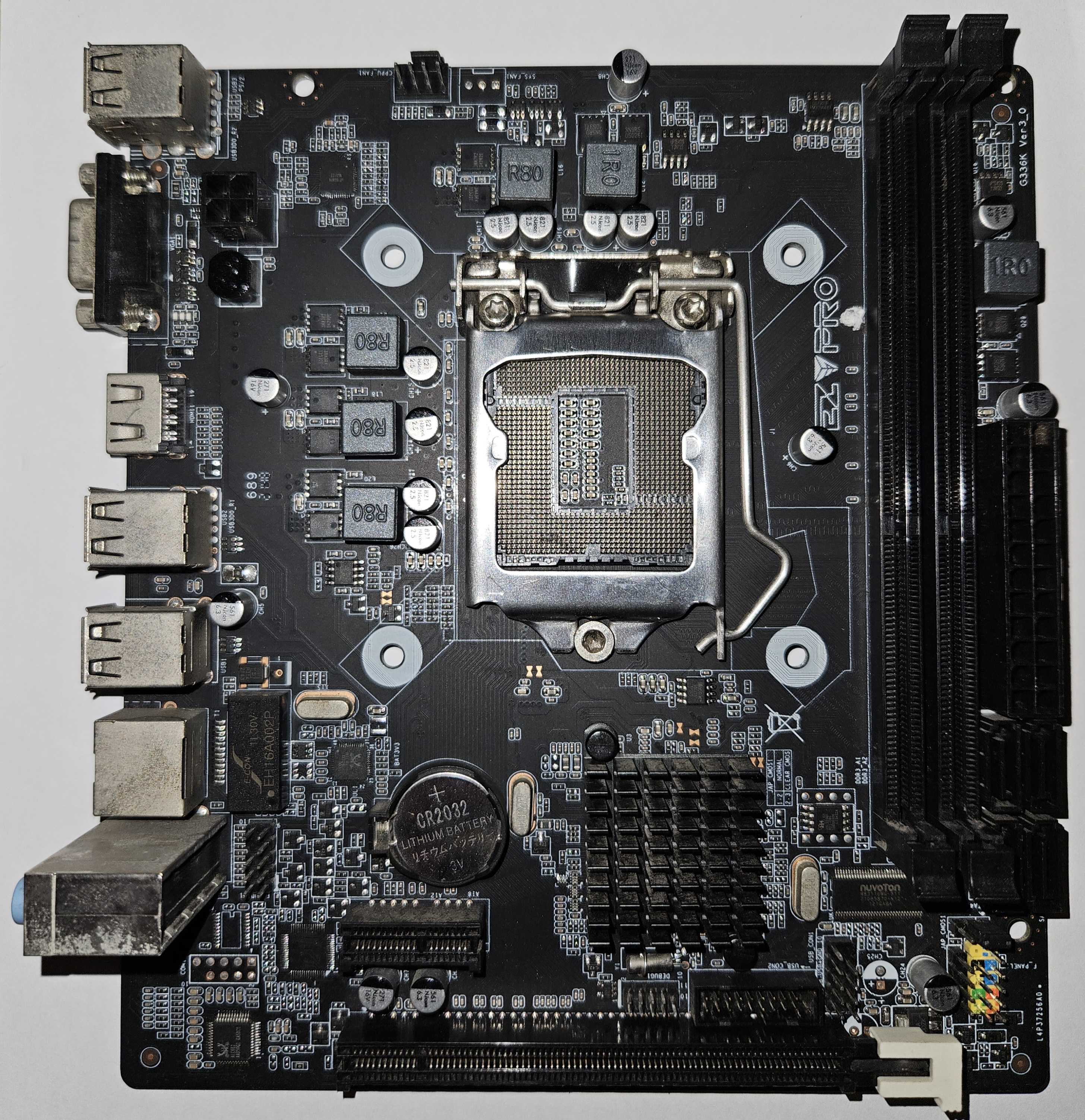

Image 1 of 4 (novacosmic00)

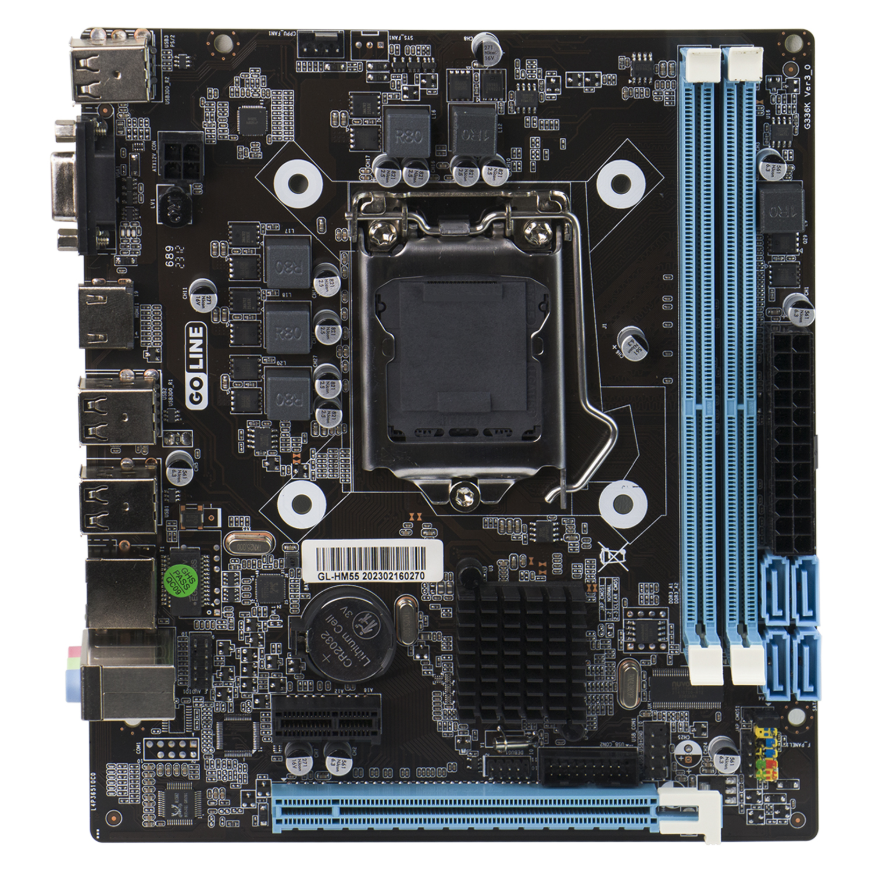

Image 2 of 4 (GOLINE)

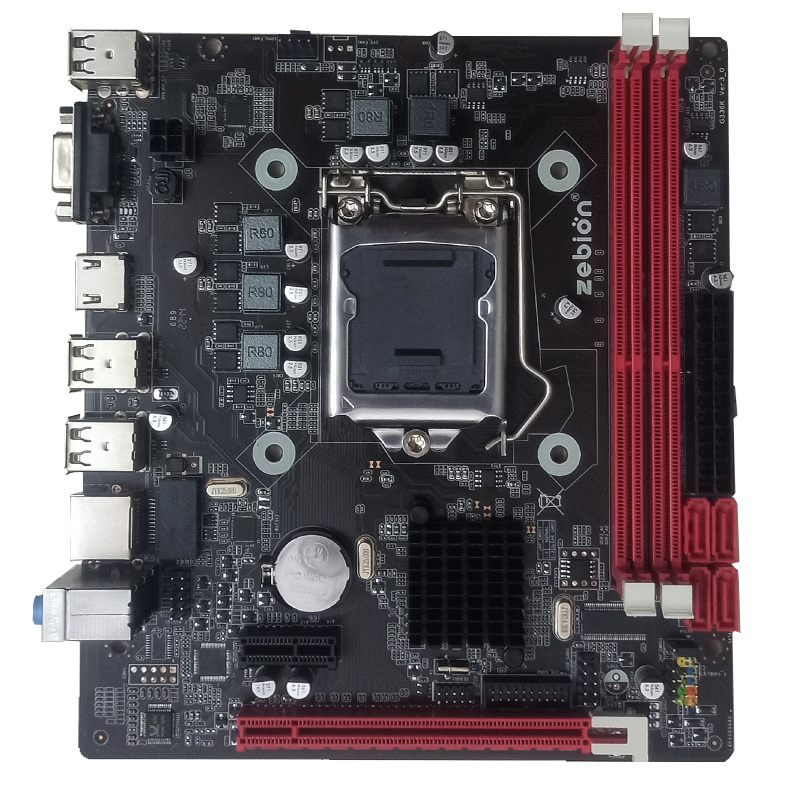

Image 3 of 4 (Zebion)

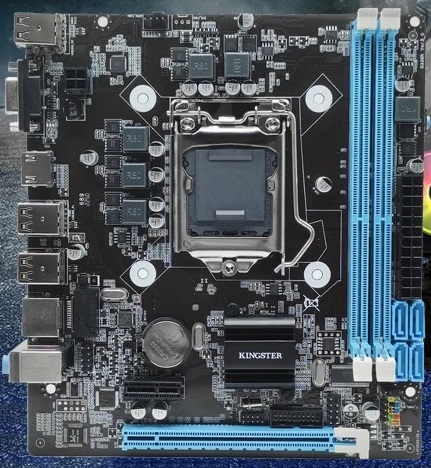

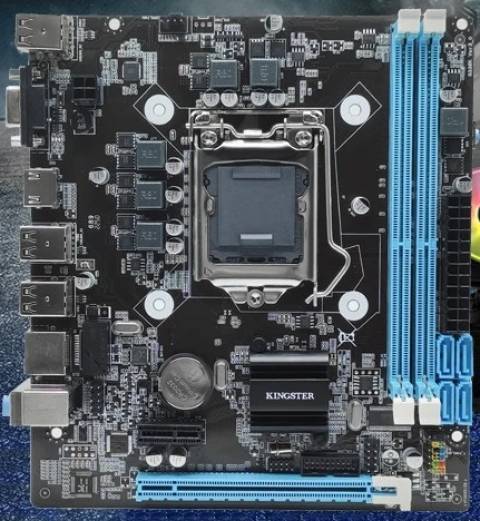

Image 4 of 4 (Kingster)
