GuoShuo G336K Ver1_2
Logs
chipChipset
cpuSocket
Socket H (LGA1156)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • GuoShuo TG-HM55
  • Enter E-H55 (G336K Ver1_2)
  • Unknown CYB-HM55-G336 (G336K Ver1_2)
  • SODIAL TG-HM55G336 (G336K Ver1_2)
  • Moczi TG-HM55G336 (G336K Ver1_2)
  • Brazil PC BPC-HM55-NT (G336K Ver1_2)
connI/O ports
1x
3.5mm Audio Combo
1x
HDMI
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
4x
SATA II
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
PCIe x1
1x
PCIe x16 @ x8
notes Notes

Multiple different chipsets were used, mainly HM55, H55 and HM57

Last updated 2025-09-08T18:24:42Z
Board info score is 5.7/10
chip Chips
-> Chipset part
Intel BD82HM55 (PCH)
-> Audio
Realtek ALC662 (High Definition Audio)
-> Network
Realtek RTL8105E (PCIe Fast Ethernet)
cpufam CPU family support
Empty
bios 0 BIOS files available
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
490.9KB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

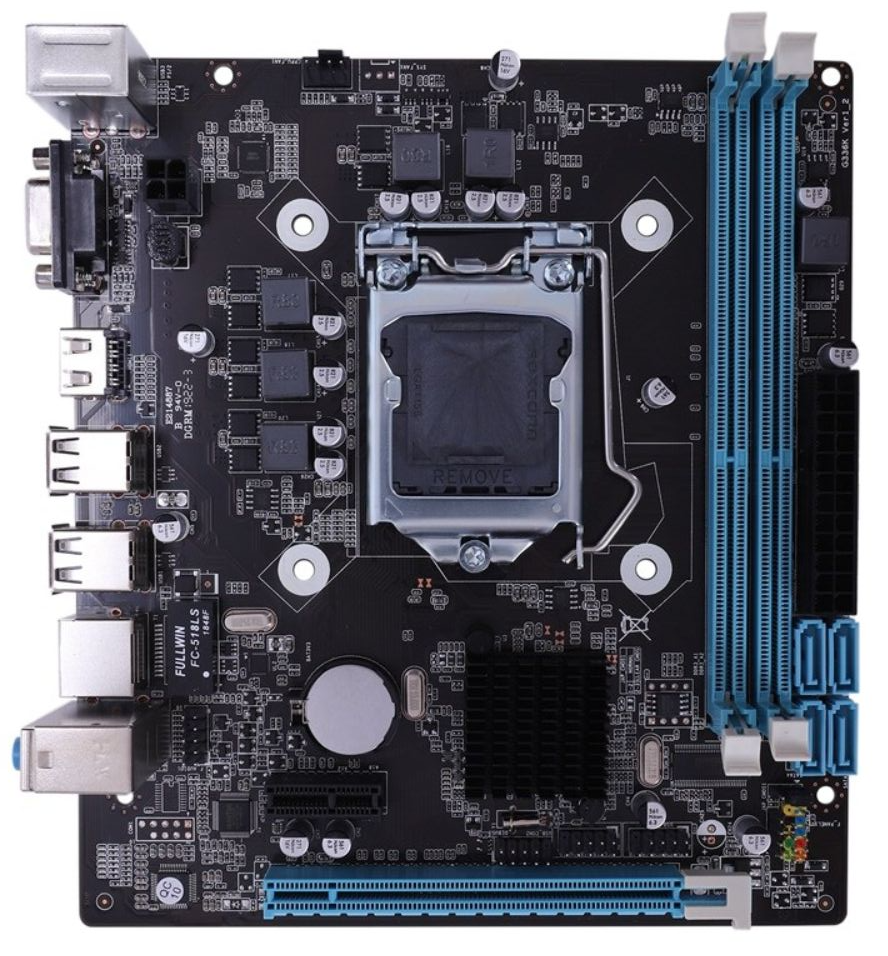

image1 Image 1 of 2 (Brazil PC)

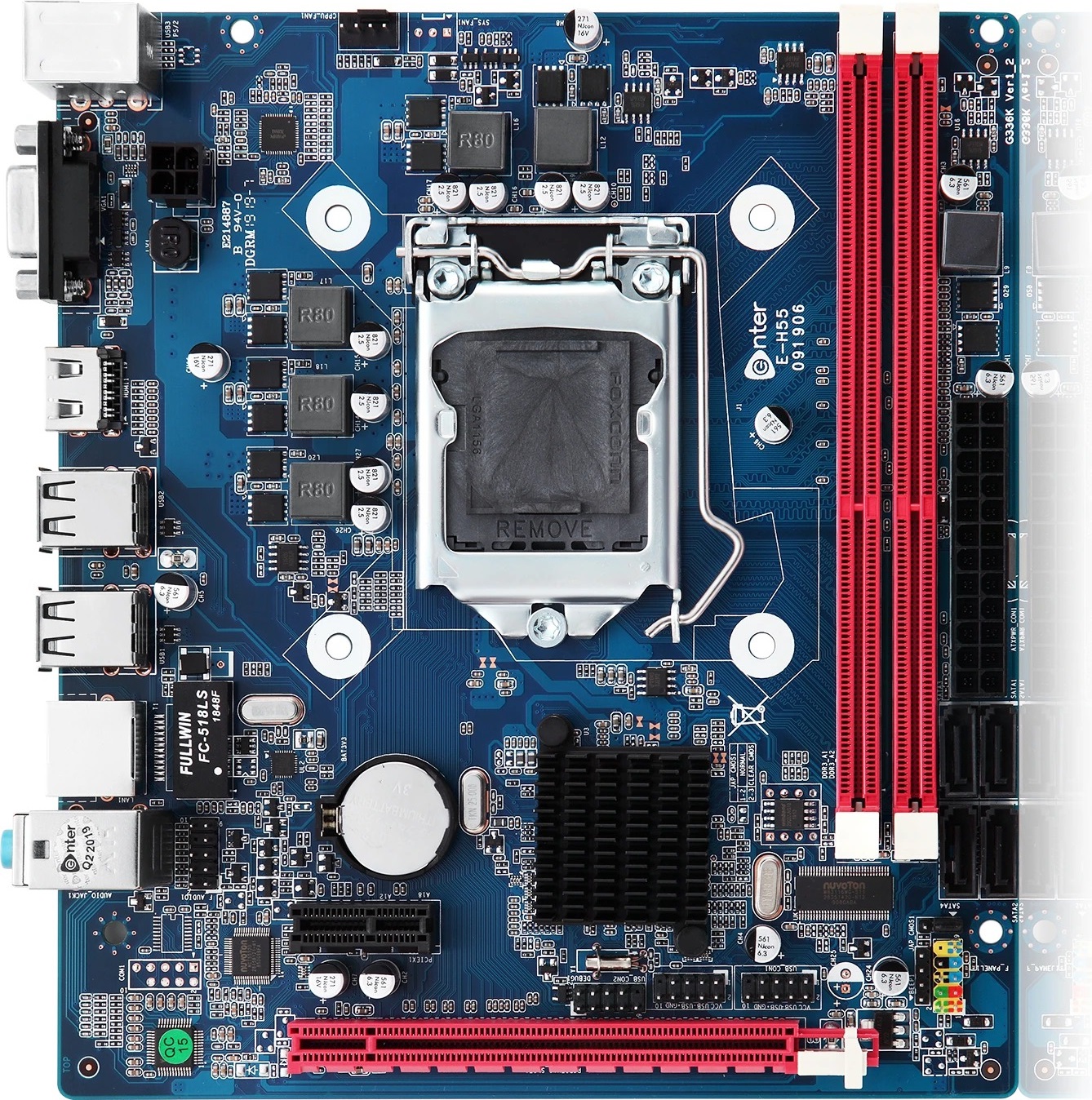

image2 Image 2 of 2 (Enter)
