GuoShuo G279T V7.1
Logs
chipChipset
cpuSocket
Socket R (LGA2011-0)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
128GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
4x
SATA II
2x
SATA III
1x
Toslink
10x
USB 2.0
4x
USB 3.0
cardExpansion slots
1x
M.2 (E key)
1x
M.2 (M key)
1x
PCIe x1
2x
PCIe x16
1x
PCIe x16 @ x4
1x
PCIe x4
wrench Known issues
  • Falsely advertised chipset

This motherboard uses a different chipset than the one advertised by the vendor. In most cases, a lower tier chipset was used in order to save costs. It is likely that the board may not have the same levels of performance as one equipped with genuine parts.

Beware that issues regarding BIOS and driver compatibility may arise as well, so double check with any hardware reporting software what chipset is actually installed on the board before proceeding any further.

Last updated 2025-11-25T22:13:17Z
Board info score is 8.3/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-060914-Chipset-0AAAA000
Note
271K00340
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-03-31
File
Logs
Chip
Release date
File
Logs

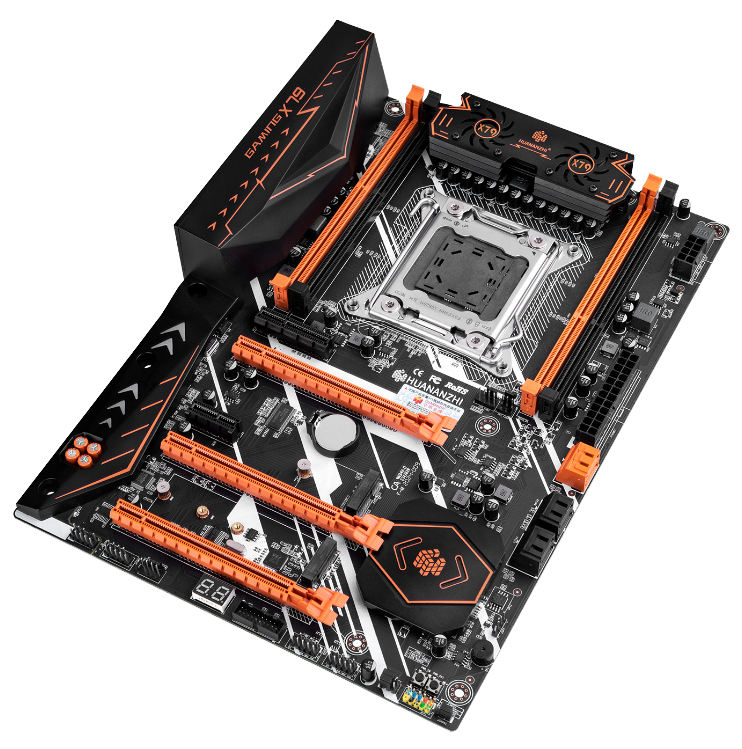

image1 Image 1 of 4 (Huananzhi)

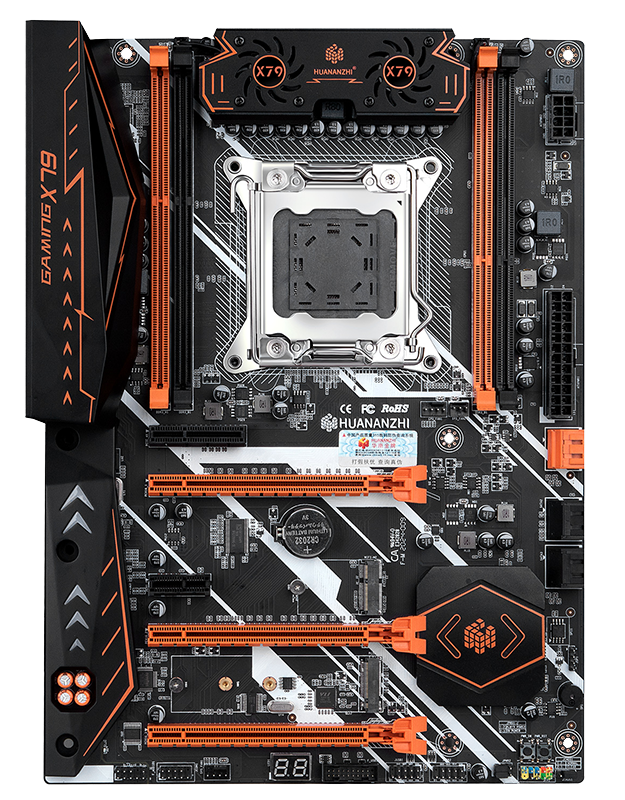

image2 Image 2 of 4 (Huananzhi)

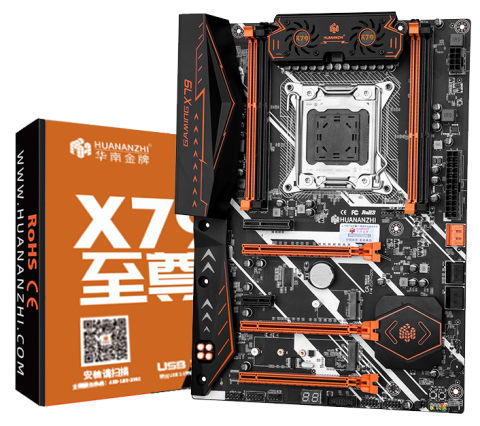

image3 Image 3 of 4 (Huananzhi)

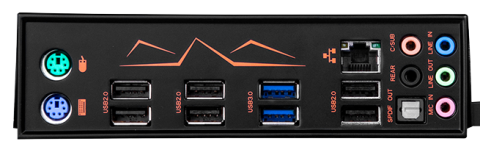

image4 Image 4 of 4 (Huananzhi)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
