Gigabyte MW31-SP0 (rev. 1.0)
Logs
chipChipset
cpuSocket
Socket H4 (LGA1151)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
64GB
ramRAM types
DDR4 UDIMMDDR4 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
DisplayPort
1x
HDMI
1x
PS/2 KB+MS Combo
2x
RJ-45 LAN
8x
SATA III
2x
Serial
1x
Toslink
7x
USB 2.0
6x
USB 3.0
cardExpansion slots
2x
32-bit PCI
1x
M.2 (M key)
2x
PCIe x16
1x
PCIe x4
notes Notes

Has a proprietary PCI Express x4 slot for Mezzanine Card

Last updated 2025-09-26T14:40:49Z
Board info score is 8.3/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2021-12-31
File
Logs
Chip
Release date
2008-07-24
File
Logs
Chip
Release date
2010-08-03
File
Logs
Chip
Release date
2015-05-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2021-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-12
File
Logs
Chip
Release date
2022-01
File
Logs

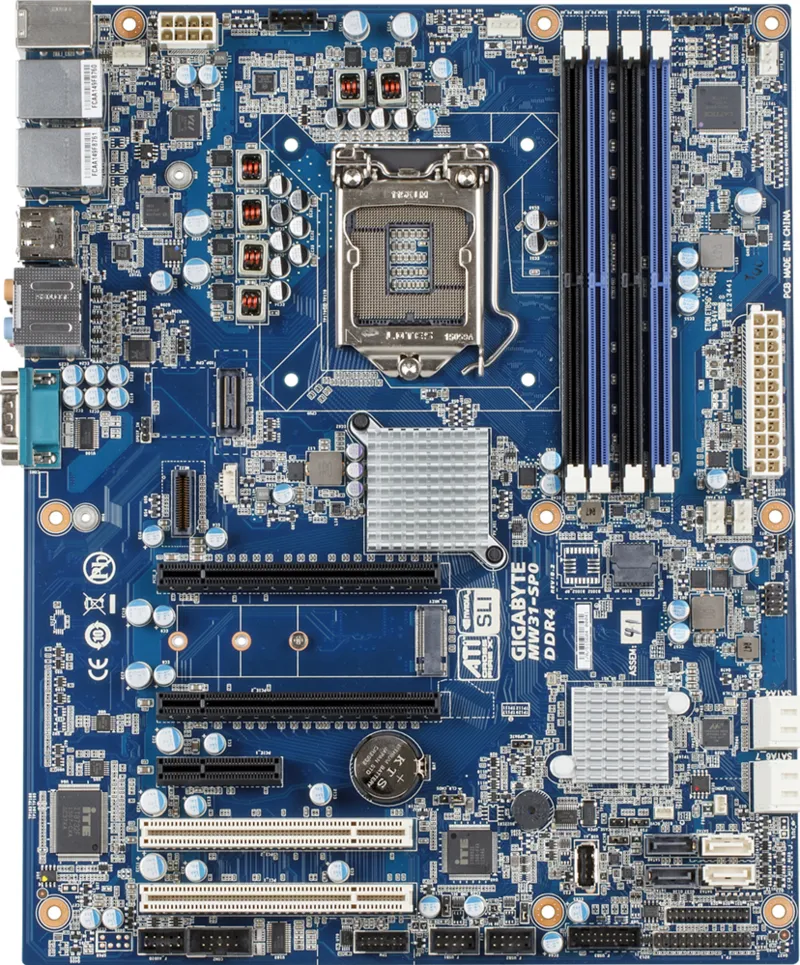

image1 Image 1 of 3 (Gigabyte)

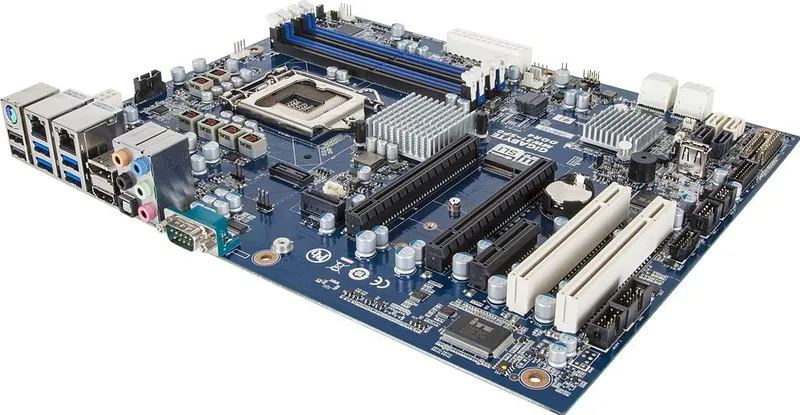

image2 Image 2 of 3 (Gigabyte)
image3 Image 3 of 3 (Gigabyte)
