Gigabyte GA-Z97X-SLI (rev. 1.0)
Chipset
Socket
FSB speed Empty
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 190mm
Max VRAM size512MB
Cache
None/Integrated in the CPU
Max RAM size
32GB
RAM type DDR3 UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
DVI
1x
HDMI
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
6x
SATA III
1x
Serial
8x
USB 2.0
6x
USB 3.0
1x
VGA
Expansion slots2x
32-bit PCI
1x
M.2 (M key)
3x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x8
Notes
-
Supports 2-way AMD CrossFire.
-
Has UEFI DualBIOS (two 64Mbit flash chips).
Last updated 2025-05-15T18:50:36Z
Board info score is 8.6/10
Chips
-> Chipset part
-> Audio
-> Bridge Interface
-> Signal transmitter/receiver
-> Super I/O
-> Video
8 BIOS files available
AMI - 8 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
No drivers available
2 board documents available
Chip
Release date
File
Logs
Chip
Release date
2012-09-25
File
Logs
Family
Release date
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-06-03
File
Logs

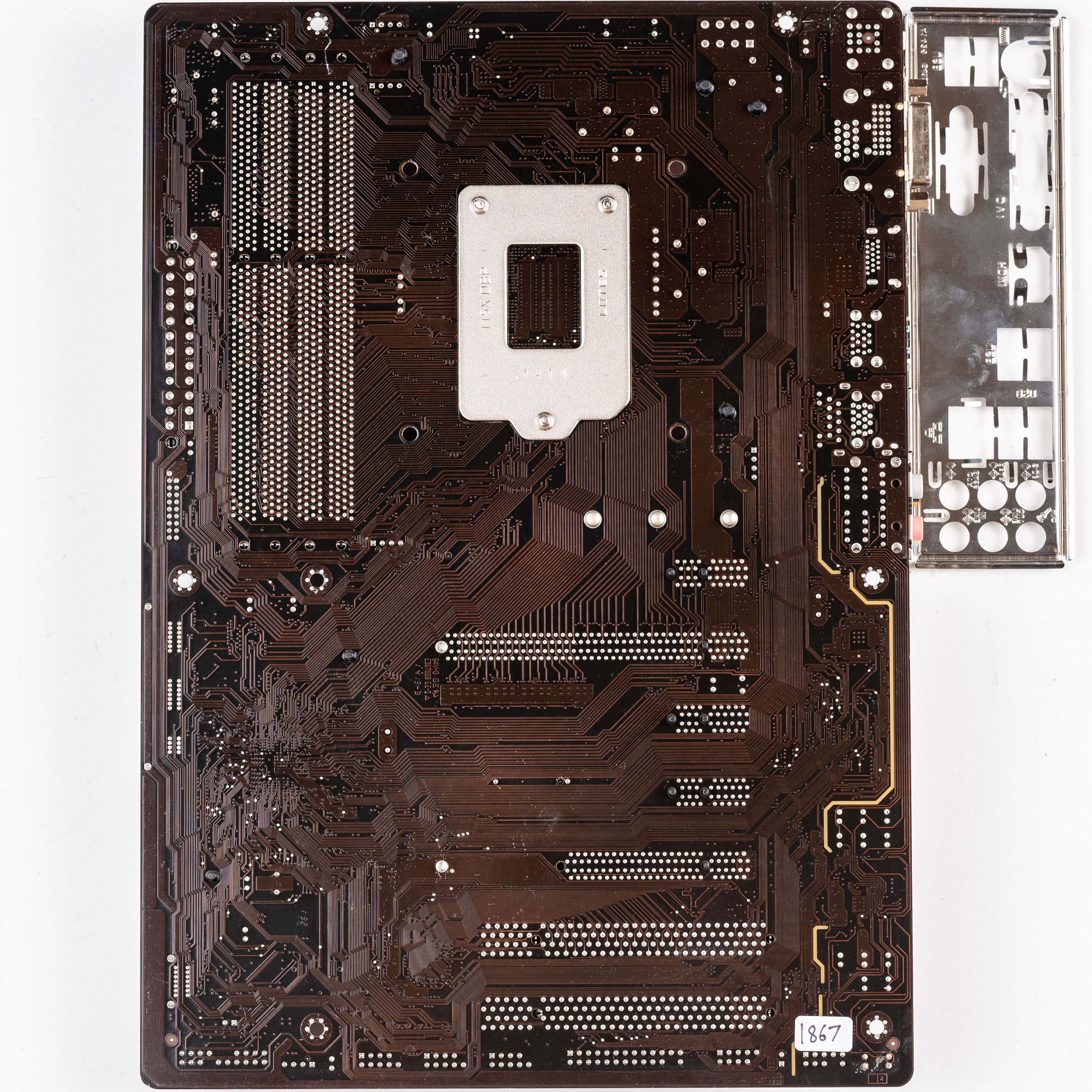

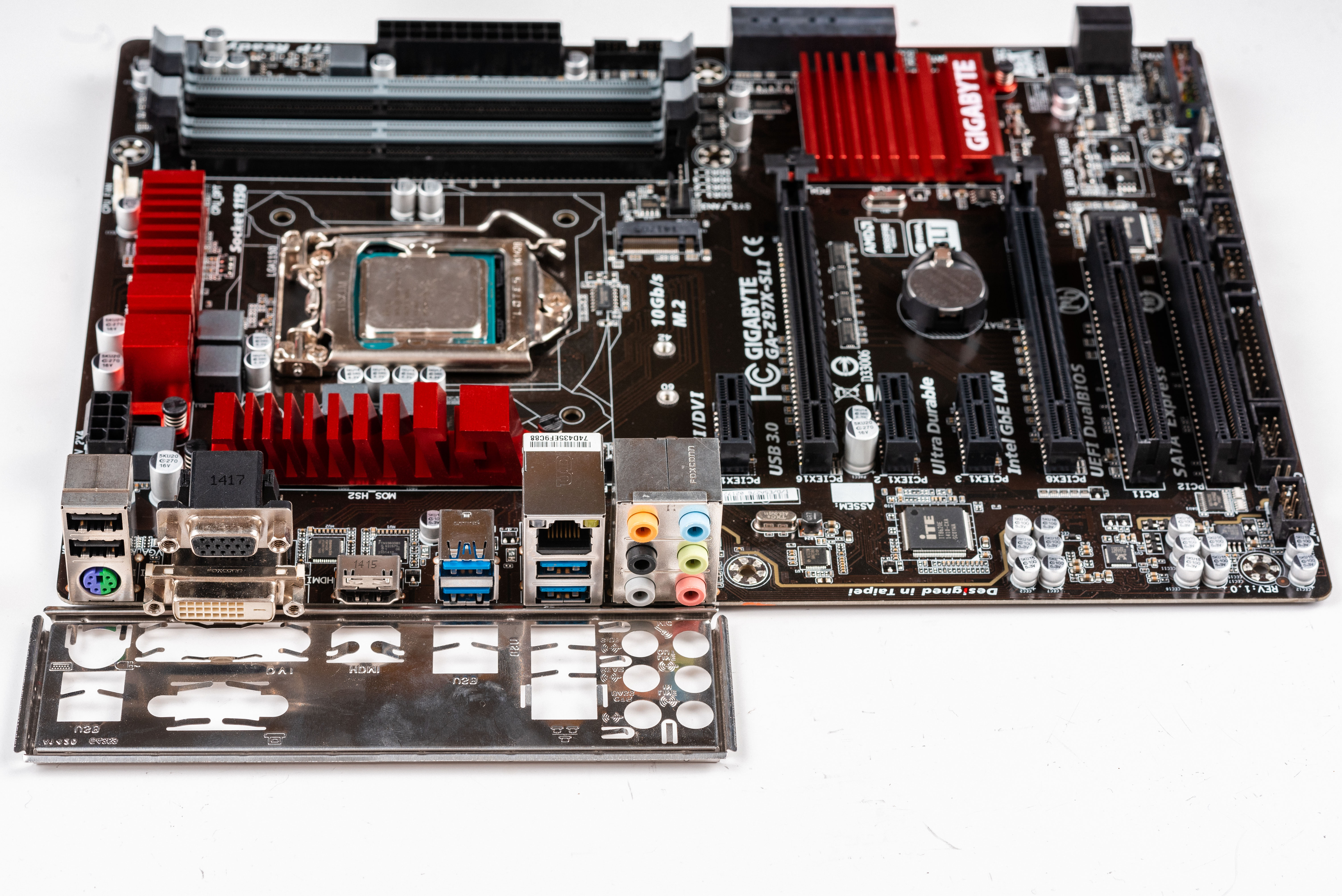

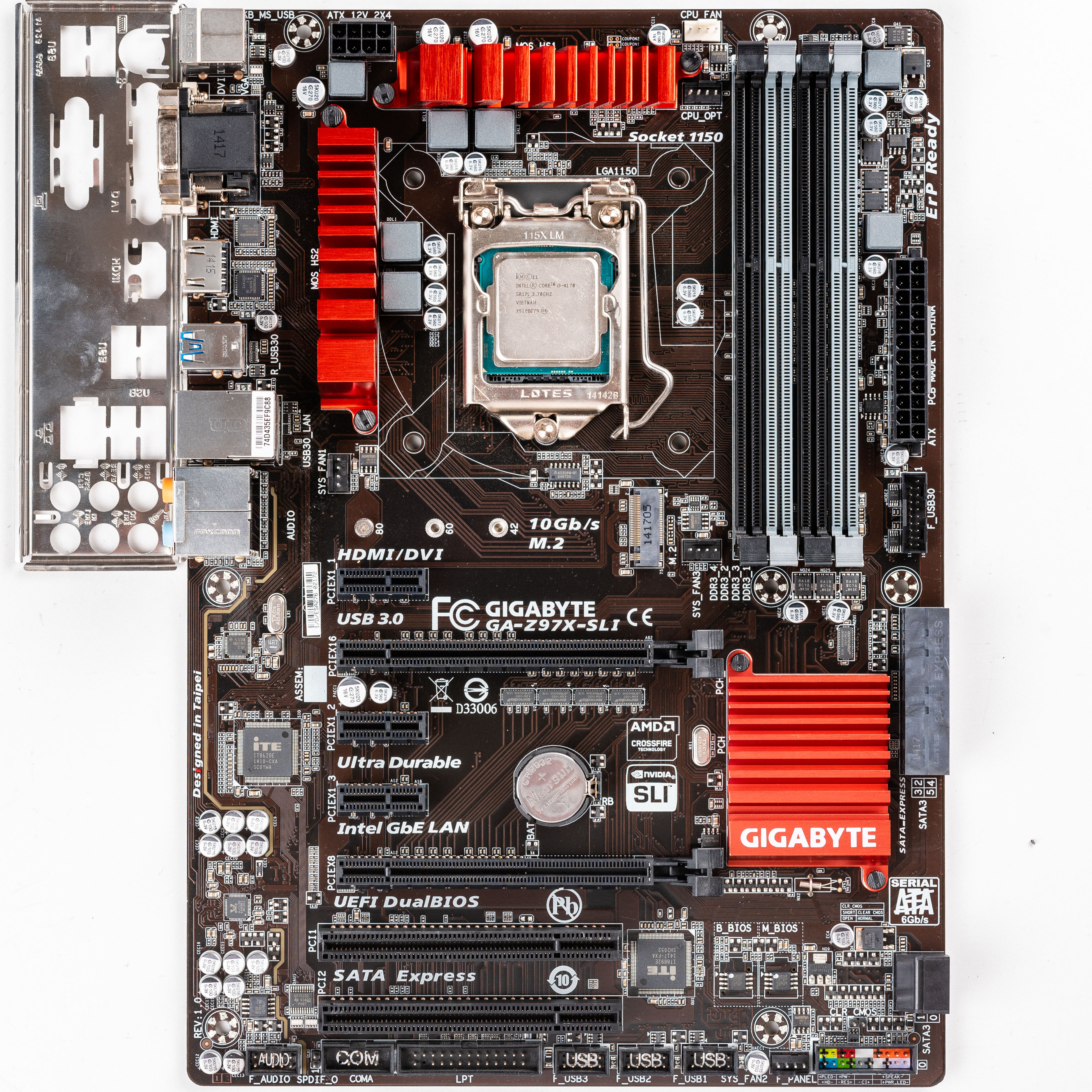

Image 1 of 4 (Gigabyte)
Image 2 of 4 (Motherboard Continuum)
Image 3 of 4 (Motherboard Continuum)
Image 4 of 4 (Motherboard Continuum)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
