Gigabyte GA-Z77X-UP7 (rev. 1.0)
Logs
chipChipset
cpuSocket
Socket H2 (LGA1155)
speedFSB speed
Empty
moboForm factor
Extended ATX/EATX (max 305 × 330 mm)
dimDimensions
305mm x 264mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
DisplayPort
1x
HDMI
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
4x
SATA II
6x
SATA III
1x
Serial
1x
Toslink
4x
USB 2.0
10x
USB 3.0
1x
VGA
1x
mSATA
cardExpansion slots
2x
PCIe x1
3x
PCIe x16
2x
PCIe x16 @ x8
notes Notes

Support for 4-Way/3-Way/2-Way AMD CrossFireX/NVIDIA SLI technology

Last updated 2023-10-13T13:08:18Z
Board info score is 8.6/10
bios 5 BIOS files available

vendor AMI - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.10C
OS support
Windows 7 Windows 8.x Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
28.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2010-10-20
File
Logs
Chip
Release date
2010-04-25
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2013-01
File
Logs

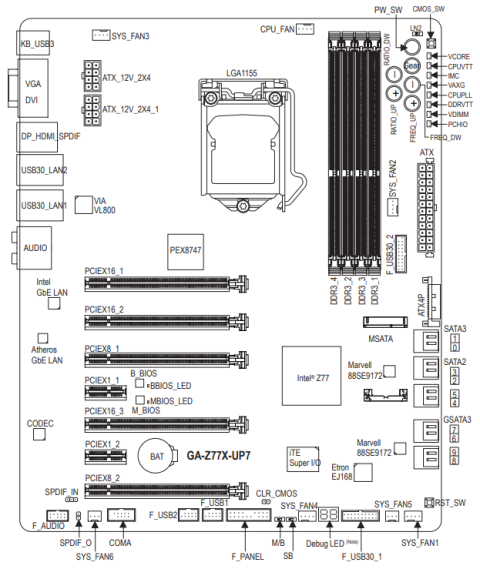

image1 Image 1 of 7 (Gigabyte)

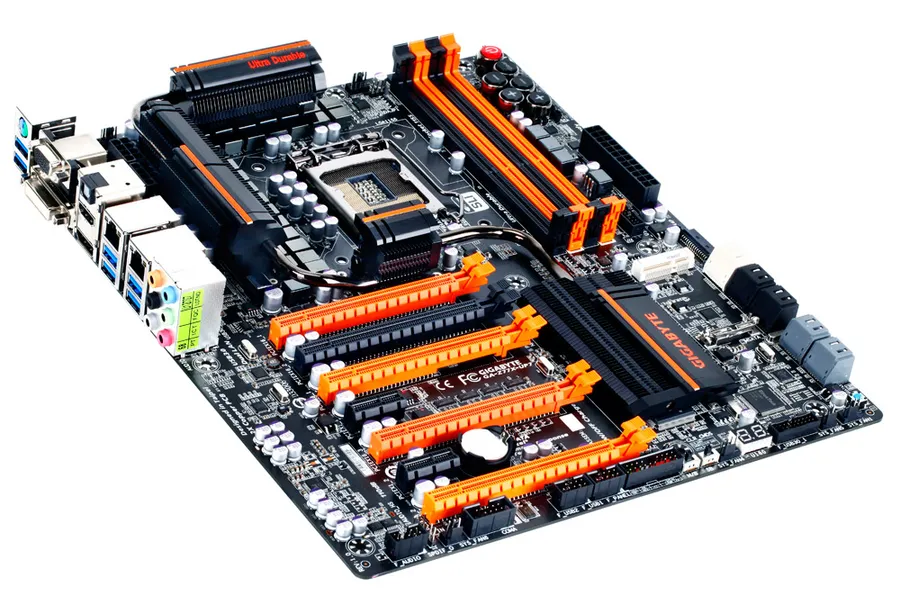

image2 Image 2 of 7 (Motherboard Continuum)

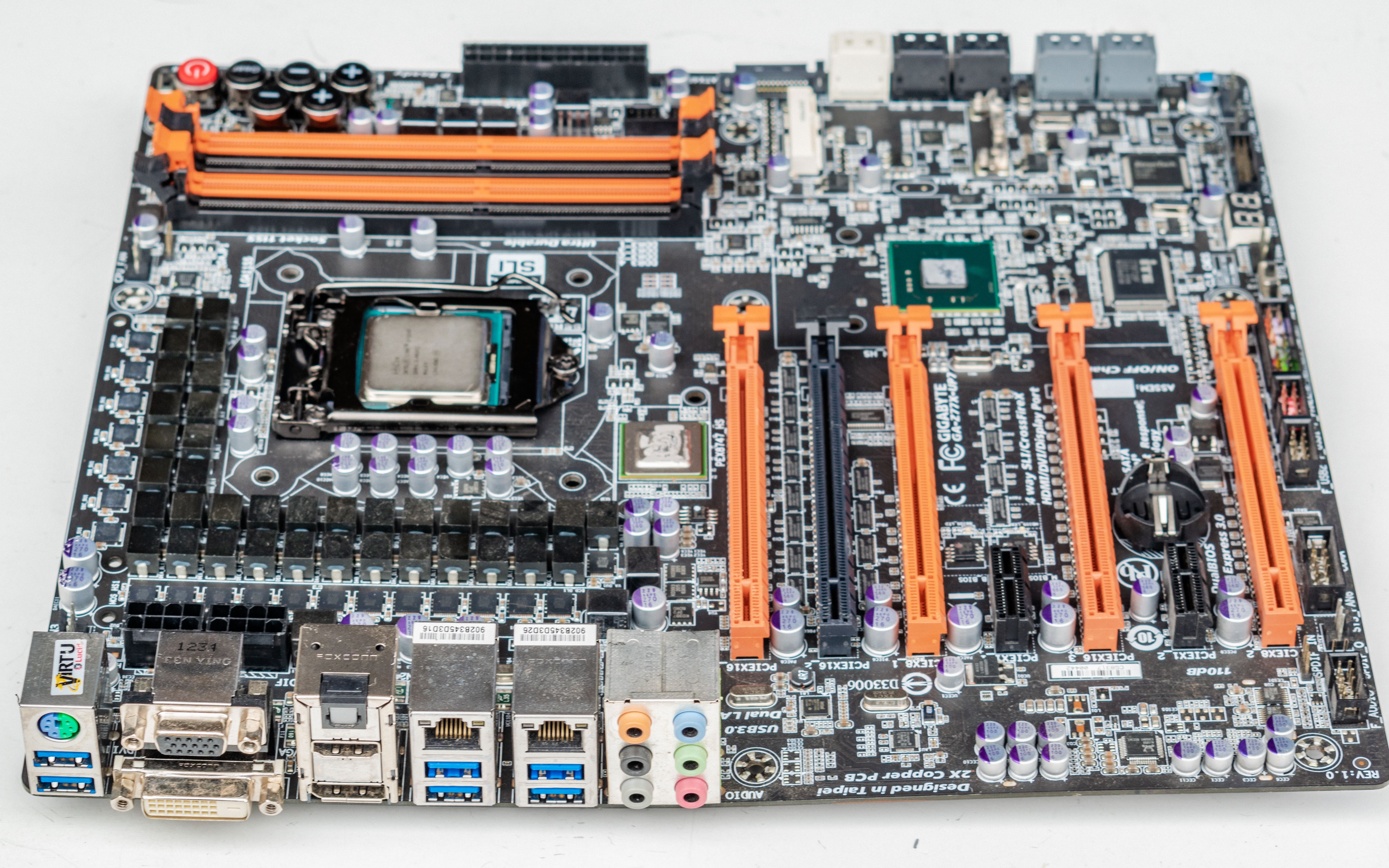

image3 Image 3 of 7 (Gigabyte)

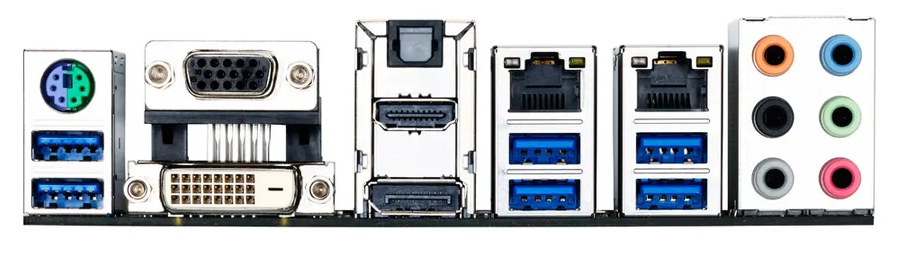

image4 Image 4 of 7 (Motherboard Continuum)

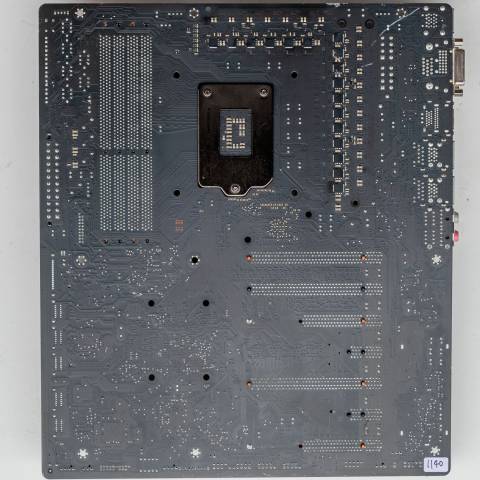

image5 Image 5 of 7 (Gigabyte)
image6 Image 6 of 7 (Motherboard Continuum)

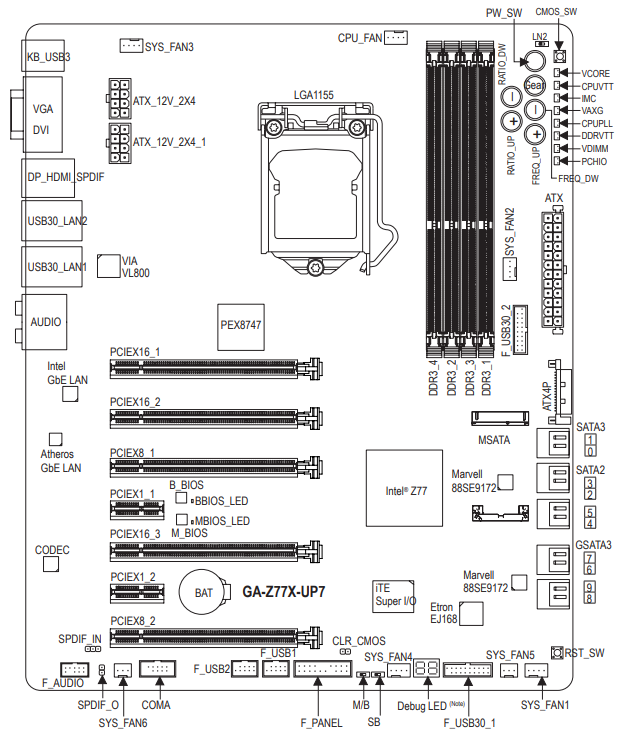

image7 Image 7 of 7 (Gigabyte)
