Gigabyte GA-X79S-UP5-WIFI (rev. 1.1)
Logs
chipChipset
cpuSocket
Socket R (LGA2011-0)
speedFSB speed
Empty
moboForm factor
Enhanced Extended ATX/EEATX (max 347 × 330 mm)
dimDimensions
305mm x 264mm
chipCache
None/Integrated in the CPU
ramMax RAM size
64GB
ramRAM types
DDR3 UDIMMDDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
PS/2 KB+MS Combo
2x
RJ-45 LAN
1x
S/PDIF
8x
SAS-1 (3GBit)
4x
SATA II
2x
SATA III
1x
Toslink
12x
USB 2.0
6x
USB 3.0
2x
eSATA III
cardExpansion slots
1x
32-bit PCI
1x
PCIe x1
2x
PCIe x16
1x
PCIe x16 @ x4
1x
PCIe x16 @ x8
Last updated 2026-01-06T15:13:05Z
Board info score is 8.5/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Beta Version
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.10C
OS support
Windows 7 Windows 8.x Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
28.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2010-04-25
File
Logs
Chip
Release date
2008-11-28
File
Logs

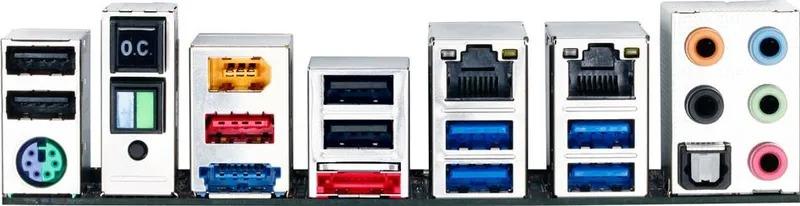

image1 Image 1 of 2 (Gigabyte)

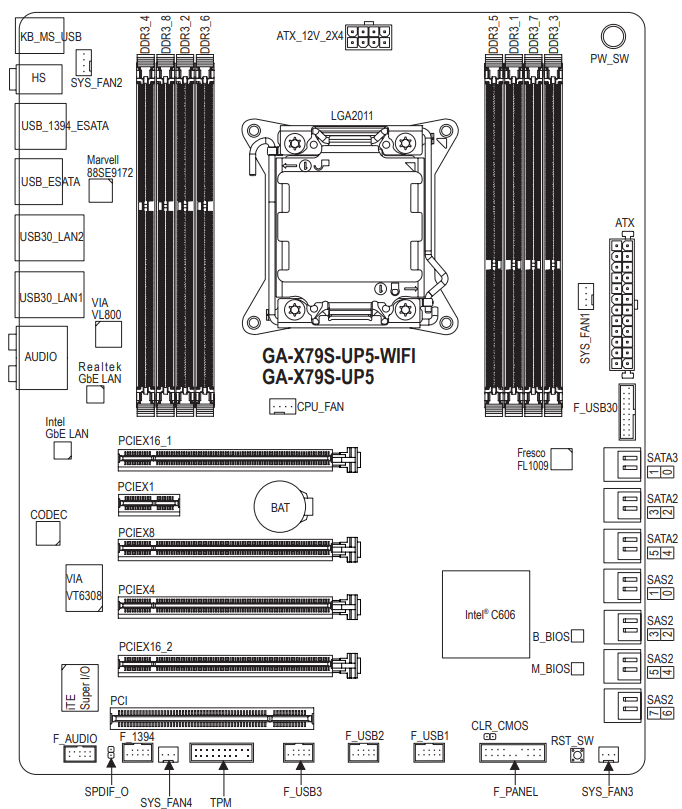

image2 Image 2 of 2 (Gigabyte)
