Gigabyte GA-X79-UD3 (rev. 1.0)
Chipset
Socket
FSB speed Empty
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
32GB
RAM type DDR3 UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
6x
SATA III
1x
Serial
1x
Toslink
14x
USB 2.0
4x
USB 3.0
2x
eSATA III
Expansion slots1x
32-bit PCI
2x
PCIe x1
2x
PCIe x16
2x
PCIe x16 @ x8
Known issues
- Underpowered VRM
The onboard VRM may not provide sufficient power for certain processors or configurations.
Notes
Subject to a recall due to bad firmware and underpowered VRM.
Will not boot with IvyBridge Xeons
Last updated 2025-07-26T12:06:49Z
Board info score is 9.2/10
Chips
-> Chipset part
-> Audio
-> SATA ctrl.
-> Super I/O
-> USB ctrl.
No drivers available
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

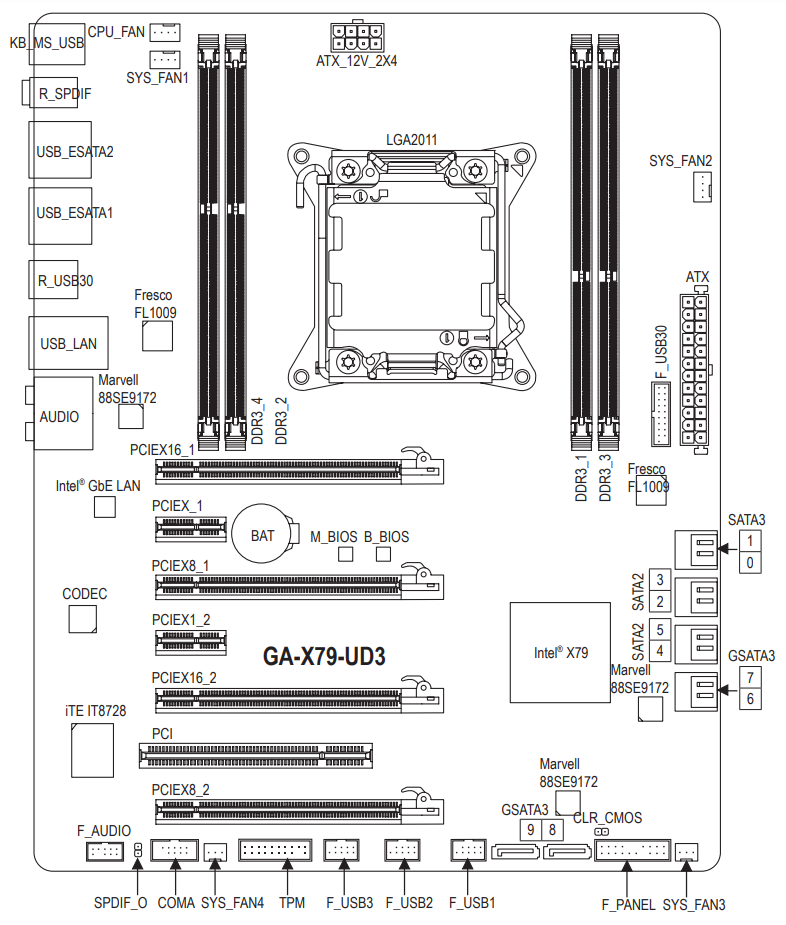

Image 1 of 4 (Gigabyte)

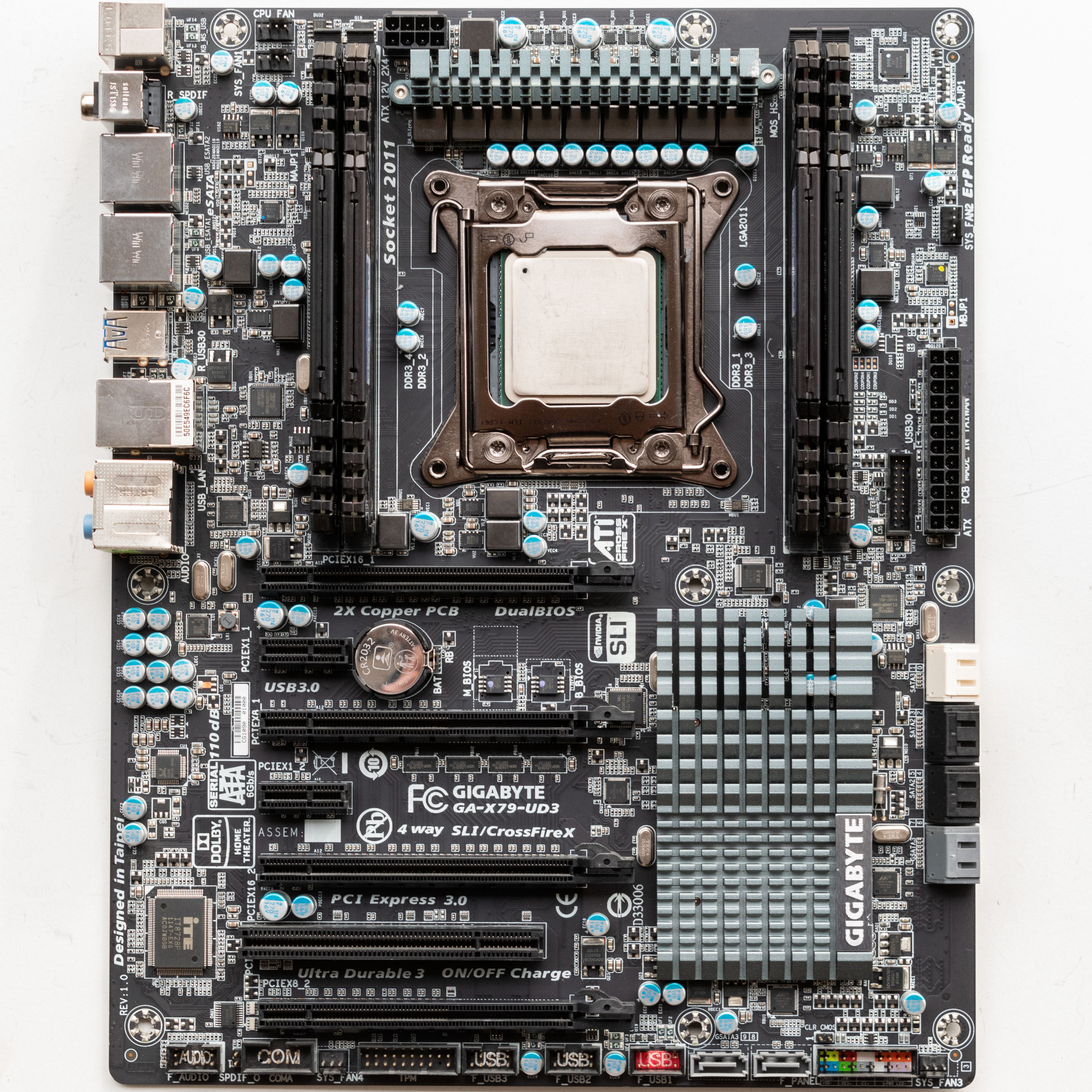

Image 2 of 4 (Motherboard Continuum)

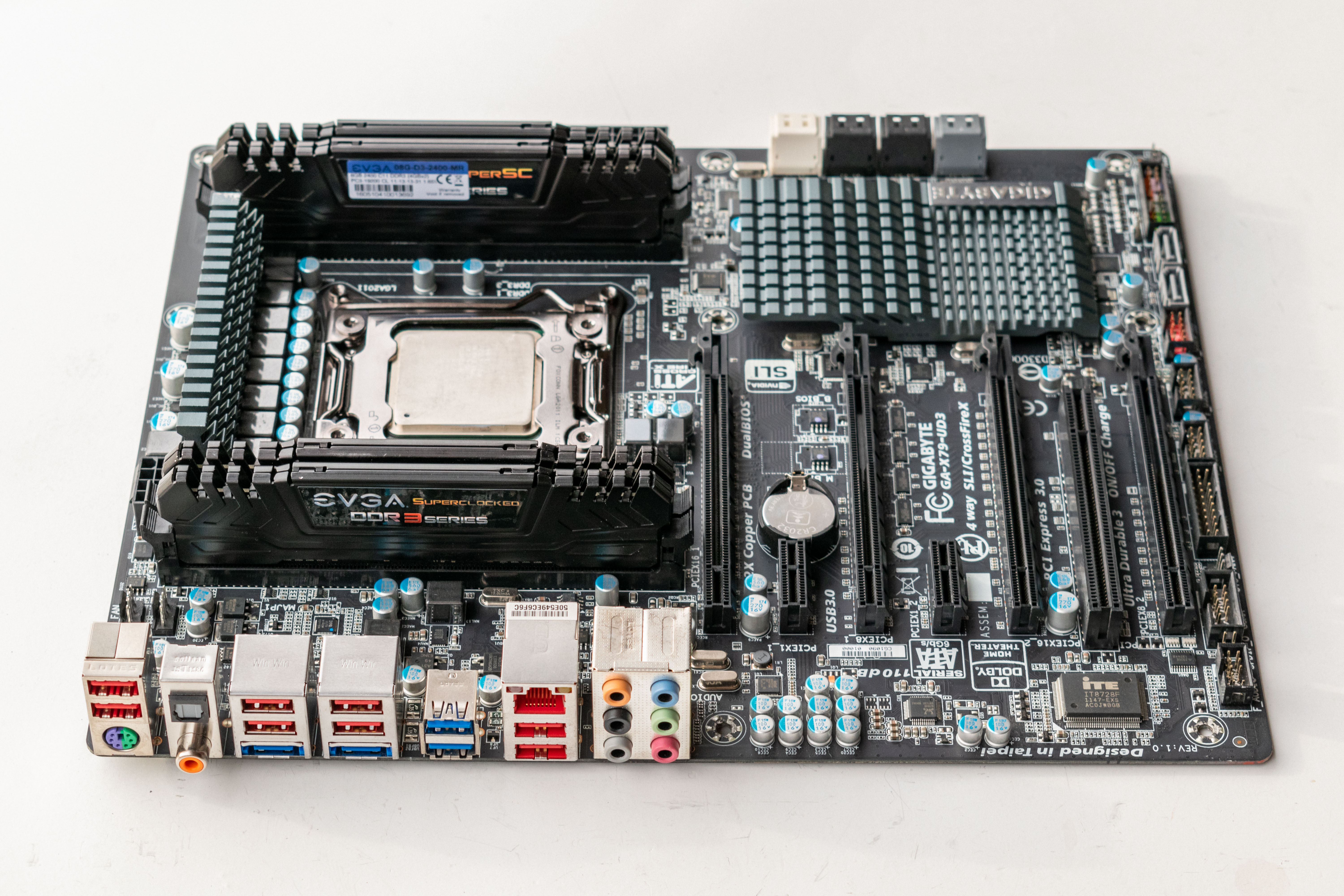

Image 3 of 4 (Motherboard Continuum)

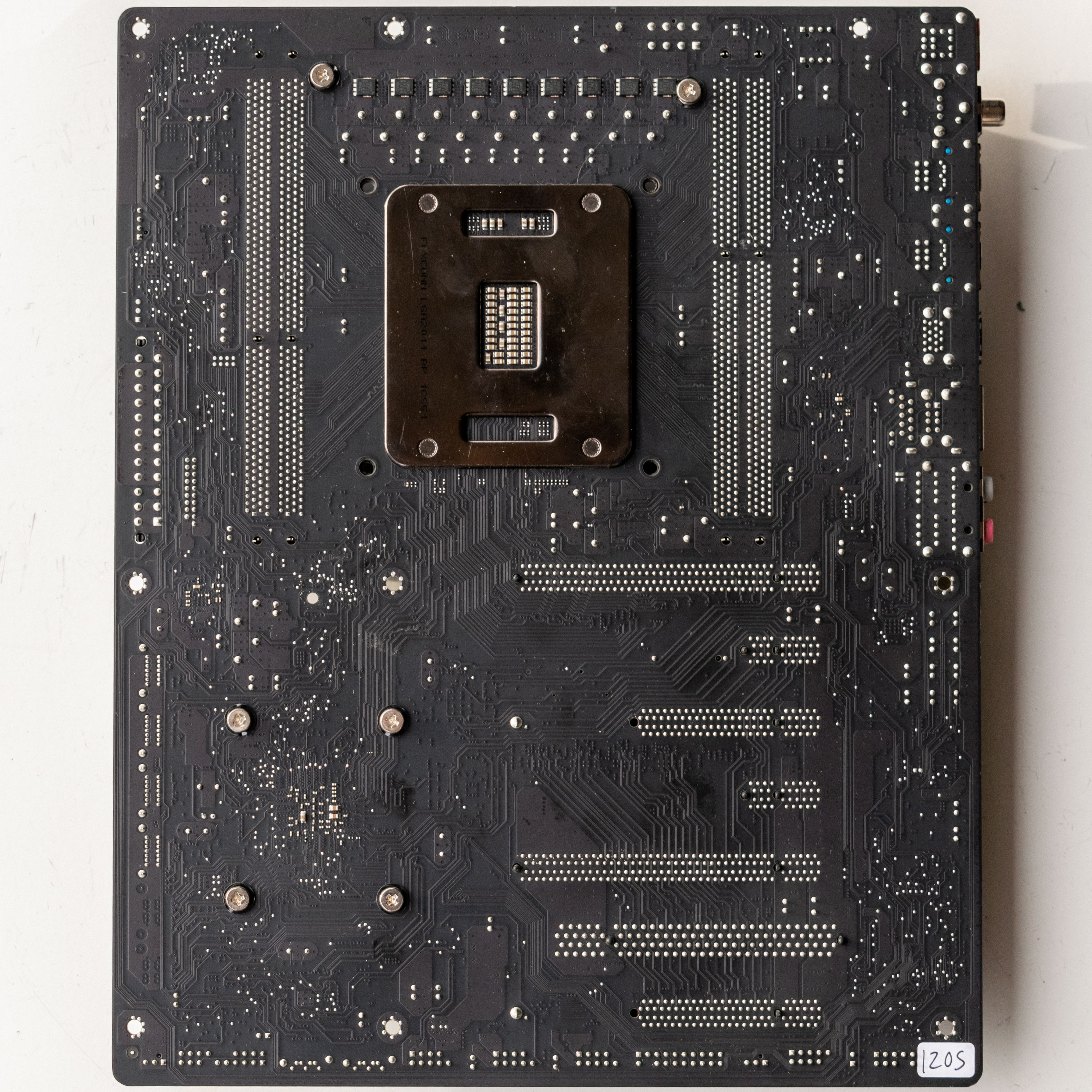

Image 4 of 4 (Motherboard Continuum)
