Gigabyte GA-SBC4100 (rev. 1.0)
Logs
chipChipset
cpuSocket
BGA1090
speedFSB speed
Empty
moboForm factor
ECX/Biscuit SBC 3.5" (max 146 x 105 mm)
dimDimensions
146mm x 102mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
260-pin DDR4 SO-DIMM
pwrPSU connector
OEM/Proprietary
connI/O ports
1x
3.5mm Line-Out/Microphone Combo Jack
1x
GPIO
2x
HDMI
1x
LVDS
2x
RJ-45 LAN
1x
SATA III
4x
Serial
4x
USB 2.0
2x
USB 3.1 Type-A
1x
mSATA
cardExpansion slots
1x
M.2 (M key)
1x
M.2 CNVi
1x
Mini-PCIe
Last updated 2025-06-03T20:19:22Z
Board info score is 9.2/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-040517-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-040517-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs

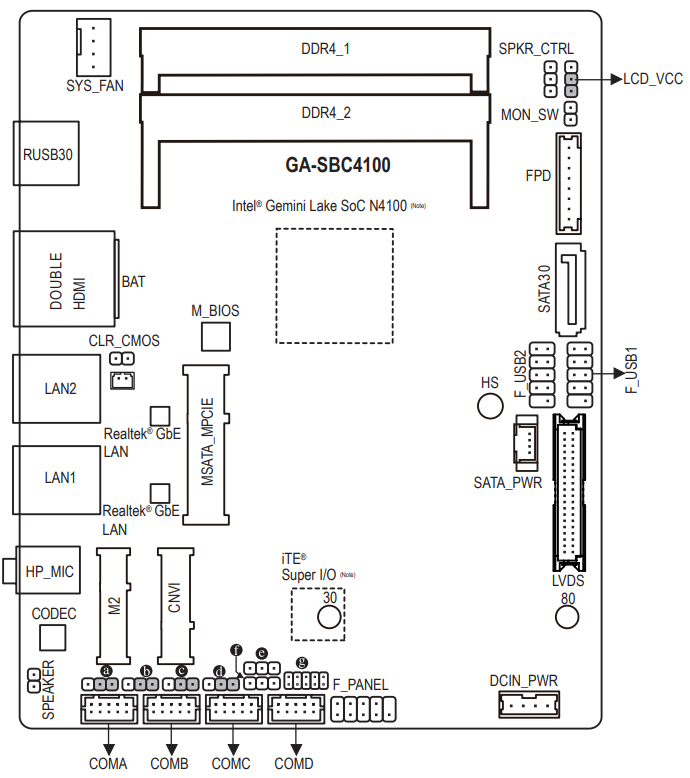

image1 Image 1 of 3 (Gigabyte)

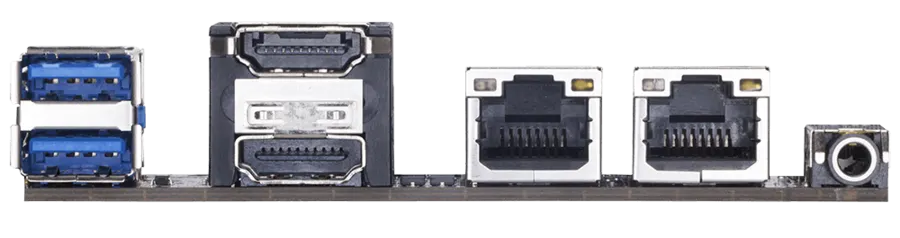

image2 Image 2 of 3 (Gigabyte)

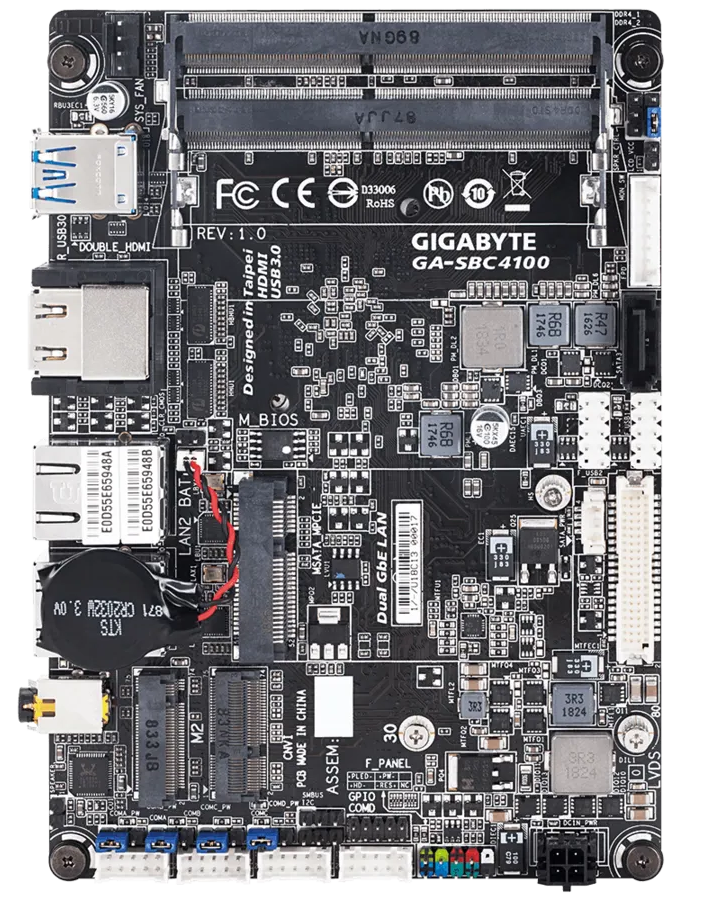

image3 Image 3 of 3 (Gigabyte)
