Gigabyte GA-Q57M-S2H (rev. 1.0)
Chipset
Socket
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
Dimensions244mm x 232mm
Cache
None/Integrated in the CPU
Max RAM size
16GB
RAM type DDR3 UDIMM
PSU connector
Also known as
- Itautec ST 4271
I/O ports1x
3.5mm Audio Combo
1x
DVI
1x
DisplayPort
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
6x
SATA II
2x
Serial
1x
Toslink
12x
USB 2.0
1x
VGA
Expansion slots2x
32-bit PCI
1x
PCIe x16
1x
PCIe x16 @ x4
Last updated 2025-05-18T09:17:58Z
Board info score is 9.2/10
Chips
-> Chipset part
-> Audio
-> IDE ctrl.
-> Network
-> Super I/O
CPU family support
3 BIOS files available
Award - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/23/2010-Q57-7A89TG0HC-00
Note
Itautec ST 4271 BIOS
Core version
6.00PG
BIOS version
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R1.17.39
OS support
Windows 2000
Windows Vista
Windows XP/2k3
Arch
x86
, x86-64
Size
3.8MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2010-07
File
Logs
Family
Release date
2009-09
File
Logs
Family
Release date
2015-02
File
Logs
Family
Release date
2011-03
File
Logs

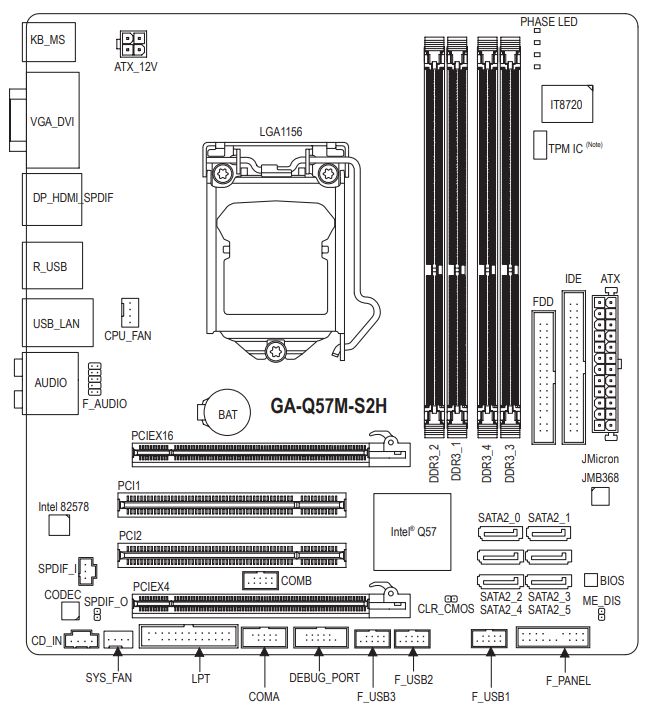

Image 1 of 4 (Gigabyte)

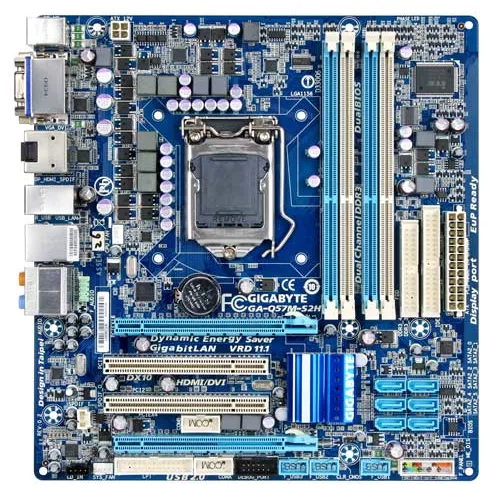

Image 2 of 4 (Gigabyte)

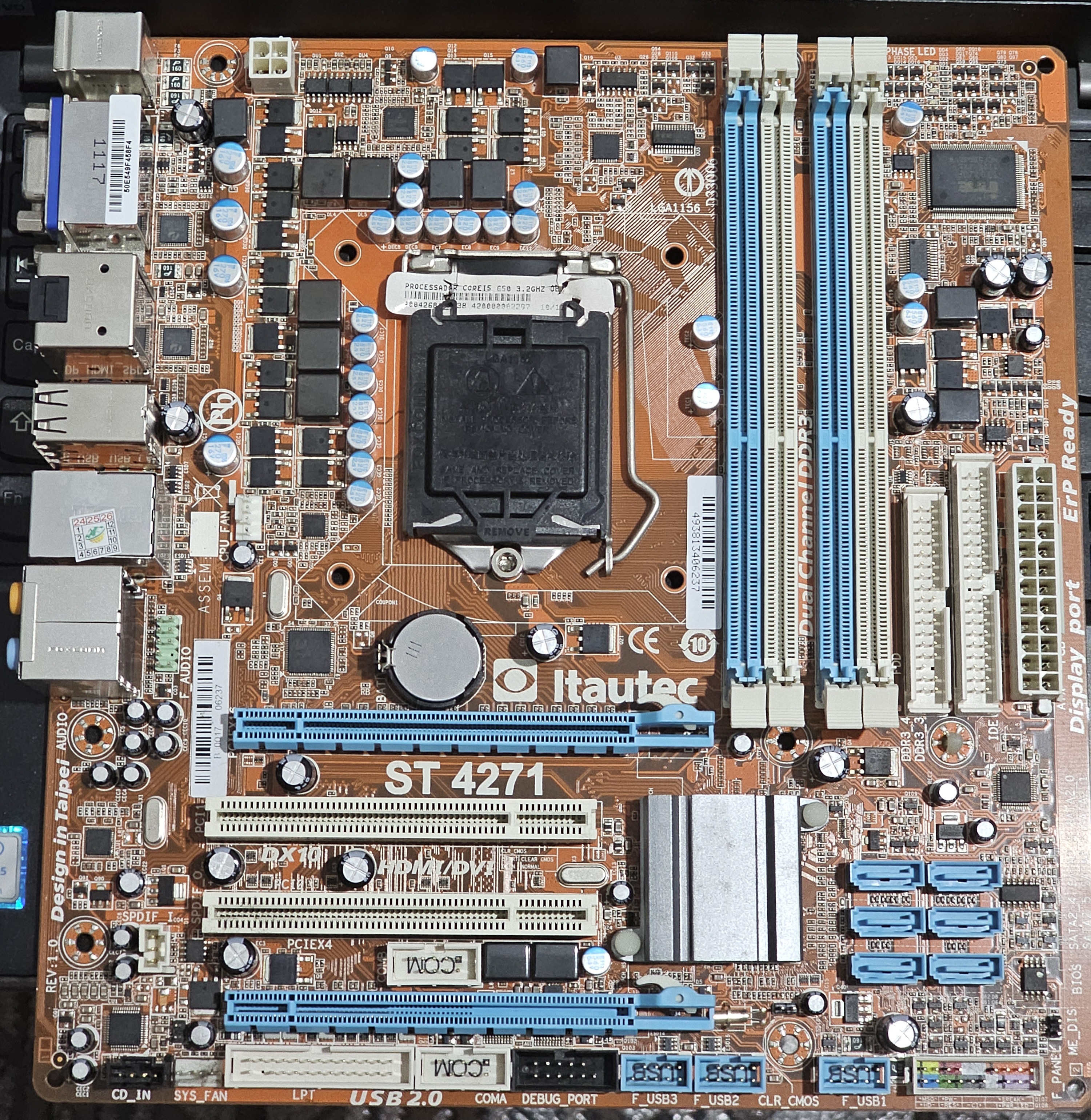

Image 3 of 4 (RichardG867)

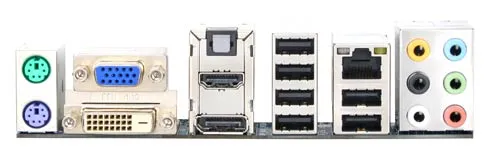

Image 4 of 4 (Gigabyte)
