Gigabyte GA-P55-UD3L (rev. 2.3)
Logs
chipChipset
cpuSocket
Socket H (LGA1156)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 190mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB(DDR3-2200)
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

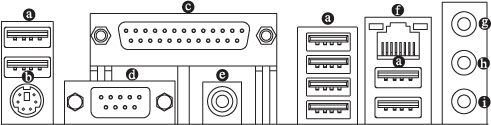

connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
2x
S/PDIF
8x
SATA II
1x
Toslink
14x
USB 2.0
1x
eSATA II
cardExpansion slots
4x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x4
notes Notes
  • Supports CrossFireX.
Last updated 2023-11-18T12:44:55Z
Board info score is 9.6/10
bios 7 BIOS files available

vendor Award - 7 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/01/2010-H55-7A89TG0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/24/2010-H55-7A89TG0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
05/12/2010-H55-7A89TG0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/02/2010-P55-7A89TG0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
02/11/2010-P55-7A89TG0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/28/2010-P55-7A89TG0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/04/2009-P55-7A89TG0AC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R1.17.39
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
3.8MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-03-31
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-02-06
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2010-07
File
Logs
Family
Release date
2009-09
File
Logs
Family
Release date
2015-02
File
Logs
Family
Release date
2011-03
File
Logs
image1 Image 1 of 5 (Gigabyte)

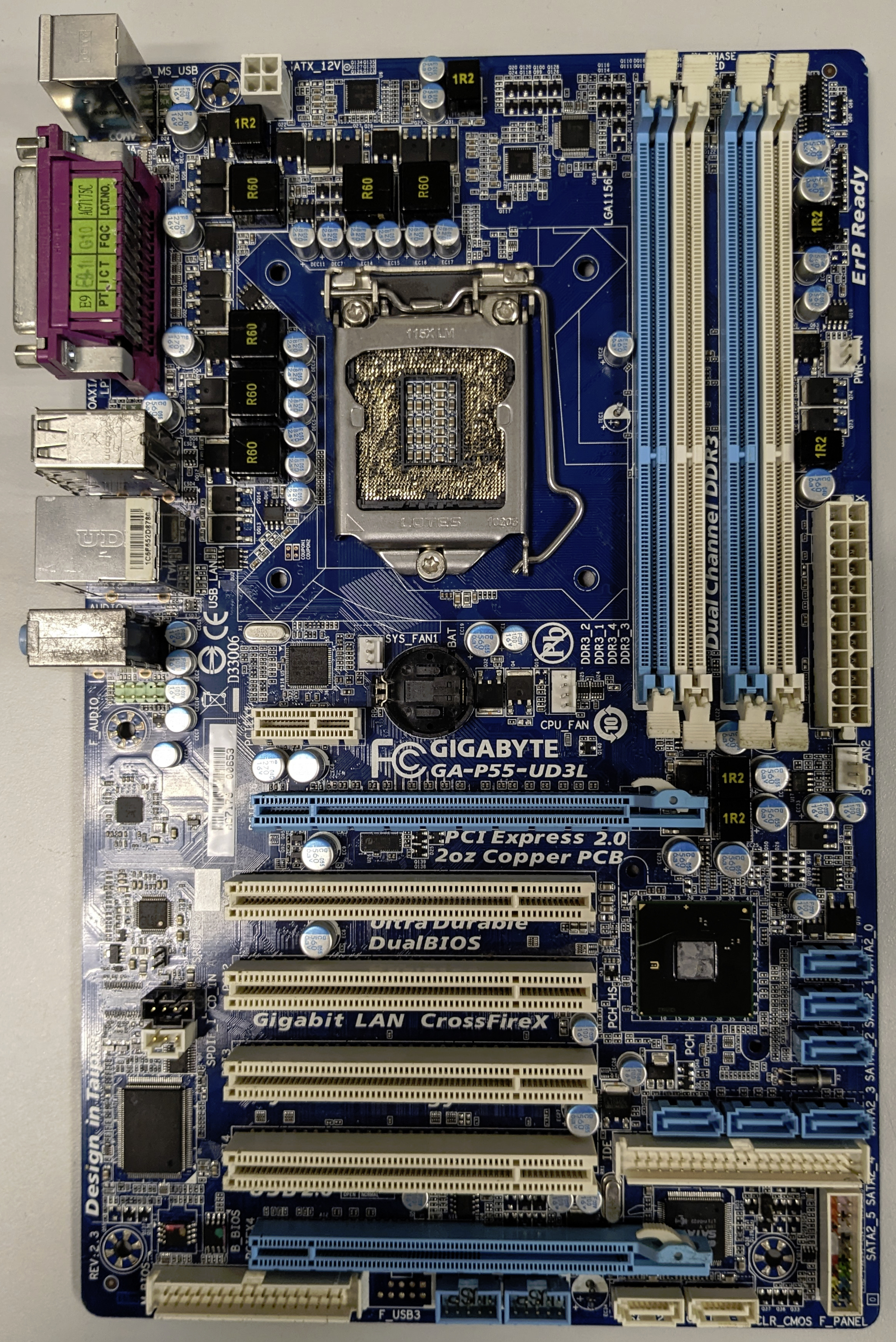

image2 Image 2 of 5 (Eugenio)

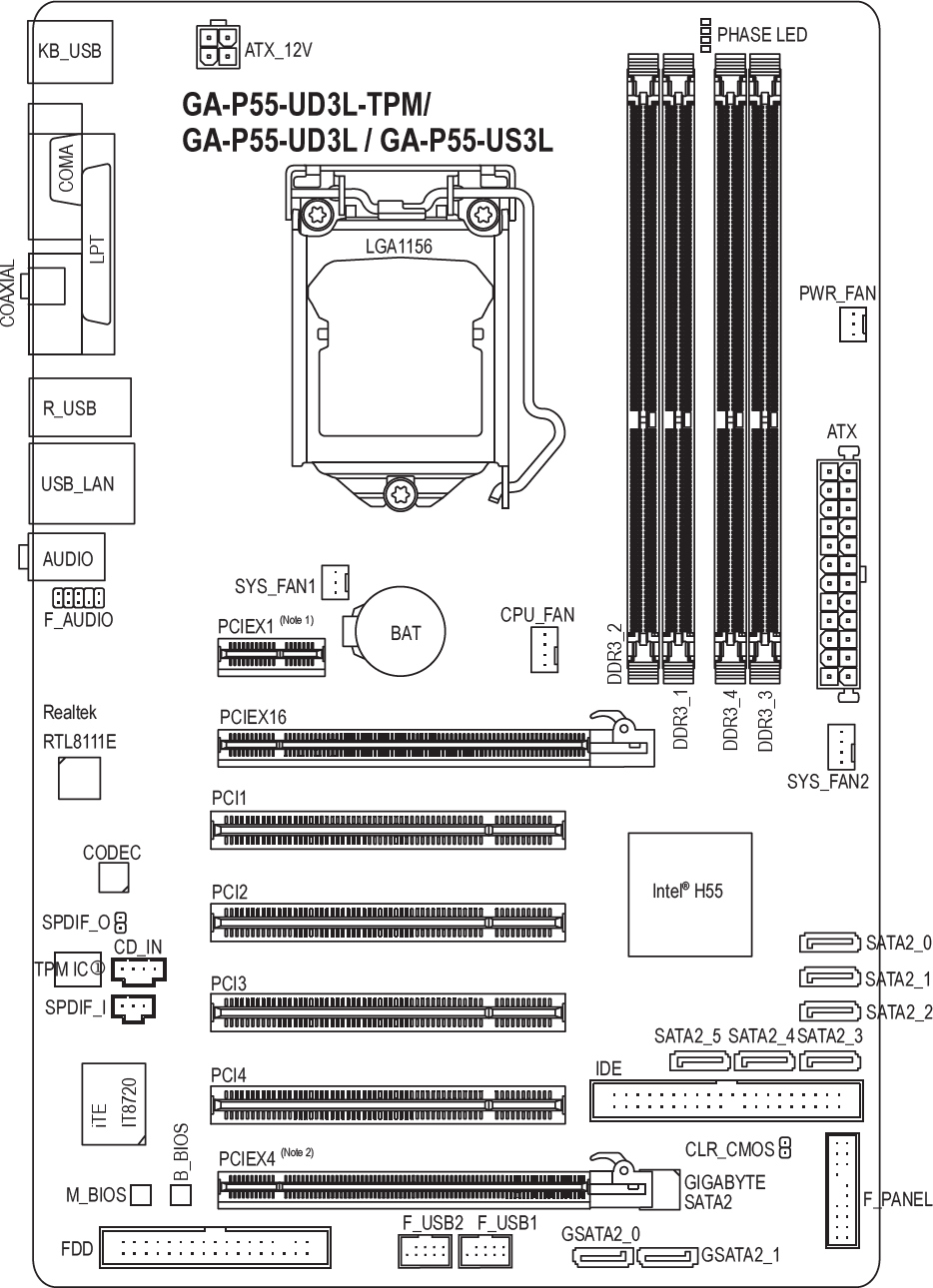

image3 Image 3 of 5 (Eugenio)

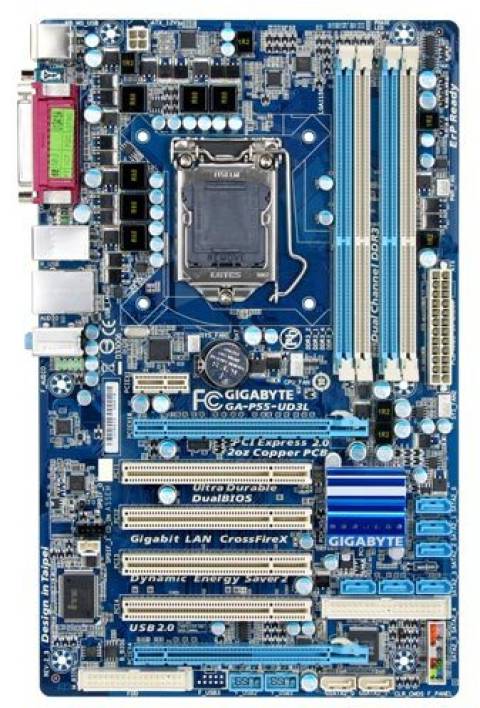

image4 Image 4 of 5 (Gigabyte)

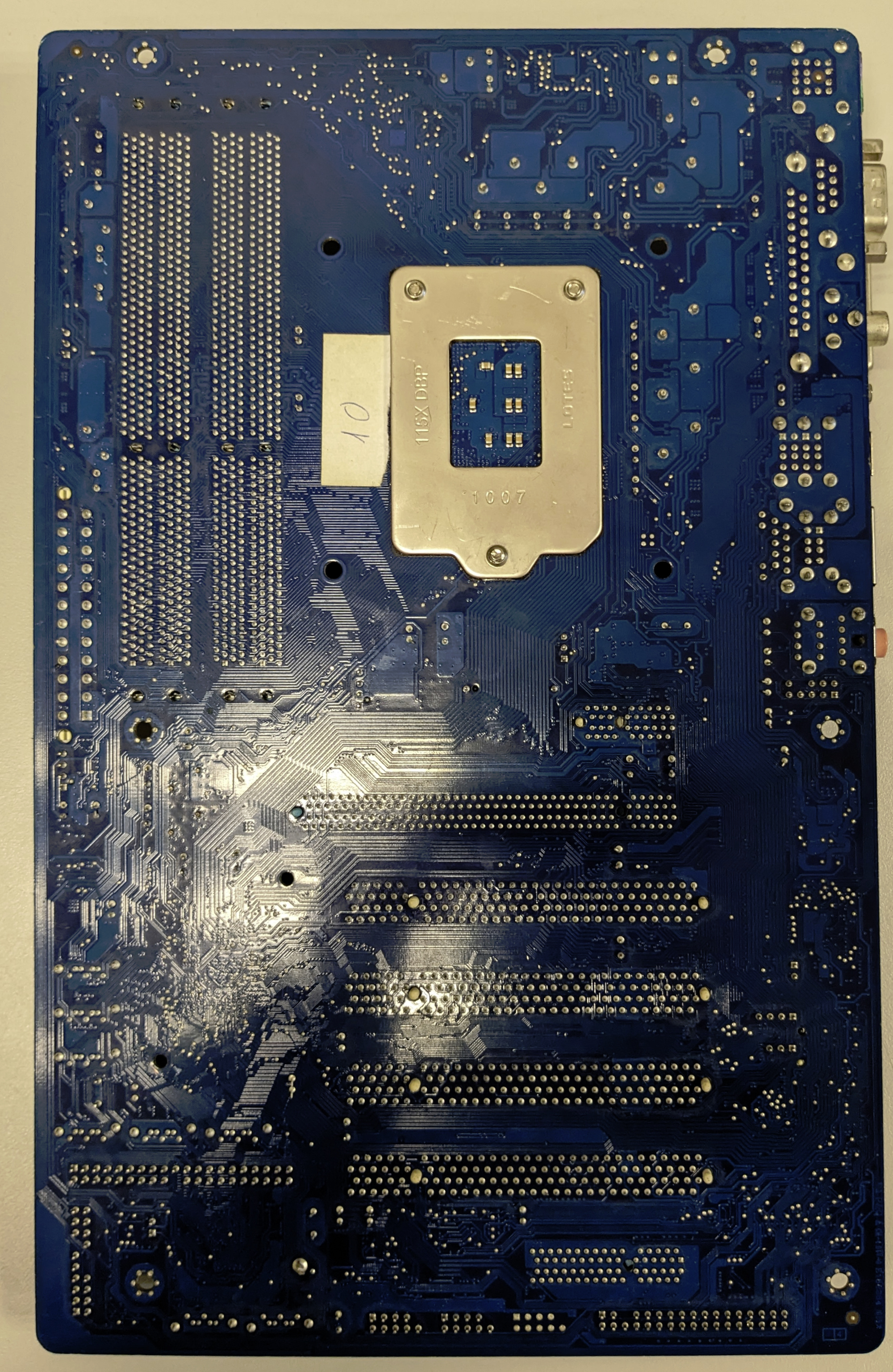

image5 Image 5 of 5 (Gigabyte)
