Gigabyte GA-MA790FX-DS5 (rev. 1.0)
Chipset
Sockets
FSB speed Empty
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
16GB(DDR2-1066)
RAM types DDR2 UDIMMDDR2 UDIMM ECC
PSU connector
I/O ports1x
3.5mm Audio Combo
3x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
6x
SATA II
1x
Serial
1x
Toslink
10x
USB 2.0
1x
eSATA
Expansion slots2x
32-bit PCI
3x
PCIe x1
2x
PCIe x16
Last updated 2025-09-23T12:22:36Z
Board info score is 9.4/10
Chips
-> Chipset part
-> Audio
-> FireWire ctrl.
-> Network
-> Power Management
-> RAID ctrl.
-> Super I/O
8 BIOS files available
Award - 8 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R1.17.39
OS support
Windows 2000
Windows Vista
Windows XP/2k3
Arch
x86
, x86-64
Size
3.8MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-02-06
File
Logs
Chip
Release date
2003-02
File
Logs
Chip
Release date
2006-01-09
File
Logs

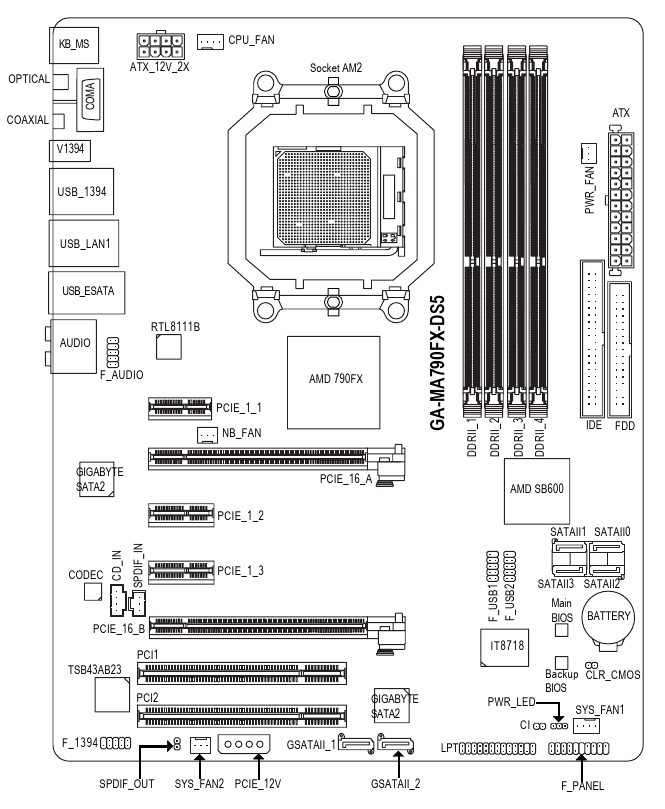

Image 1 of 4 (Gigabyte)

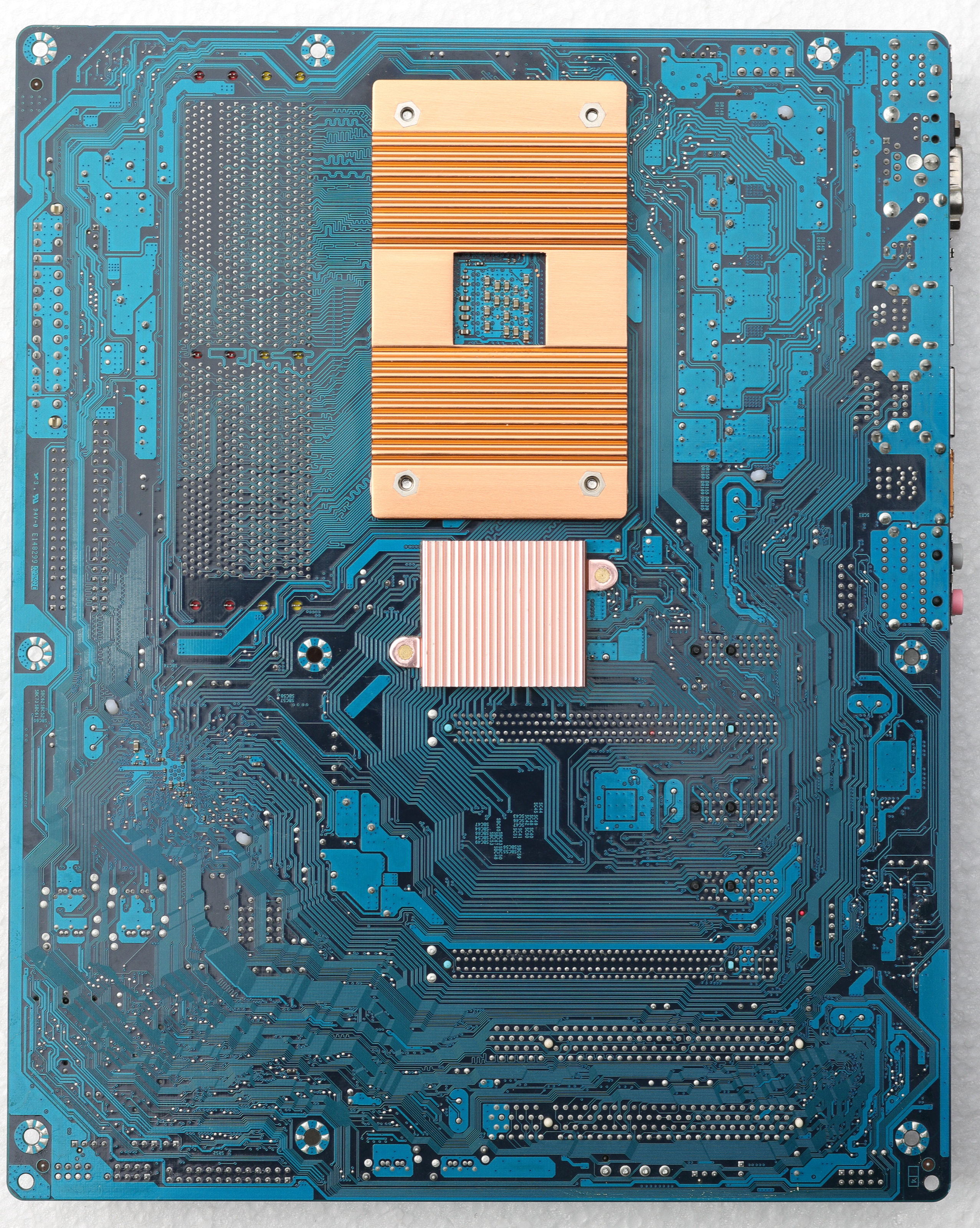

Image 2 of 4 (Rigo "0xCats" Reddig)

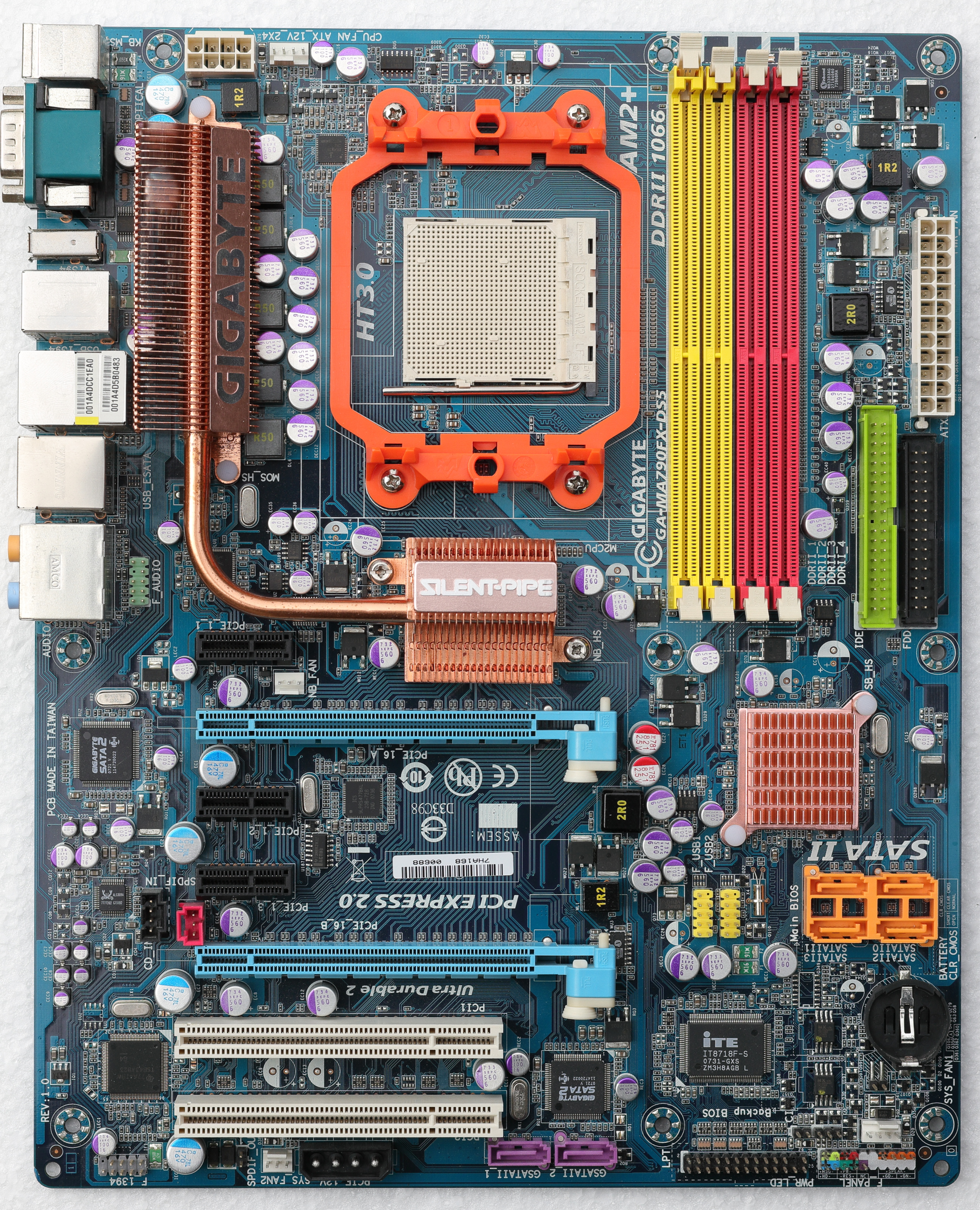

Image 3 of 4 (Rigo "0xCats" Reddig)
Image 4 of 4 (Gigabyte)
