Gigabyte GA-MA785GM-US2H (rev. 1.3)
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
243mm x 243mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
2x
FireWire 400
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
5x
SATA II
1x
Serial
1x
Toslink
12x
USB 2.0
1x
VGA
1x
eSATA II
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-08-10T14:42:53Z
Board info score is 9.2/10
bios 5 BIOS files available

vendor Award - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
03/09/2010-RS785-SB710-7A66BG05C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/22/2010-RS785-SB710-7A66BG05C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
07/27/2012-RS785-SB710-7A66BG05C-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
05/17/2010-RS785-SB710-7A66BG05C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/16/2010-RS785-SB710-7A66BG05C-00
Note
Core version
6.00PG
BIOS version
Logs
drv No drivers available

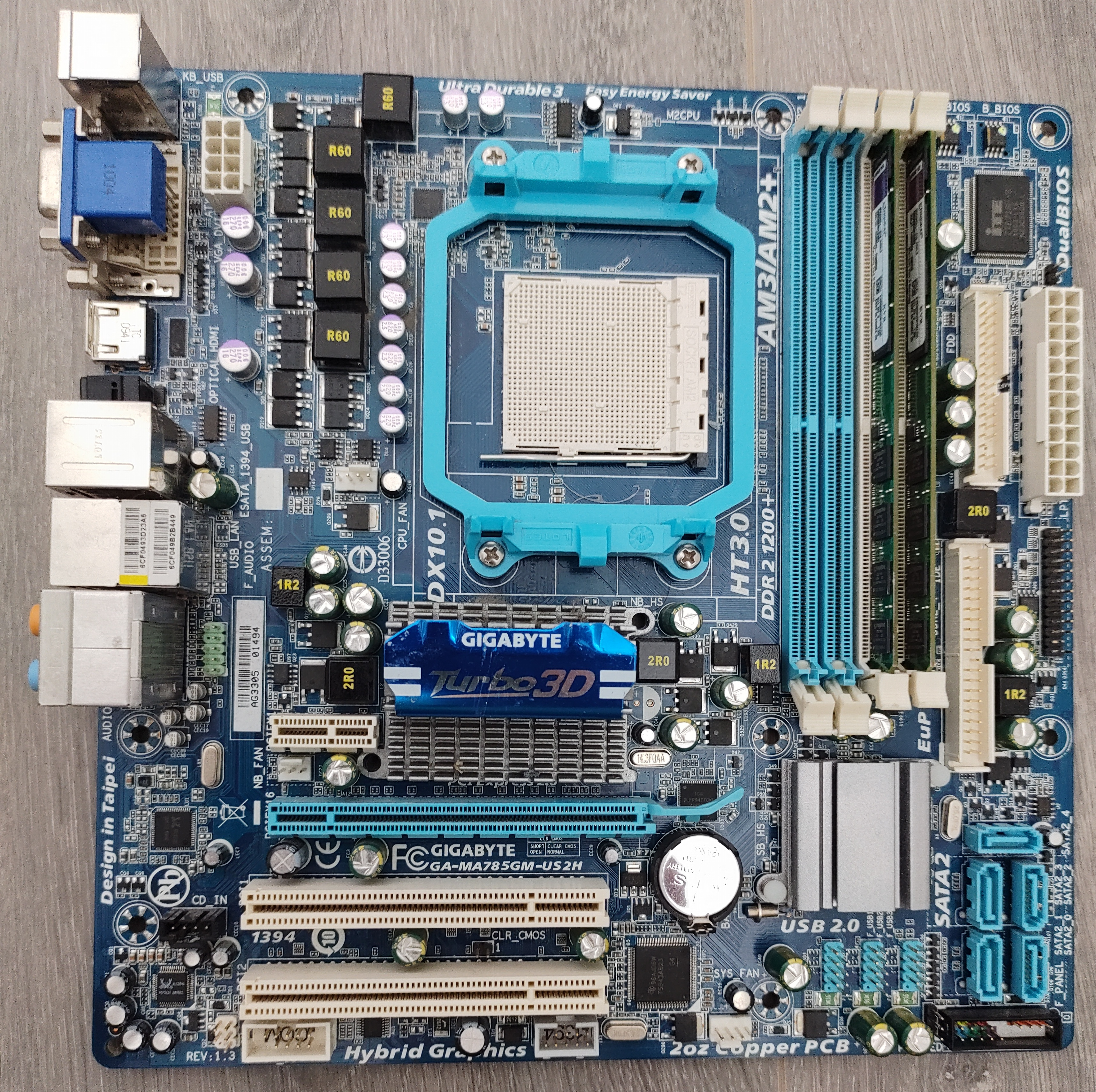

image1 Image 1 of 5 (evasive)

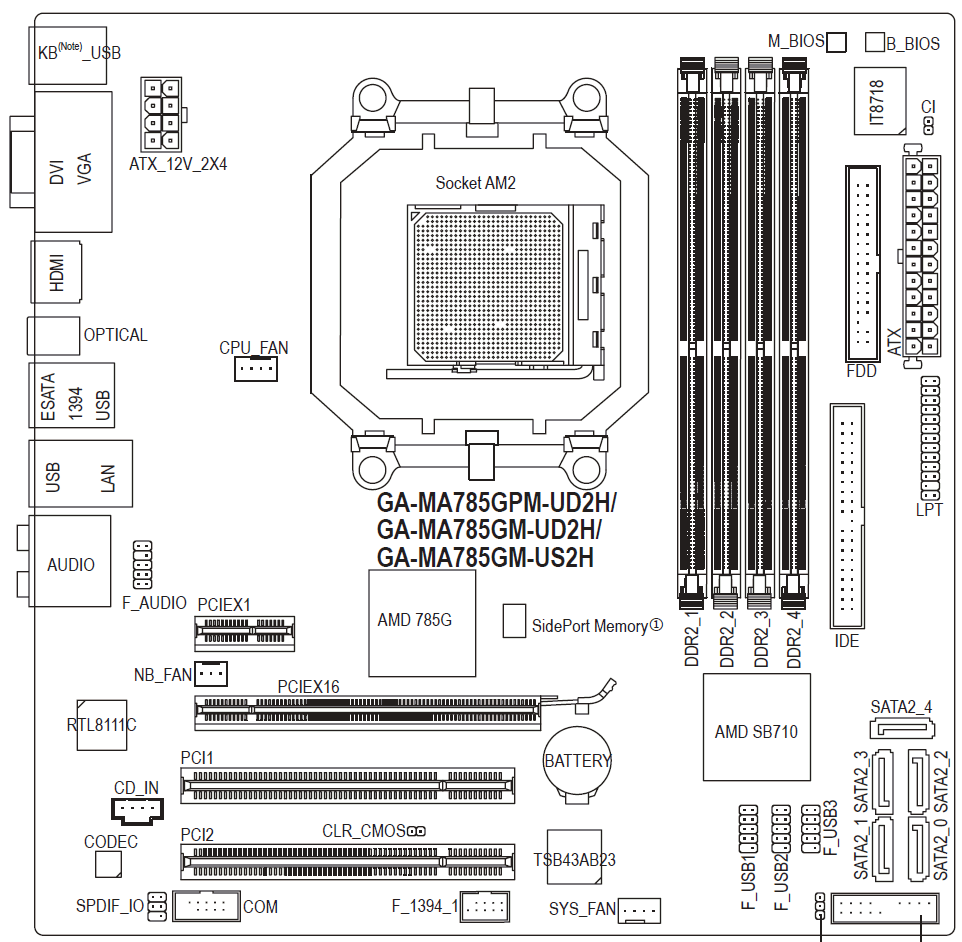

image2 Image 2 of 5 (Motherboard Continuum)
image3 Image 3 of 5 (evasive)

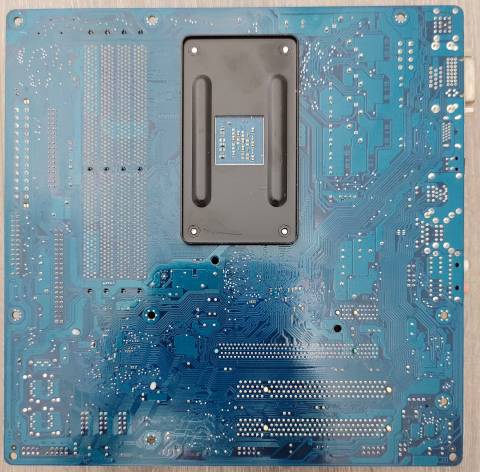

image4 Image 4 of 5 (evasive)

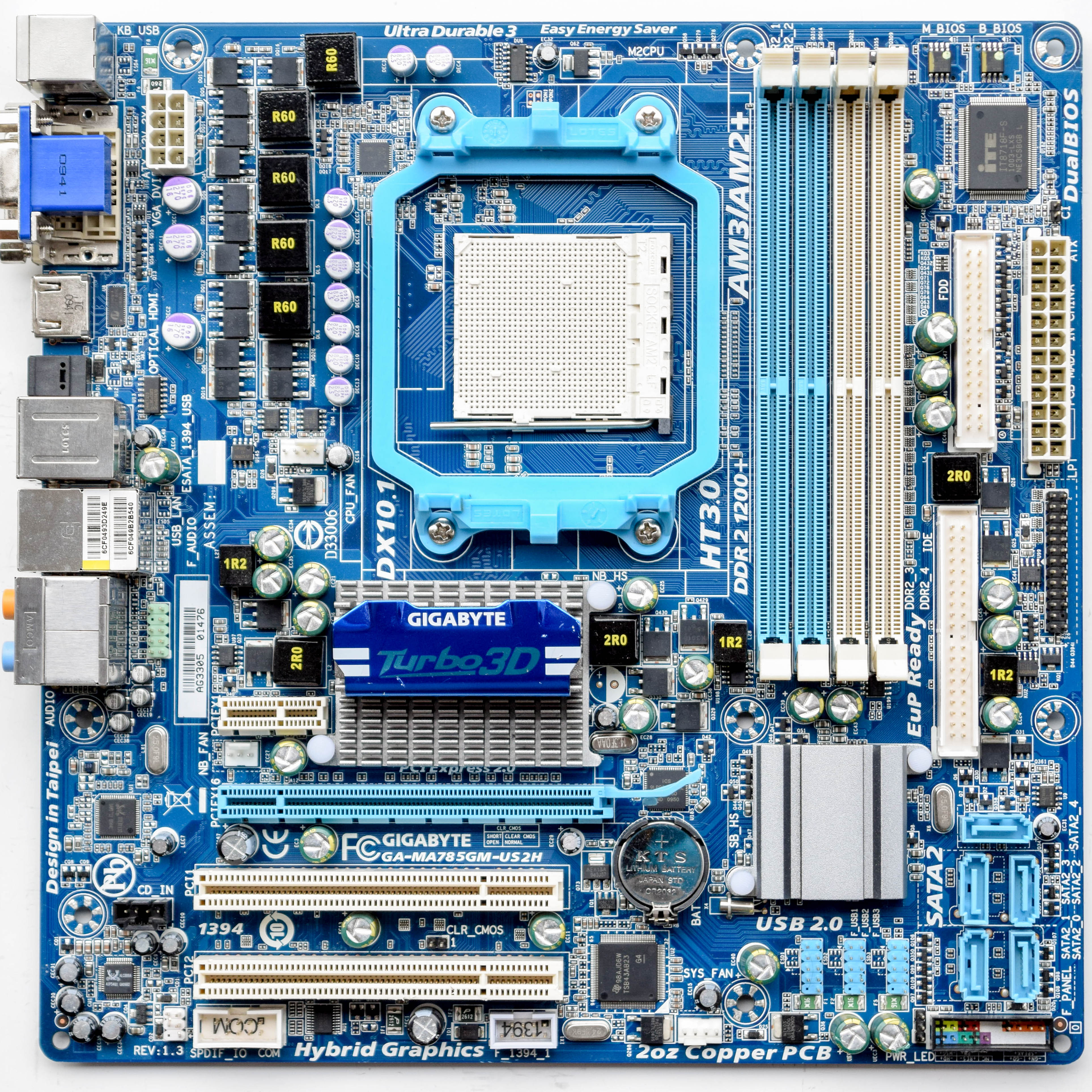

image5 Image 5 of 5 (Gigabyte)
