Gigabyte GA-MA770-DS3 (rev. 2.0)
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 210mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM types
DDR2 UDIMMDDR2 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
3x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
3x
S/PDIF
6x
SATA II
2x
Serial
1x
Toslink
12x
USB 2.0
cardExpansion slots
2x
32-bit PCI
4x
PCIe x1
1x
PCIe x16
notes Notes

Uses Realtek 8111C Gigabit Ethernet controller

Supports AM3 cpus

Last updated 2024-10-23T12:19:24Z
Board info score is 9.4/10
bios 4 BIOS files available

vendor Award - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/13/2010-RX780-SB700-6A66AG09C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/18/2009-RX780-SB700-6A66AG09C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/16/2009-RD780-SB700-6A66AG09C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
07/14/2008-RD780-SB700-6A66AG09C-00
Note
Core version
6.00PG
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

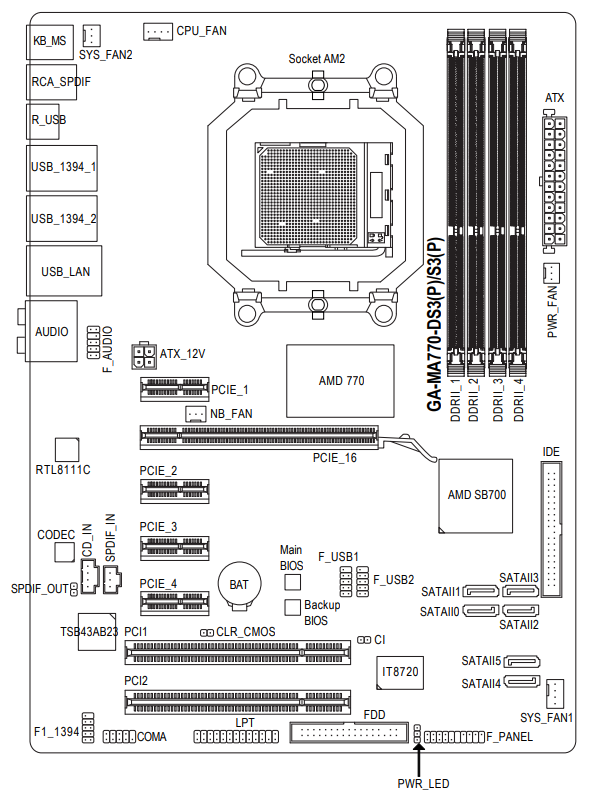

image1 Image 1 of 5 (Gigabyte)

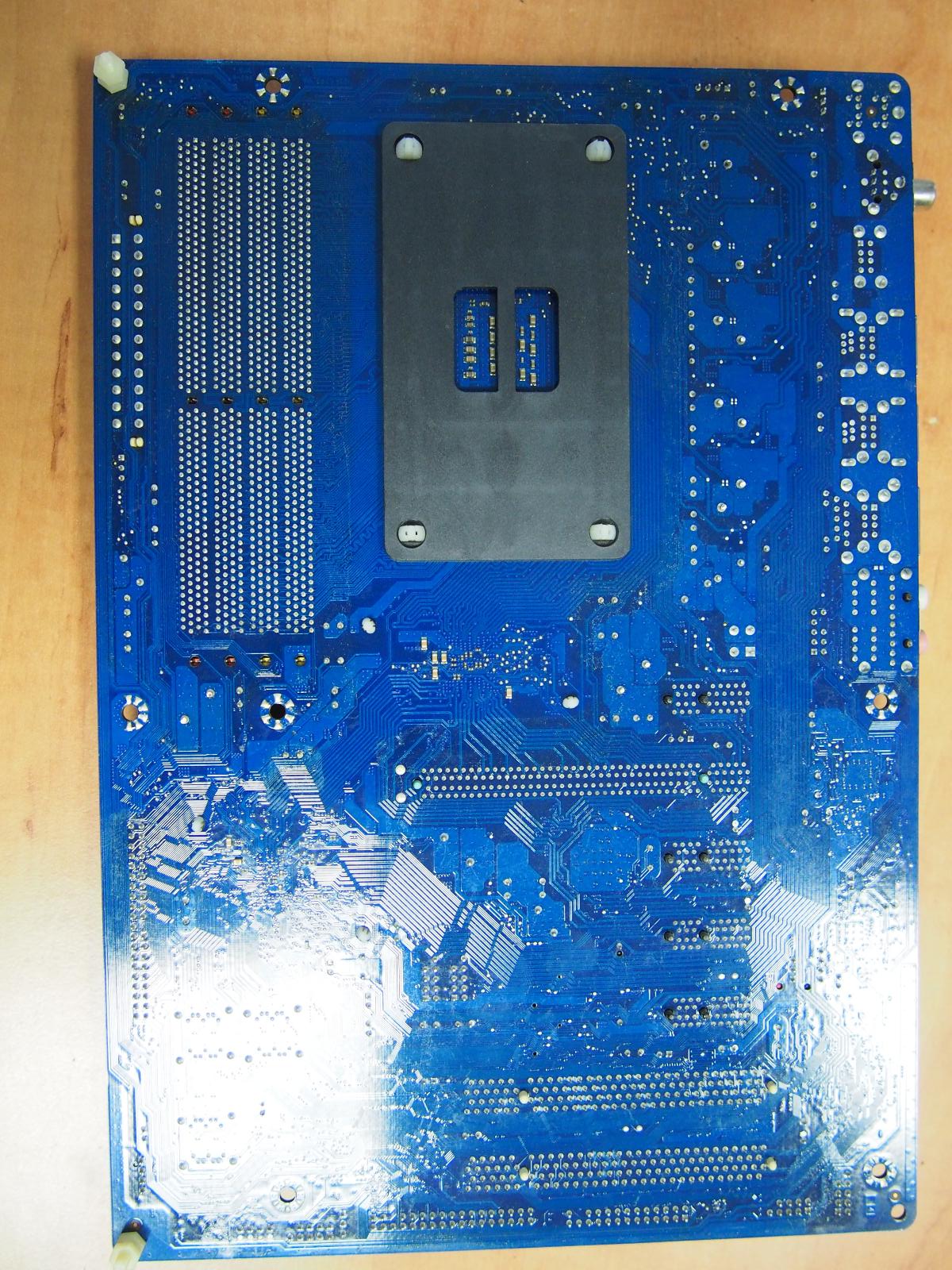

image2 Image 2 of 5

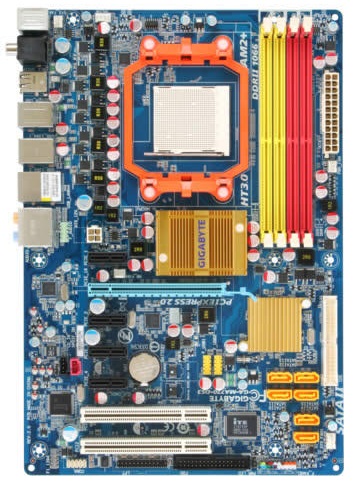

image3 Image 3 of 5

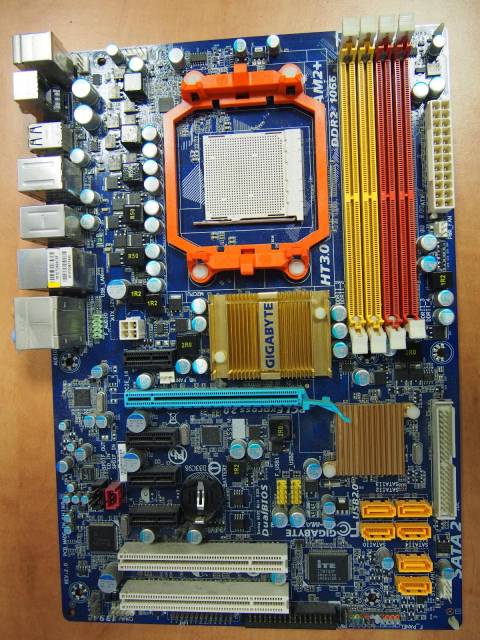

image4 Image 4 of 5

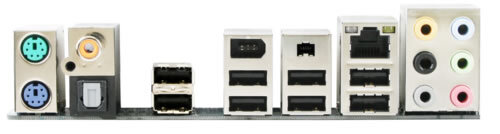

image5 Image 5 of 5
