Gigabyte GA-MA74GM-S2H (rev. 4.4)
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
243mm x 220mm
ramMax VRAM size
512MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
12x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
notes Notes

Uses Realtek RTL8111D or RTL8111E Network Chip

  • GA-MA74GM-S2H (HDMI)
  • GA-MA74GM-S2 (no HDMI)
Last updated 2025-07-22T18:45:09Z
Board info score is 9/10
bios 4 BIOS files available

vendor Award - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/31/2010-RS740-SB710-6A669G0BC-00
Note
GA-MA74GM-S2
Core version
6.00PG
BIOS version
Logs
POST string
08/25/2010-RS740-SB710-6A669G0BC-00
Note
GA-MA74GM-S2
Core version
6.00PG
BIOS version
Logs
POST string
08/03/2010-RS740-SB710-6A669G0BC-00
Note
GA-MA74GM-S2
Core version
6.00PG
BIOS version
Logs
POST string
07/23/2010-RS740-SB710-6A669G0BC-00
Note
GA-MA74GM-S2
Core version
6.00PG
BIOS version
Logs
drv No drivers available

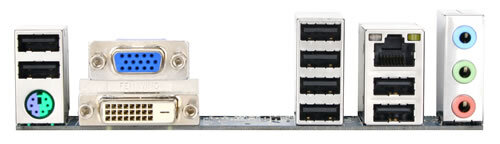

image1 Image 1 of 3 (Gigabyte)

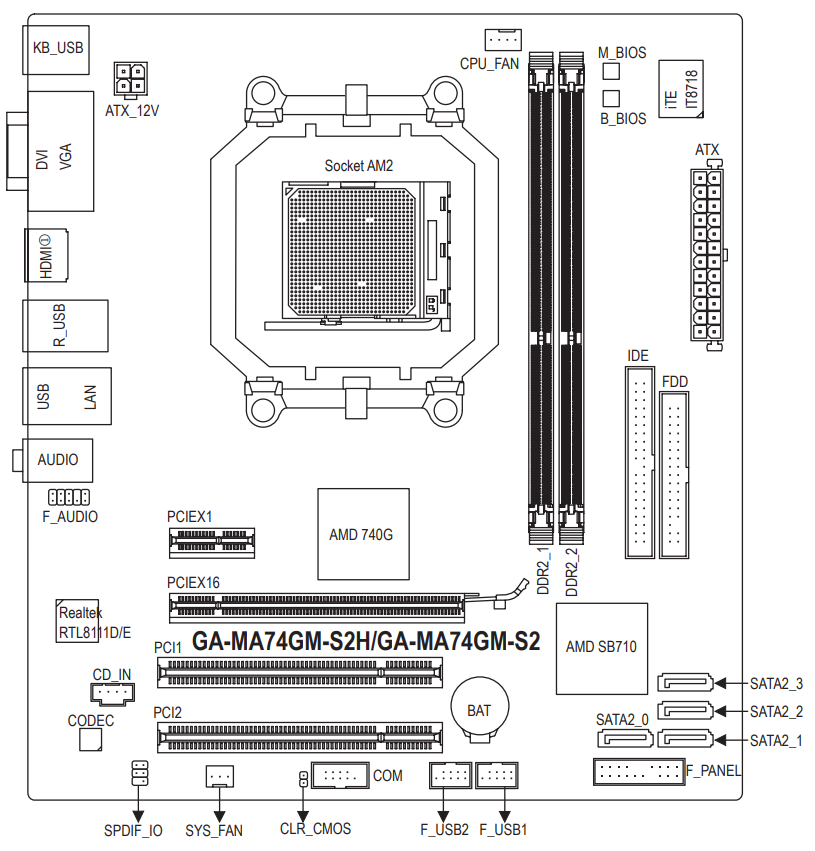

image2 Image 2 of 3 (Gigabyte)
image3 Image 3 of 3 (Gigabyte)
