Gigabyte GA-MA74GM-S2H (rev. 4.1)
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
243mm x 220mm
ramMax VRAM size
512MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as

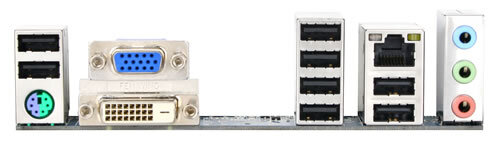

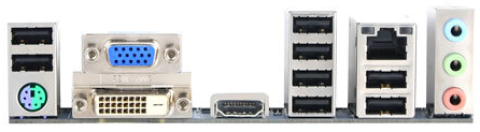

connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
12x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
notes Notes

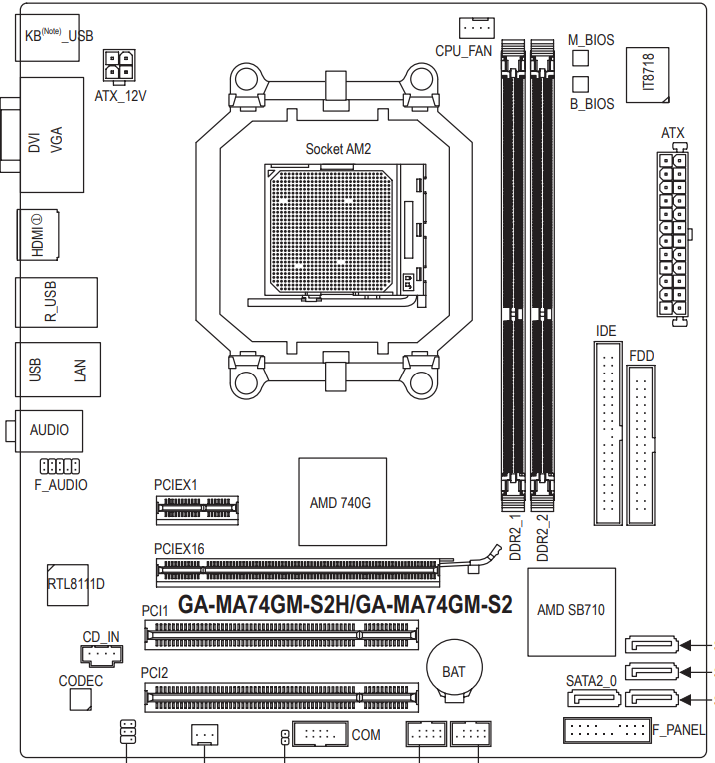

  • GA-MA74GM-S2H (HDMI)
  • GA-MA74GM-S2 (no HDMI)
Last updated 2025-07-22T18:35:01Z
Board info score is 9/10
bios 14 BIOS files available

vendor Award - 14 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/31/2010-RS740-SB710-6A669G0BC-00
Note
GA-MA74GM-S2
Core version
6.00PG
BIOS version
Logs
POST string
08/25/2010-RS740-SB710-6A669G0BC-00
Note
GA-MA74GM-S2
Core version
6.00PG
BIOS version
Logs
POST string
08/03/2010-RS740-SB710-6A669G0BC-00
Note
GA-MA74GM-S2
Core version
6.00PG
BIOS version
Logs
POST string
07/23/2010-RS740-SB710-6A669G0BC-00
Note
GA-MA74GM-S2
Core version
6.00PG
BIOS version
Logs
POST string
06/14/2010-RS740-SB710-6A669G0BC-00
Note
GA-MA74GM-S2
Core version
6.00PG
BIOS version
Logs
POST string
05/20/2010-RS740-SB710-6A669G0BC-00
Note
GA-MA74GM-S2
Core version
6.00PG
BIOS version
Logs
POST string
08/26/2010-RS740-SB710-6A669G0AC-00
Note
GA-MA74GM-S2H, (Beta Version)
Core version
6.00PG
BIOS version
Logs
POST string
04/16/2010-RS740-SB710-6A669G0BC-00
Note
GA-MA74GM-S2
Core version
6.00PG
BIOS version
Logs
POST string
06/14/2010-RS740-SB710-6A669G0AC-00
Note
GA-MA74GM-S2H
Core version
6.00PG
BIOS version
Logs
POST string
04/12/2010-RS740-SB710-6A669G0BC-00
Note
GA-MA74GM-S2
Core version
6.00PG
BIOS version
Logs
POST string
05/20/2010-RS740-SB710-6A669G0AC-00
Note
GA-MA74GM-S2H
Core version
6.00PG
BIOS version
Logs
POST string
03/18/2010-RS740-SB710-6A669G0BC-00
Note
GA-MA74GM-S2
Core version
6.00PG
BIOS version
Logs
POST string
04/16/2010-RS740-SB710-6A669G0AC-00
Note
GA-MA74GM-S2H
Core version
6.00PG
BIOS version
Logs
POST string
01/15/2010-RS740-SB710-6A669G0BC-00
Note
GA-MA74GM-S2
Core version
6.00PG
BIOS version
Logs
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
2009-08
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

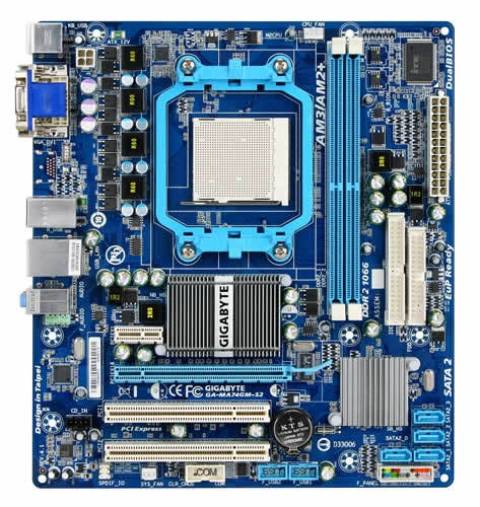

image1 Image 1 of 5 (Gigabyte)
image2 Image 2 of 5 (Gigabyte)
image3 Image 3 of 5 (Gigabyte)
image4 Image 4 of 5 (Gigabyte)
image5 Image 5 of 5 (Gigabyte)
