Gigabyte GA-M720-US3 (rev. 1.1)
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 215mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB(DDR2-1066)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
3x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
2x
S/PDIF
6x
SATA II
1x
Serial
1x
Toslink
12x
USB 2.0
cardExpansion slots
4x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
Last updated 2025-07-22T18:32:14Z
Board info score is 8.6/10
bios 5 BIOS files available

vendor Award - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/07/2010-NF-MCP78-6A61OG06C-00
Note
Beta BIOS
Core version
6.00PG
BIOS version
Logs
POST string
09/16/2009-NF-MCP78-6A61OG06C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/19/2009-NF-MCP78-6A61OG06C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/18/2009-NF-MCP78-6A61OG06C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/05/2009-NF-MCP78-6A61OG06C-00
Note
Core version
6.00PG
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
2008-12
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-02
File
Logs

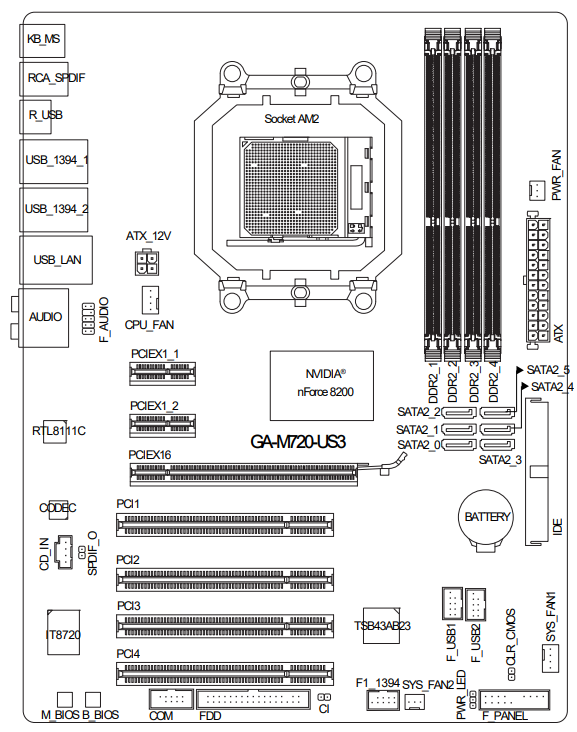

image1 Image 1 of 3 (Gigabyte)

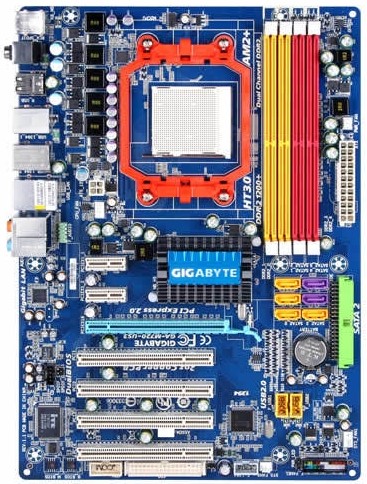

image2 Image 2 of 3 (Gigabyte)

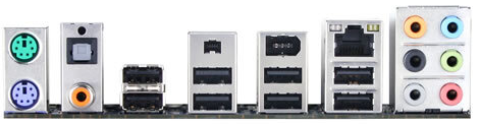

image3 Image 3 of 3 (Gigabyte)
