Gigabyte GA-K8U (rev. 1.x)
Logs
chipChipset
cpuSocket
Socket 754 (mPGA754)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 183mm
chipCache
None/Integrated in the CPU
ramMax RAM size
3GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)

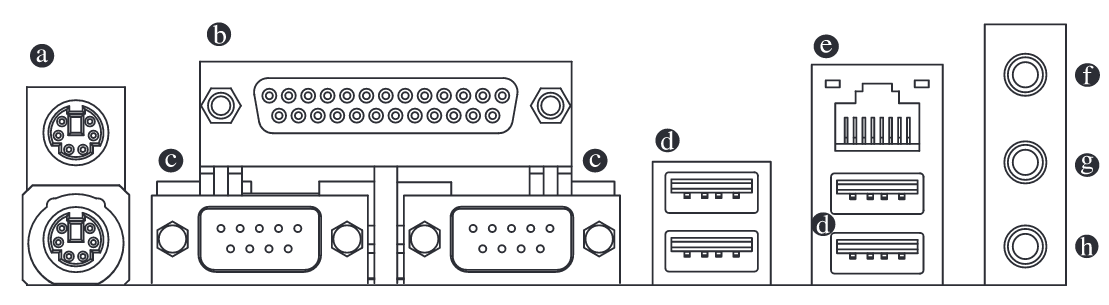

connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
2x
SATA I
2x
Serial
8x
USB 2.0
cardExpansion slots
1x
1.5V AGP
5x
32-bit PCI
Last updated 2025-08-13T22:13:17Z
Board info score is 9.4/10
chip Chips
-> Chipset part
ULi M1689
-> Audio
Realtek ALC850 (AC97)
-> Network
Realtek RTL8100C (PCI Fast Ethernet)
-> Super I/O
SMSC/SMC LPC47M997
cpufam CPU family support
bios 6 BIOS files available

vendor Award - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
07/21/2005-M1689D-6A7K4G01C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
04/25/2005-M1689D-6A7K4G01C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
04/15/2005-M1689D-6A7K4G01C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
03/03/2005-M1689D-6A7K4G01C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
02/25/2005-M1689D-6A7K4G01C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
01/28/2005-M1689D-6A7K4G01C-00
Note
Core version
v6.00PG
BIOS version
Logs
drv 10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86 , PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
490.9KB
Filename
Name
Version
2.30
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86 , x86-64
Size
1.5MB
Filename
Name
Version
1.0
OS support
Windows 7 Windows Vista
Arch
x86 , x86-64
Size
2.1MB
Filename
Name
Version
2.30
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
1.5MB
Filename
Name
Version
3.10
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
1.6MB
Filename
Name
Version
1.51
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
1.3MB
Filename
Name
Version
1.0.5.9
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
Size
5.3MB
Filename
Name
Version
5.09
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
28.1MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-11-05
File
Logs

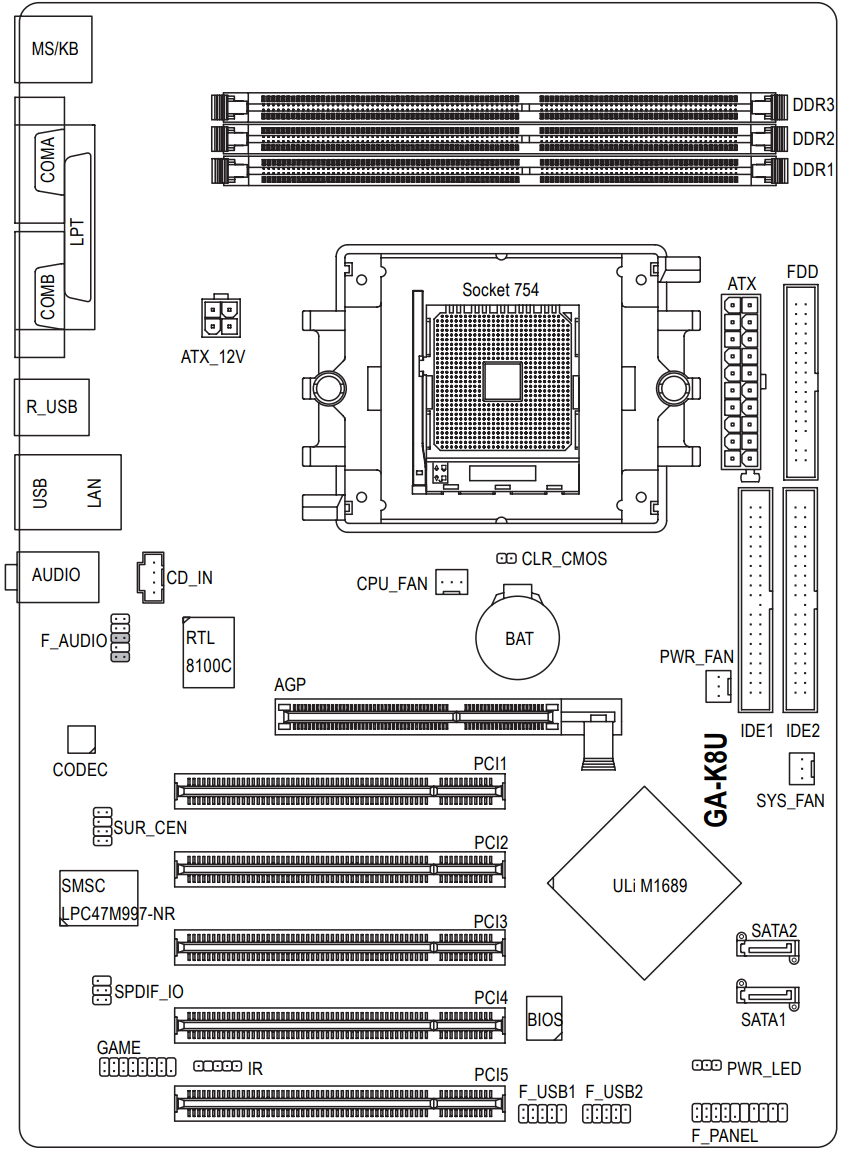

image1 Image 1 of 5 (Gigabyte)

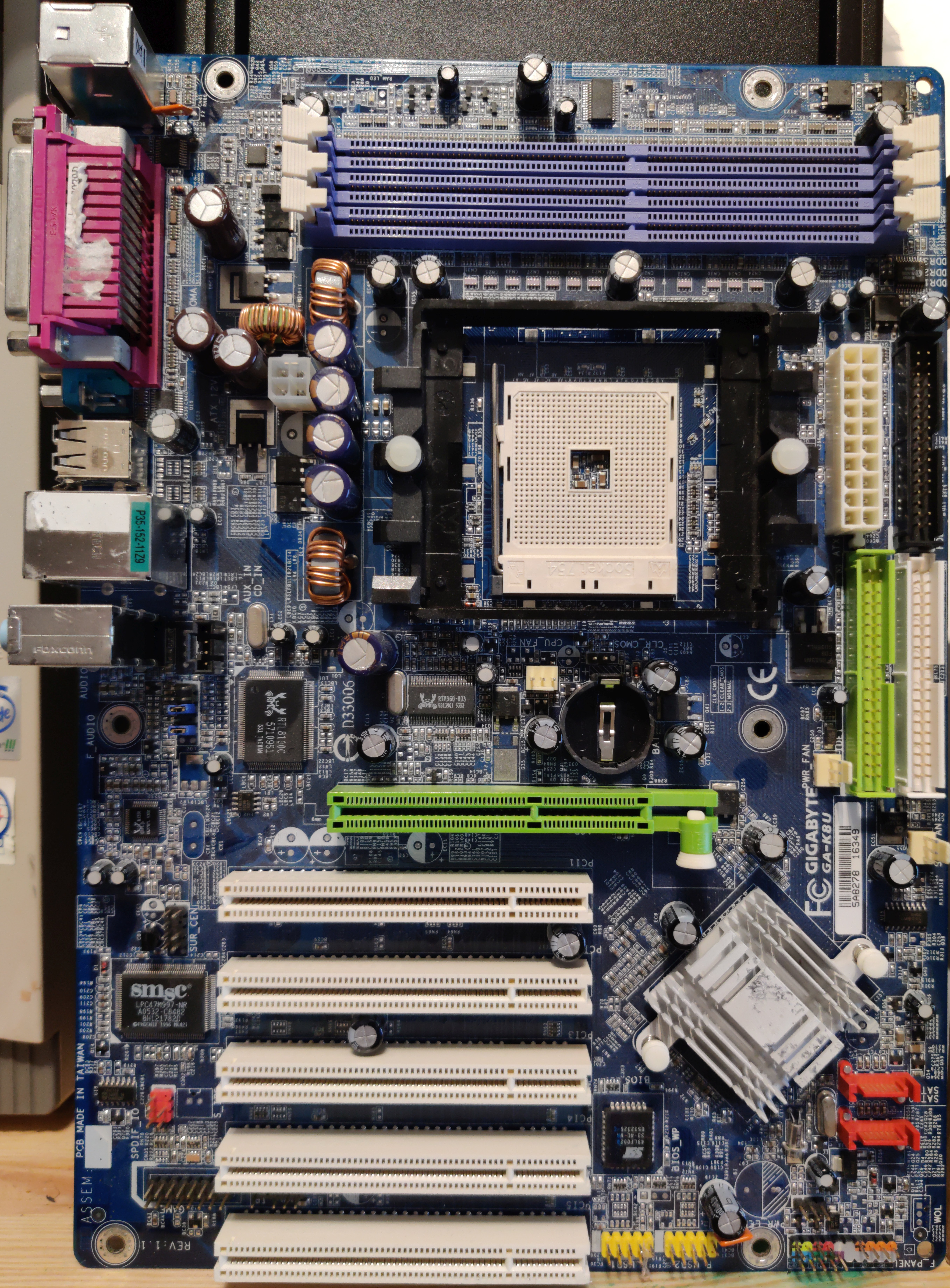

image2 Image 2 of 5 (Eric Voirin (oerg866))

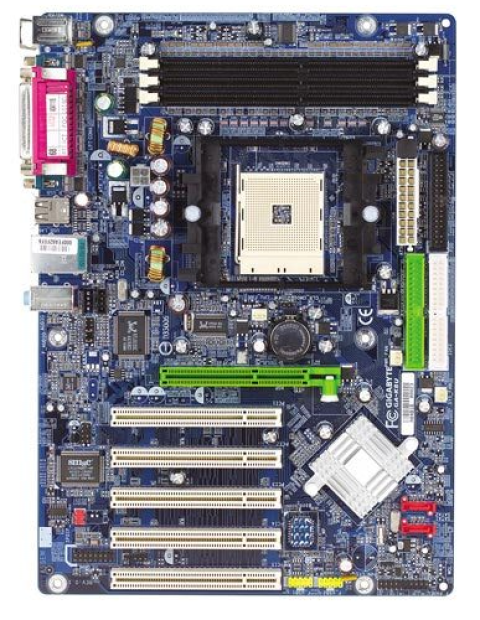

image3 Image 3 of 5 (Gigabyte)

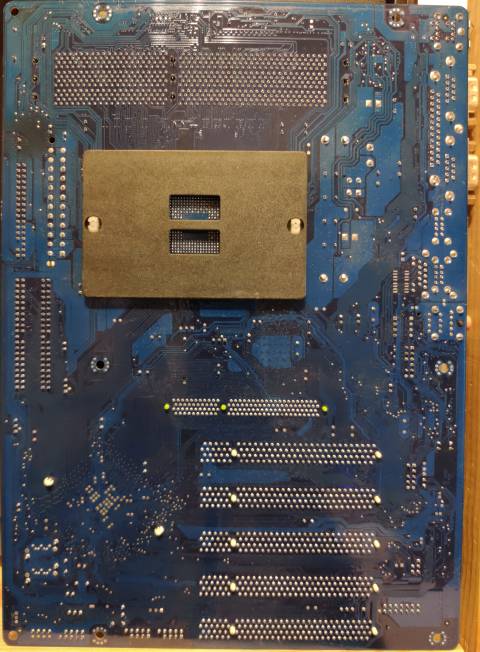

image4 Image 4 of 5 (Eric Voirin (oerg866))
image5 Image 5 of 5 (Gigabyte)
