Gigabyte GA-J1900M-D3P (rev. 1.0)
Logs
chipChipset
cpuSocket
FCBGA1170 (BGA1170)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
226mm x 180mm
ramMax VRAM size
2GB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB(1333Mhz)
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
HDMI
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
2x
SATA II
2x
Serial
8x
USB 2.0
1x
USB 3.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
PCIe x1
1x
PCIe x16 @ x1
Last updated 2025-07-08T13:05:57Z
Board info score is 9.2/10
bios 8 BIOS files available

vendor AMI - 8 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-121412-Chipset-0AAAA000
Note
GA-J1900M-D3P
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-121412-Chipset-0AAAA000
Note
GA-J1800M-D3P
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-121412-Chipset-0AAAA000
Note
GA-J1900M-D3P
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-121412-Chipset-0AAAA000
Note
GA-J1900M-D3P
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-121412-Chipset-0AAAA000
Note
GA-J1800M-D3P
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-121412-Chipset-0AAAA000
Note
GA-J1800M-D3P
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-121412-Chipset-0AAAA000
Note
GA-J1900M-D3P
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-121412-Chipset-0AAAA000
Note
GA-J1800M-D3P
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
2015-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-07-24
File
Logs
Chip
Release date
2010-08-03
File
Logs
Chip
Release date
2012-09-25
File
Logs
Chip
Release date
2011-03
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

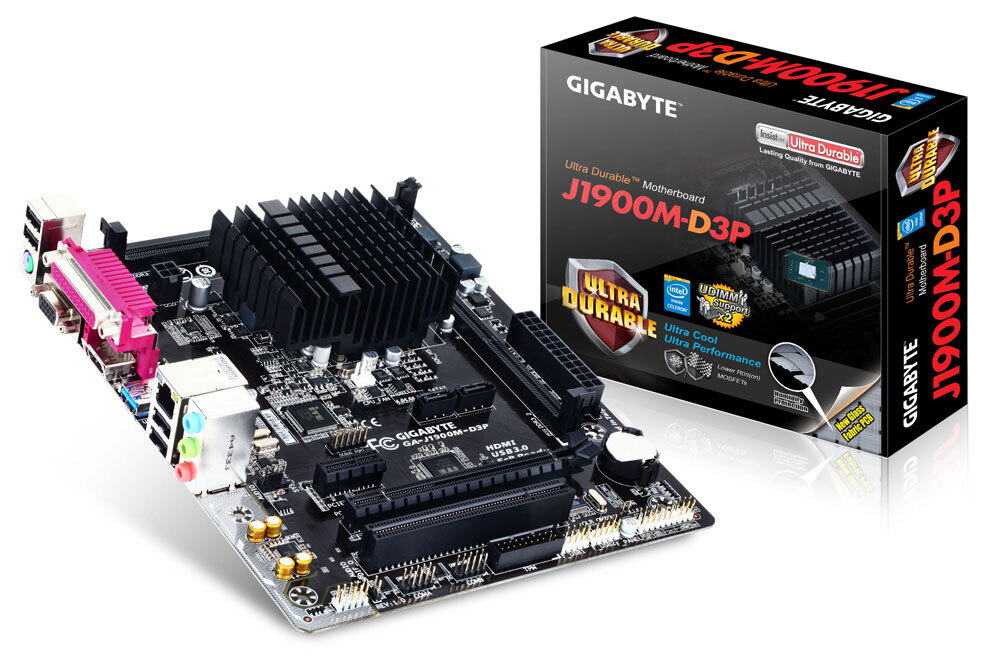

image1 Image 1 of 5 (Gigabyte)

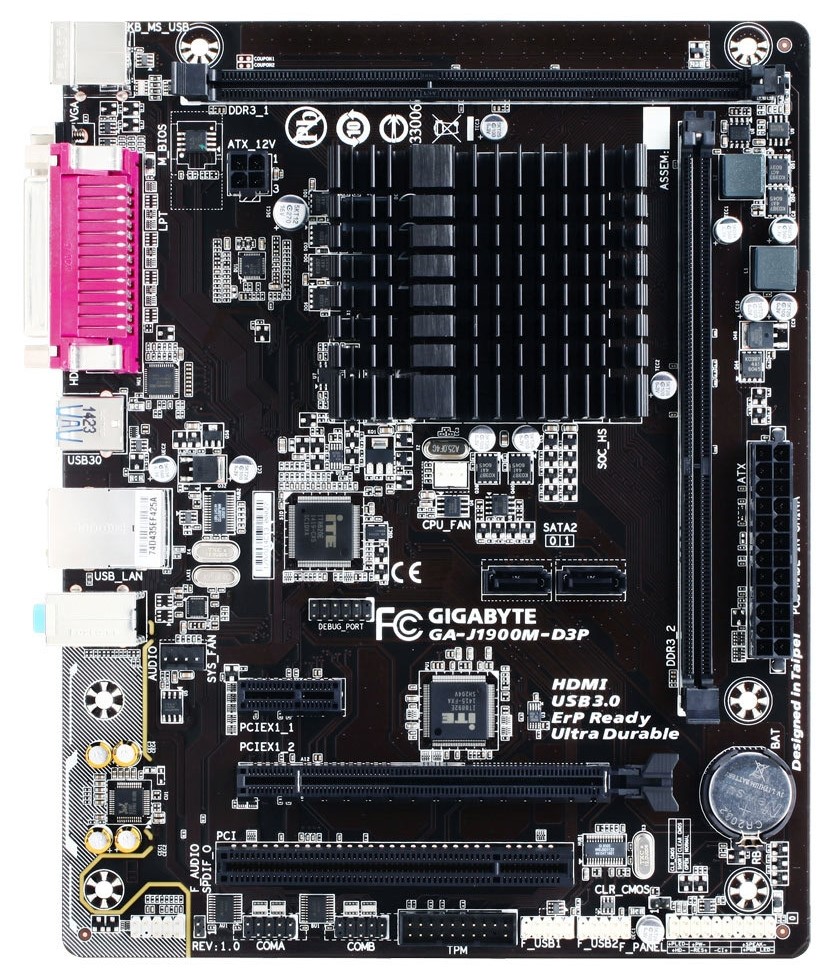

image2 Image 2 of 5 (Gigabyte)

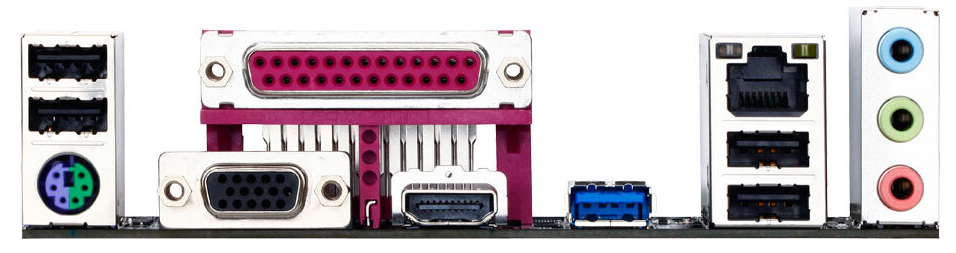

image3 Image 3 of 5 (Gigabyte)

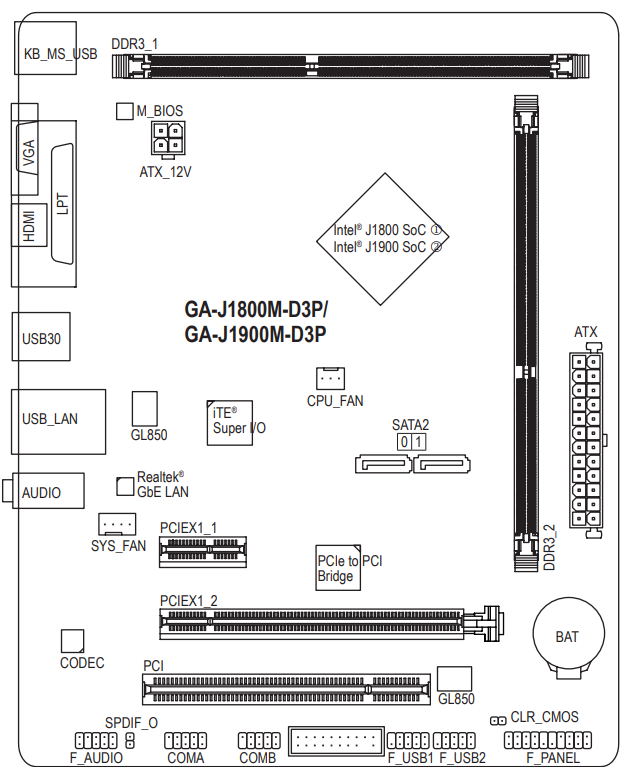

image4 Image 4 of 5 (Gigabyte)

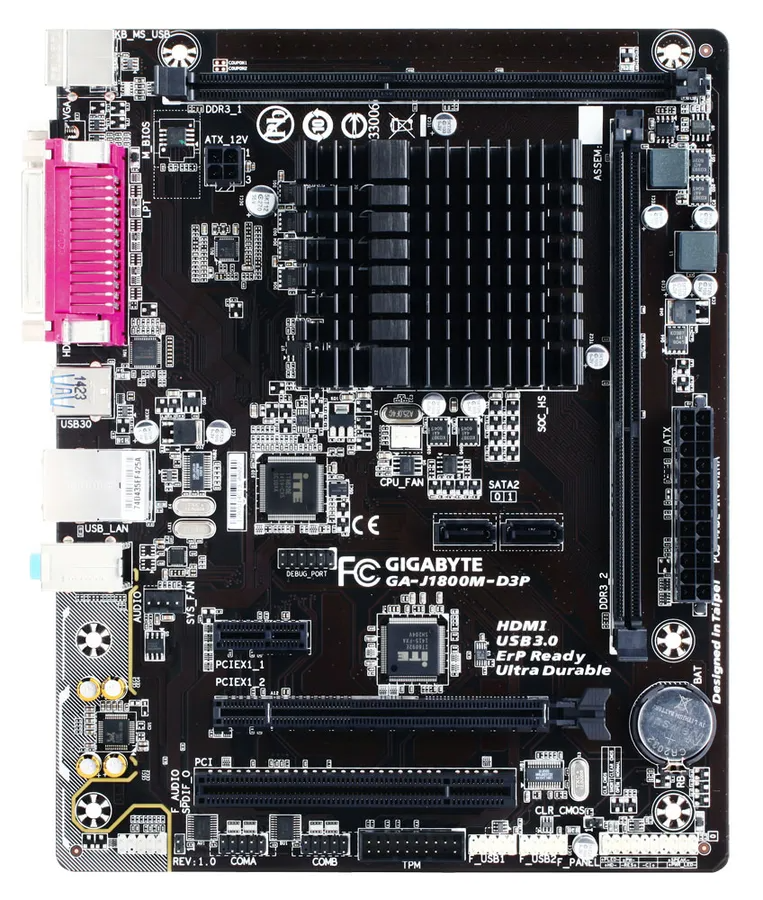

image5 Image 5 of 5 (Gigabyte)
