Gigabyte GA-H55M-UD2H (rev. 1.0)
Chipset
Socket
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
Dimensions244mm x 230mm
Cache
None/Integrated in the CPU
Max RAM size
16GB
RAM type DDR3 UDIMM
PSU connector

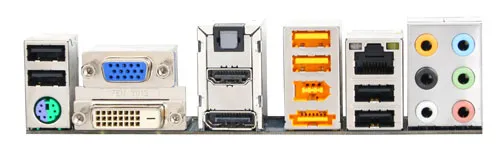

I/O ports1x
3.5mm Audio Combo
1x
DVI
1x
DisplayPort
2x
FireWire 400
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
5x
SATA II
1x
Serial
1x
Toslink
12x
USB 2.0
1x
VGA
1x
eSATA II
Expansion slots2x
32-bit PCI
1x
PCIe x16
1x
PCIe x16 @ x4
Notes
Rev. 1.0 has Realtek RTL8111D LAN
Rev. 1.3 has Realtek RTL8111E LAN
Last updated 2023-08-03T18:14:43Z
Board info score is 9.2/10
Chips
-> Chipset part
-> Audio
-> FireWire ctrl.
-> IDE ctrl.
-> Network
-> Super I/O
CPU family support
9 BIOS files available
Award - 9 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R1.17.39
OS support
Windows 2000
Windows Vista
Windows XP/2k3
Arch
x86
, x86-64
Size
3.8MB
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
2 board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2010-07
File
Logs
Family
Release date
2009-09
File
Logs
Family
Release date
2015-02
File
Logs
Family
Release date
2011-03
File
Logs

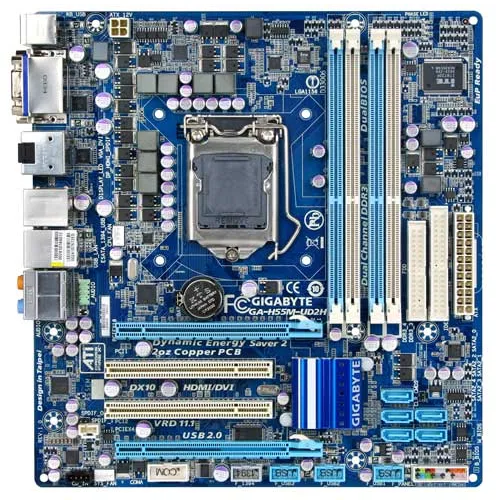

Image 1 of 4 (Gigabyte)
Image 2 of 4 (Gigabyte)

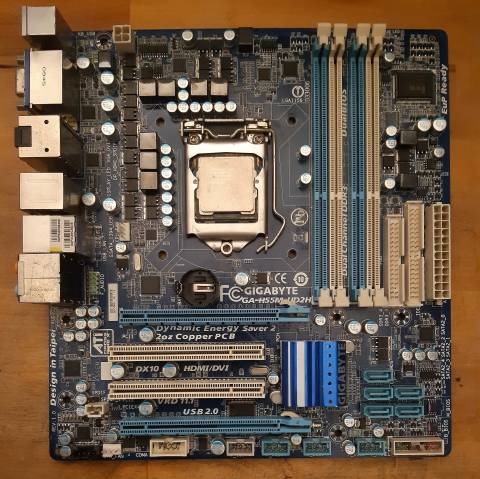

Image 3 of 4 (Carlos S. M.)
Image 4 of 4 (Gigabyte)
