Gigabyte GA-F2A88XM-HD3P (rev. 1.0)
Logs
chipChipset
cpuSockets
Socket FM2 (PGA904) Socket FM2+ (PGA906)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 185mm
chipCache
None/Integrated in the CPU
ramMax RAM size
64GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
HDMI
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
8x
SATA III
1x
Serial
6x
USB 2.0
4x
USB 3.0
2x
USB 3.1 Type-A
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x4
Last updated 2025-09-12T11:46:22Z
Board info score is 8.6/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-07-24
File
Logs
Chip
Release date
2010-08-03
File
Logs

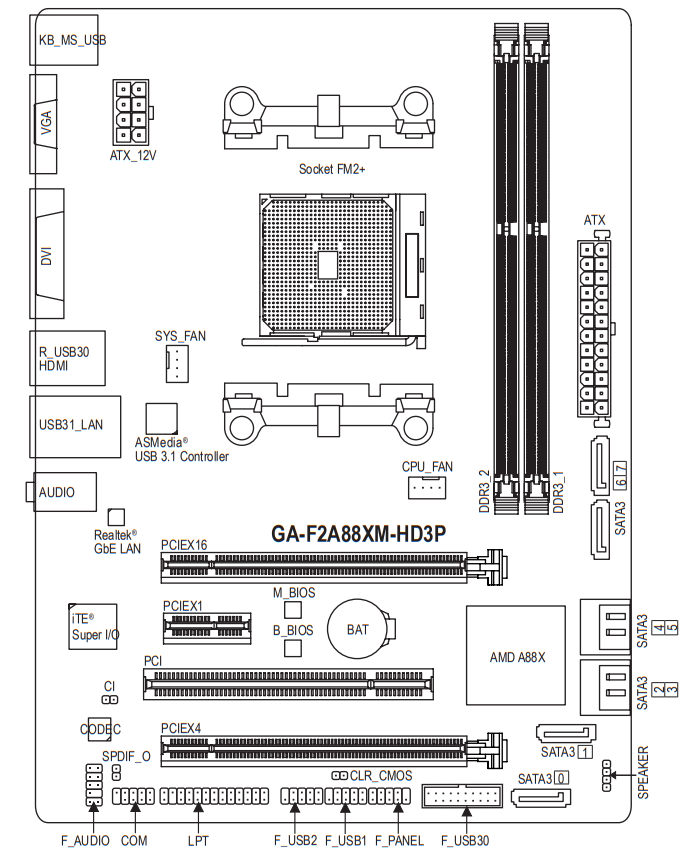

image1 Image 1 of 4 (Gigabyte)

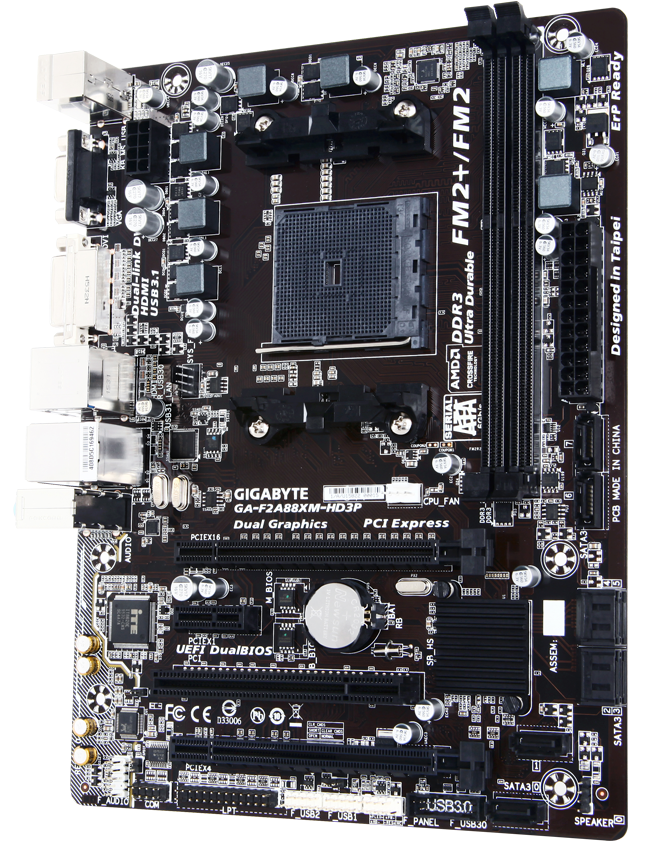

image2 Image 2 of 4 (Gigabyte)

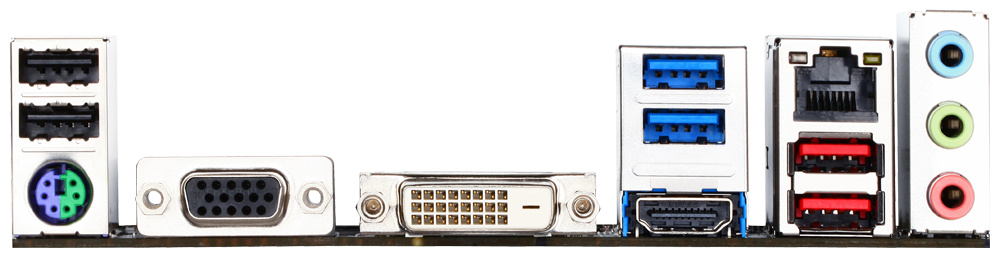

image3 Image 3 of 4 (Gigabyte)

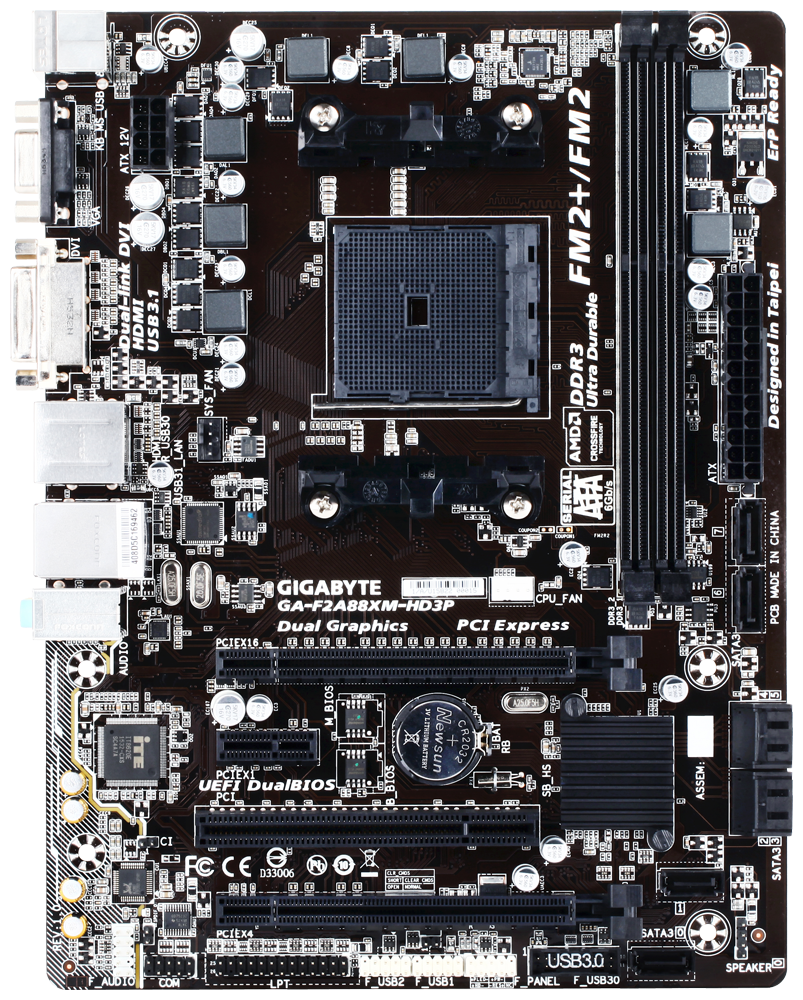

image4 Image 4 of 4 (Gigabyte)
