Gigabyte GA-F2A58-DS3 (rev. 3.x)
Logs
chipChipset
cpuSockets
Socket FM2 (PGA904) Socket FM2+ (PGA906)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 190mm
chipCache
None/Integrated in the CPU
ramMax RAM size
64GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
14x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
4x
PCIe x1
1x
PCIe x16
Last updated 2025-07-25T21:19:13Z
Board info score is 8.7/10
chip Chips
-> Chipset part
AMD A58 (Bolton-D2 FCH)
cpufam CPU family support
bios 3 BIOS files available

vendor AMI - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Beta Version
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs

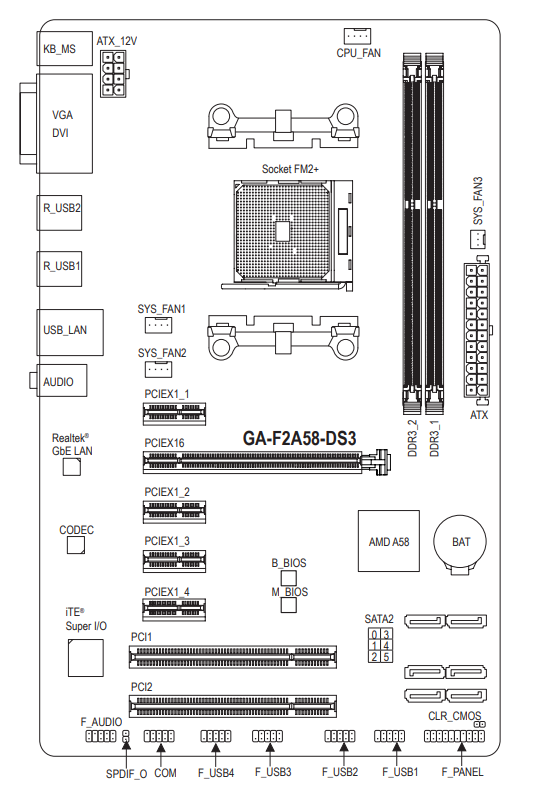

image1 Image 1 of 4 (Gigabyte)

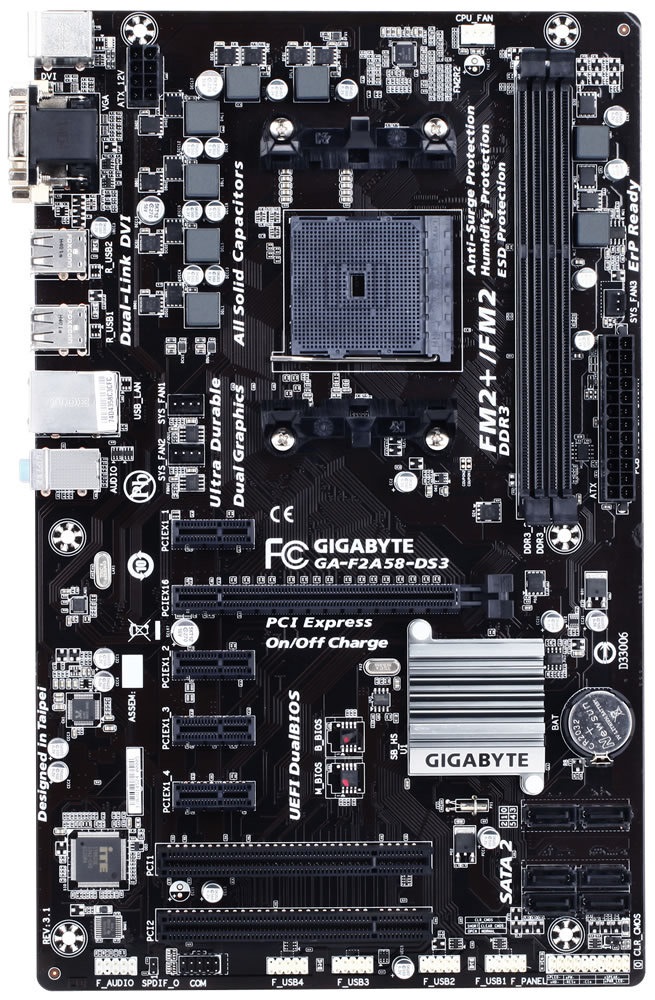

image2 Image 2 of 4 (Gigabyte)

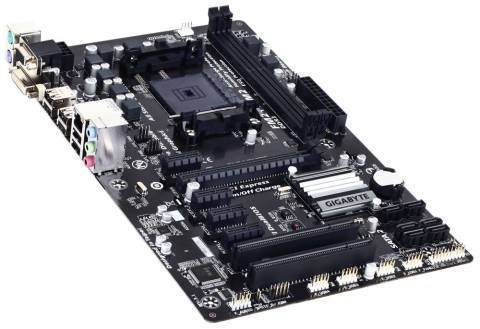

image3 Image 3 of 4 (Gigabyte)

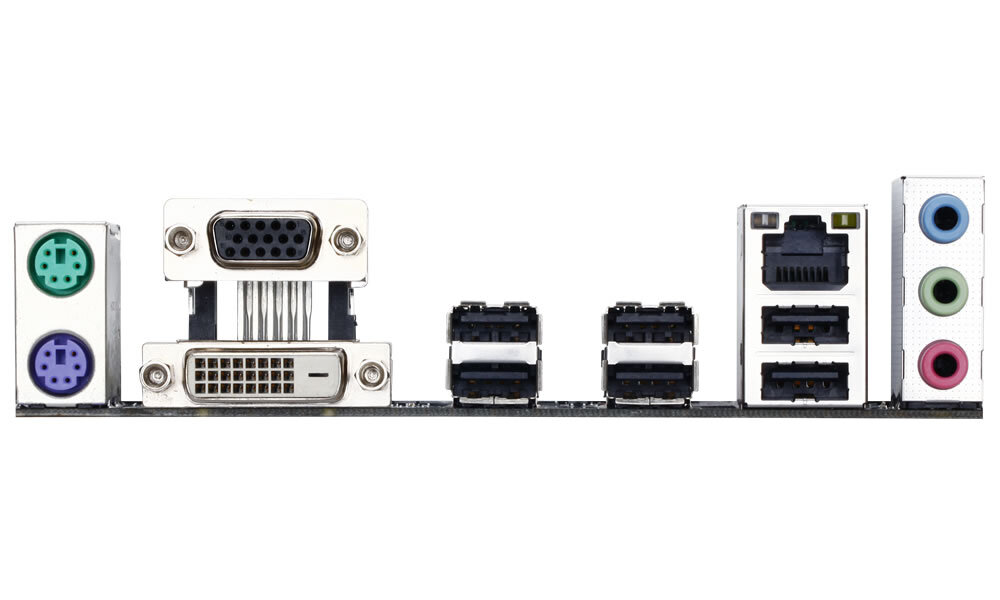

image4 Image 4 of 4 (Gigabyte)
