Gigabyte GA-F2A55M-DS2 (rev. 3.0)
Logs
chipChipset
cpuSockets
Socket FM2 (PGA904) Socket FM2+ (PGA906)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
225mm x 174mm
chipCache
None/Integrated in the CPU
ramMax RAM size
64GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

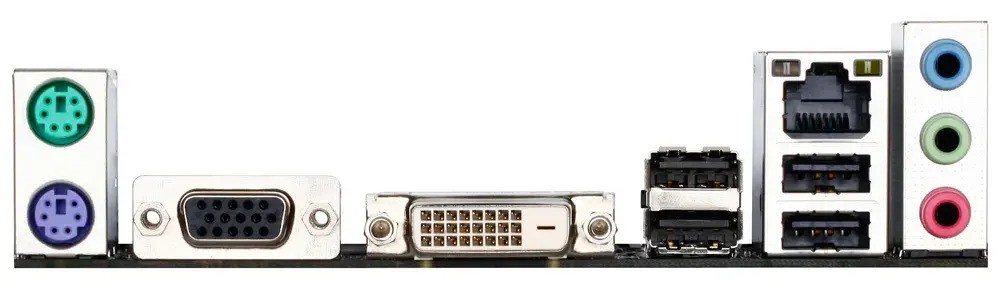

connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-07-26T11:58:58Z
Board info score is 9.2/10
bios 6 BIOS files available

vendor AMI - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Update APU AGESA code (BETA BIOS)
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Update APU AGESA 1.1.0.2
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Improve memory compatibility
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-041312-Chipset-0AAAA000
Note
Update AGESA code for FM2+ APU support
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
Modify DualBIOS function compatibility
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
First release
Core version
UEFI
BIOS version
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
10.001.0505.2015
OS support
Windows 10
Arch
x86 , x86-64
Size
9.4MB
Filename
Name
Version
7.082.0317.2014
OS support
Windows 7
Arch
x86 , x86-64
Size
3.7MB
Filename
Name
Version
8.029.0314.2014
OS support
Windows 8.x
Arch
x86 , x86-64
Size
3.6MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
2013-11-20
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-07-24
File
Logs
Chip
Release date
2010-08-03
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-02-11
File
Logs
Chip
Release date
2011-02-11
File
Logs

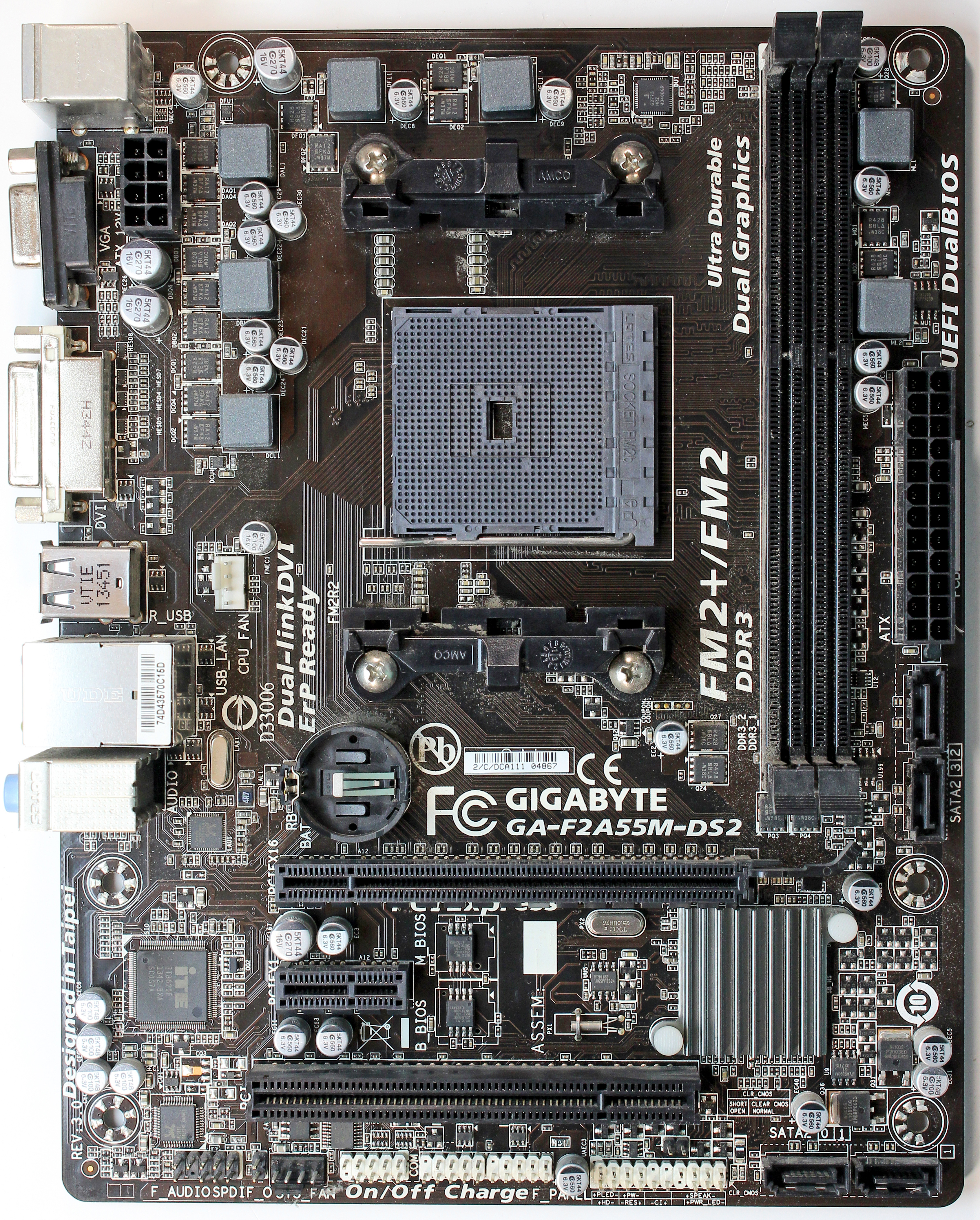

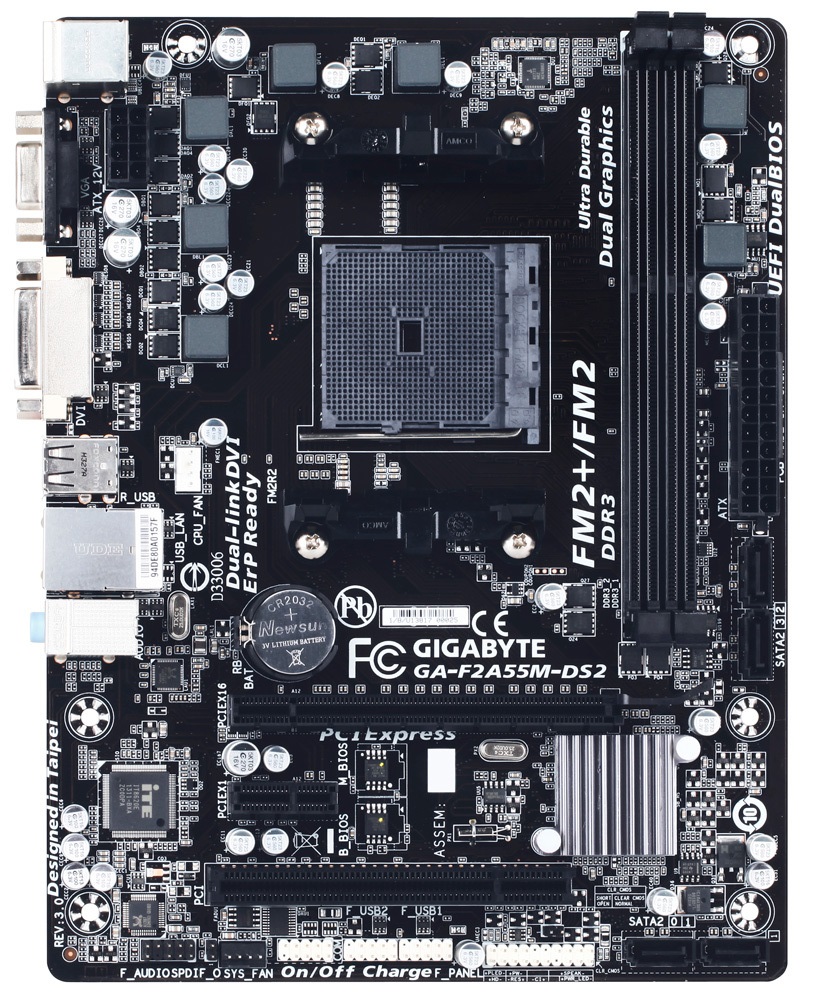

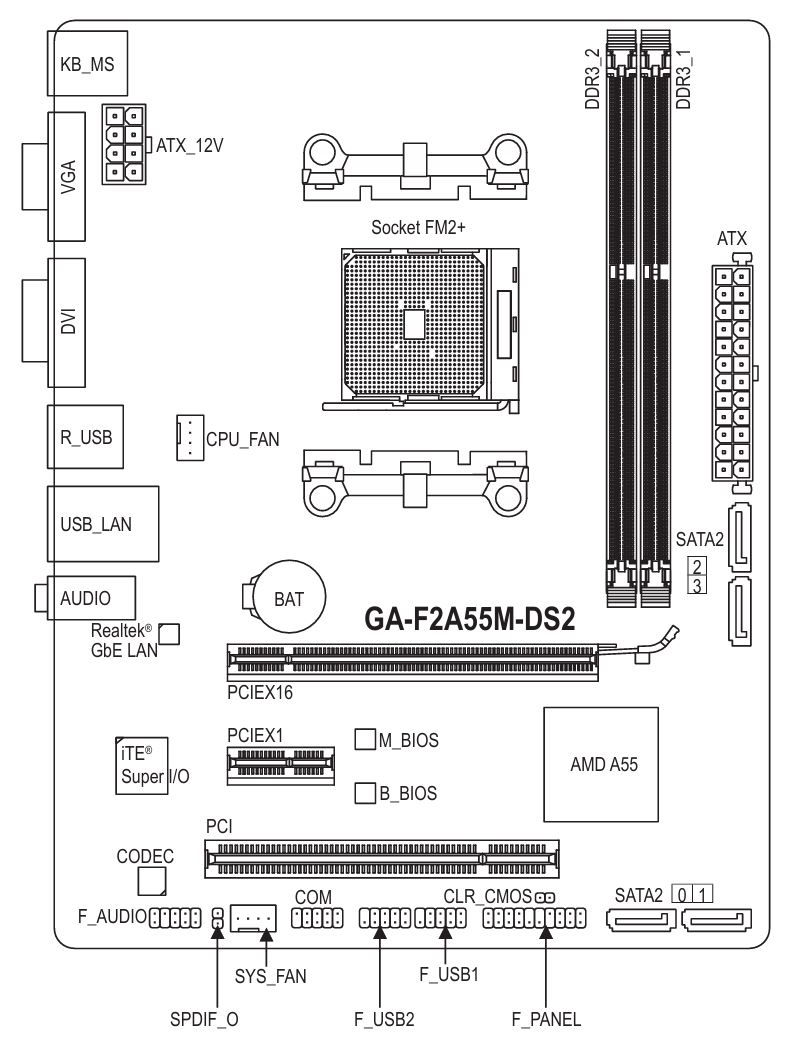

image1 Image 1 of 4 (Gigabyte)
image2 Image 2 of 4 (computerguy096)
image3 Image 3 of 4 (Gigabyte)
image4 Image 4 of 4 (Gigabyte)
