Gigabyte GA-C1007UN (rev. 1.0)
Logs
chipChipset
cpuSocket
FCBGA1023 (BGA1023)
speedFSB speed
Empty
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170mm x 170mm
ramMax VRAM size
1GB
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB(1333/1066)
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
HDMI
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
2x
SATA II
1x
SATA III
2x
Serial
8x
USB 2.0
1x
VGA
1x
eSATA II
cardExpansion slots
1x
32-bit PCI
Last updated 2026-01-06T08:10:37Z
Board info score is 9.2/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R1.17.39
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
3.8MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
2012-12
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-07-24
File
Logs
Chip
Release date
2010-08-03
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-10-12
File
Logs

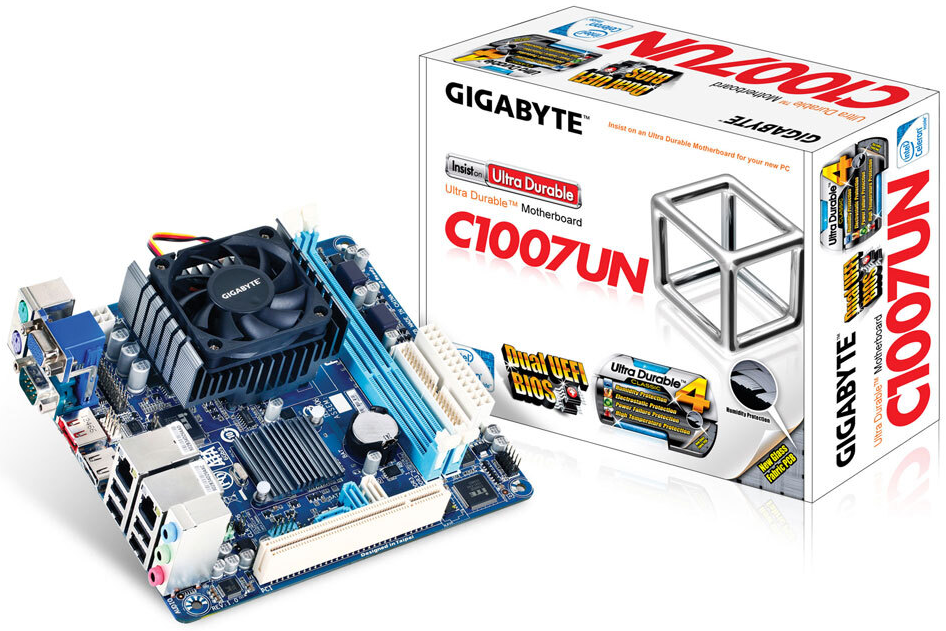

image1 Image 1 of 4 (Gigabyte)

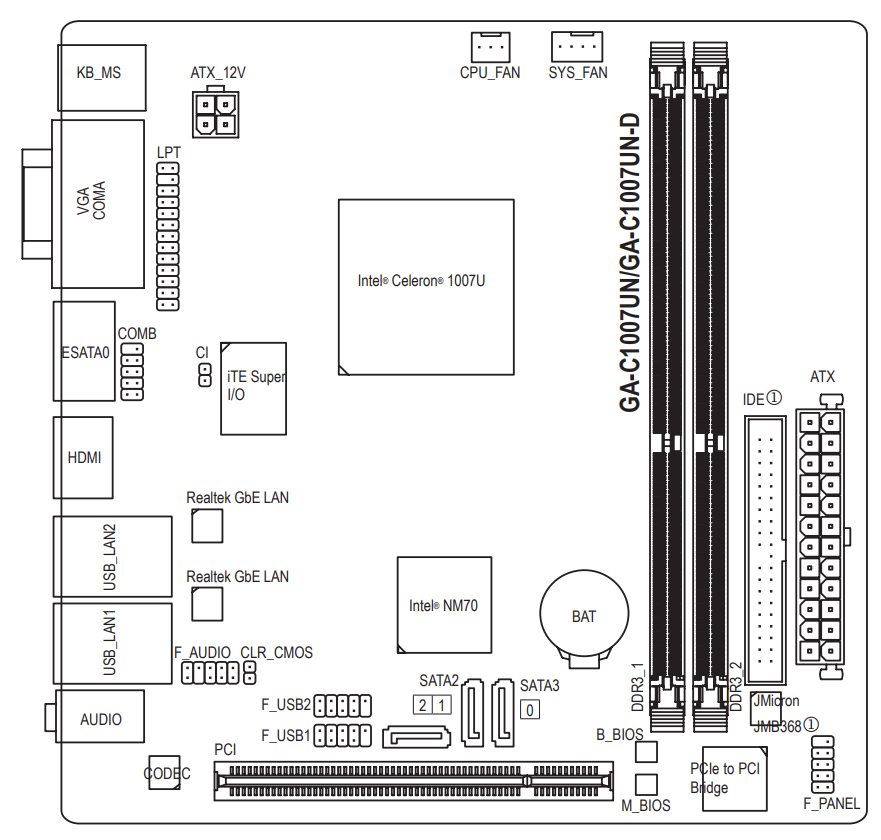

image2 Image 2 of 4 (Gigabyte)

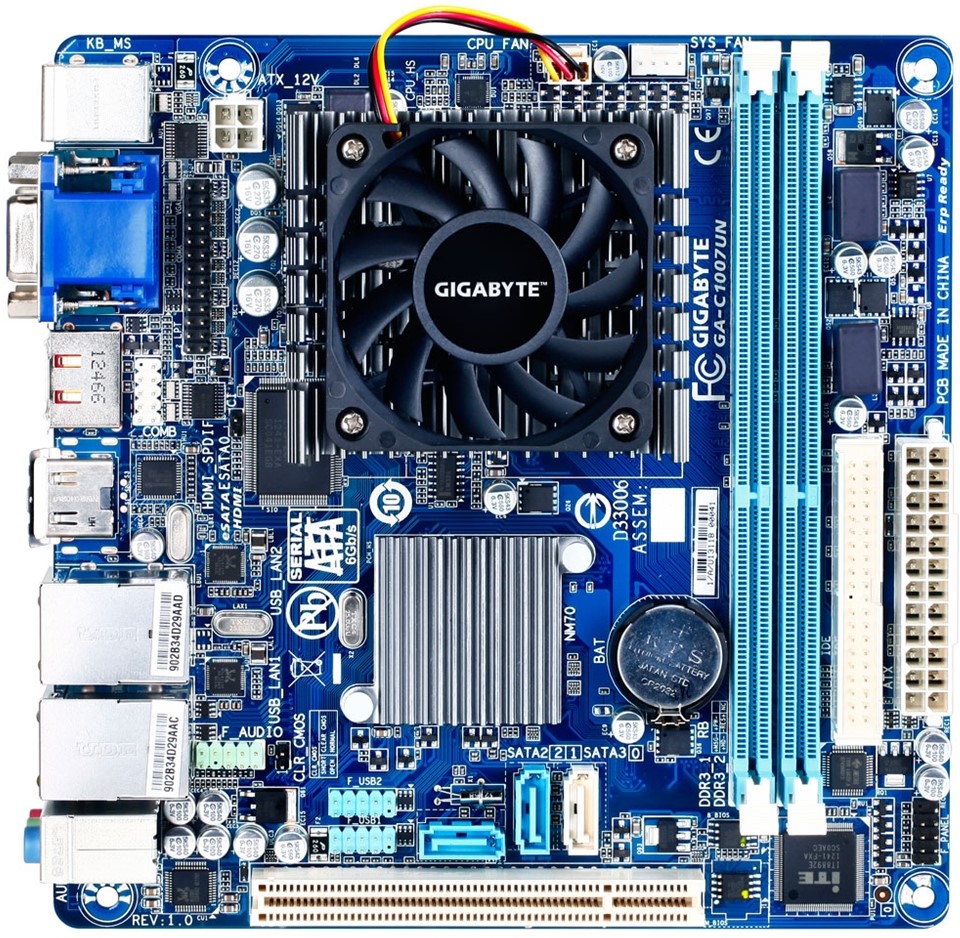

image3 Image 3 of 4 (Gigabyte)
image4 Image 4 of 4 (Gigabyte)
