Gigabyte GA-A75M-DS2 (rev. 2.0)
Logs
chipChipset
cpuSocket
Socket FM1 (PGA905)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
225mm x 174mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
4x
SATA III
8x
USB 2.0
4x
USB 3.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-05-01T08:26:47Z
Board info score is 9.2/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
03/27/2012-Llano-Hudson-7A66HG0NC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
10.001.0505.2015
OS support
Windows 10
Arch
x86 , x86-64
Size
9.4MB
Filename
Name
Version
7.082.0317.2014
OS support
Windows 7
Arch
x86 , x86-64
Size
3.7MB
Filename
Name
Version
8.029.0314.2014
OS support
Windows 8.x
Arch
x86 , x86-64
Size
3.6MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
2012-04-18
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-07-24
File
Logs
Chip
Release date
2010-08-03
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-02-11
File
Logs
Chip
Release date
2011-02-11
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2011-08
File
Logs

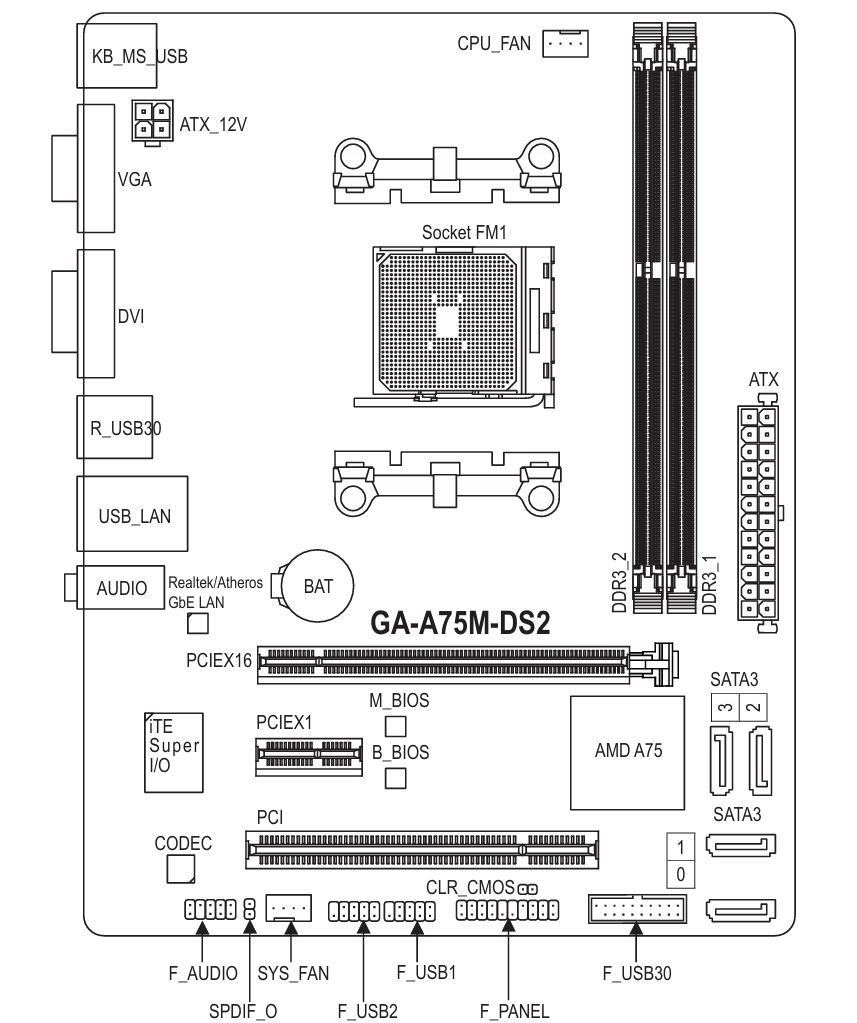

image1 Image 1 of 3 (Gigabyte)

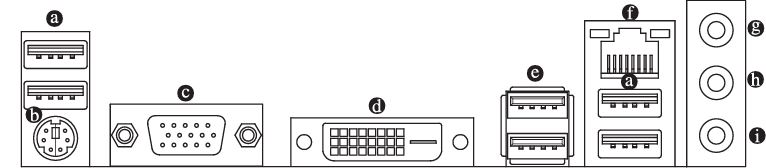

image2 Image 2 of 3 (computerguy096)

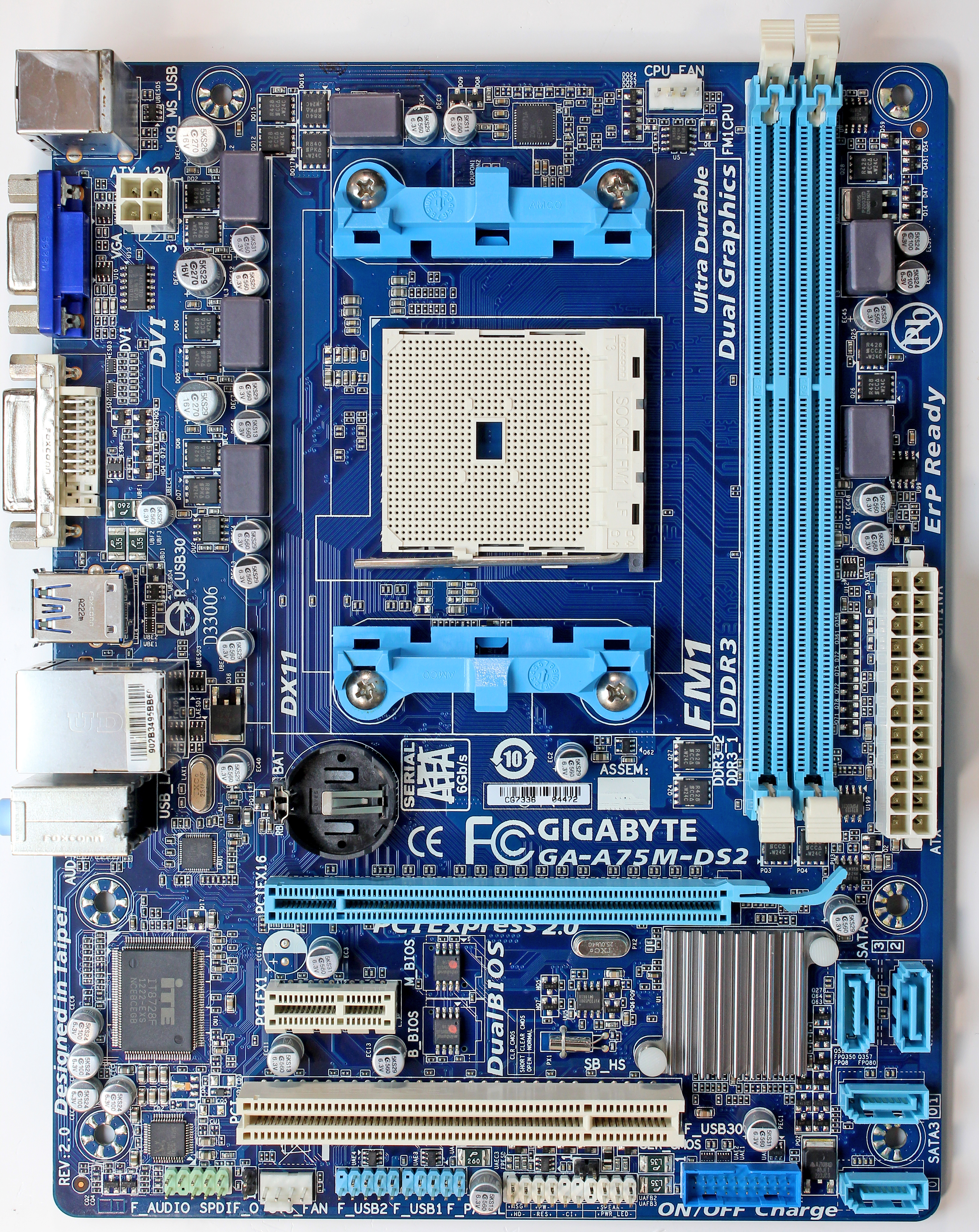

image3 Image 3 of 3 (Gigabyte)
