Gigabyte GA-945GM-S2 (rev. 3.x)
Logs
chipChipset
cpuSocket
Socket T (LGA775)
speedFSB speeds
533MHz800MHz1066MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 234mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • Beko PC system board (multiple models, see below)
  • Arçelik PC system board (multiple models, see below)
  • Keysmart PC M859 system board
  • Vestel ONYX GAME E220 system board

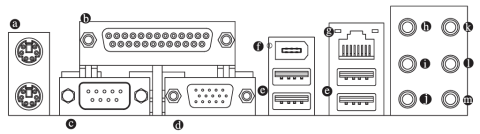

connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
notes Notes

This mainboard was used in the following computers:

  • Arçelik PC 5364 DC

  • Arçelik PC 5374 DC

  • Arçelik PC 5437 DC

  • Arçelik PC 5633 C2D

  • Beko PC 9364 DC

  • Beko PC 9374 DC

  • Keysmart PC M859

  • Vestel ONYX GAME E220

WARNING: The retail Gigabyte BIOS seems to be partly incompatible with the Arçelik/Beko/Keysmart variants (unsure if Vestel is compatible) as it has been reported online that flashing the retail version causes voltage/temperature sensor issues, including wrong Vcore voltage read and CPU throttling.

If you have a working Arçelik/Beko/Keysmart or Vestel OEM mainboard with the original BIOS, please contact us as BIOS dumps are needed for them.

Last updated 2026-01-07T17:03:02Z
Board info score is 9.6/10
bios 3 BIOS files available

vendor Award - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
04/08/2008-(unknown)
Note
Beko OEM
Core version
6.00PG
BIOS version
FDa BK
Logs
POST string
08/24/2007-I945-6A79TG0VC-00
Note
Vestel OEM
Core version
6.00PG
BIOS version
FC
Logs
POST string
05/28/2007-I945-6A79TG0VC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/26/2007-I945-6A79TG0VC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/08/2007-I945-6A79TG0VC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.17.0.4396
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
14.32.4
OS support
Windows 2000 Windows XP/2k3
Arch
Size
47.9MB
Filename
Name
Version
14.25.50
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
2007-05-03
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008
File
Logs
Chip
Release date
2007-04
File
Logs
Chip
Release date
2005-04
File
Logs
Chip
Release date
2012-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2007-03
File
Logs
Family
Release date
2008-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2009-06
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2007-06
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2005-02
File
Logs
Family
Release date
2005-05
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
2007-01
File
Logs
Family
Release date
2007-07
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-10
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2006-02
File
Logs
Socket
Release date
2004
File
Logs

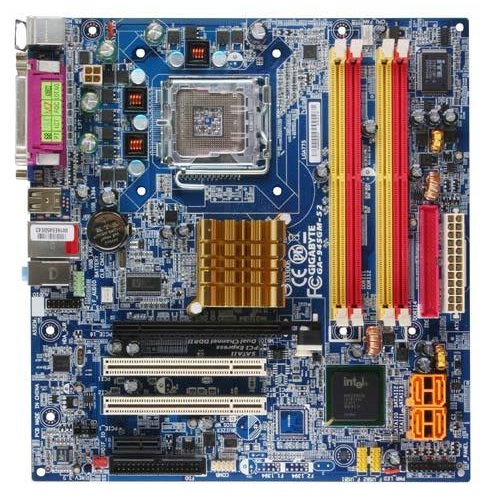

image1 Image 1 of 3 (Gigabyte)

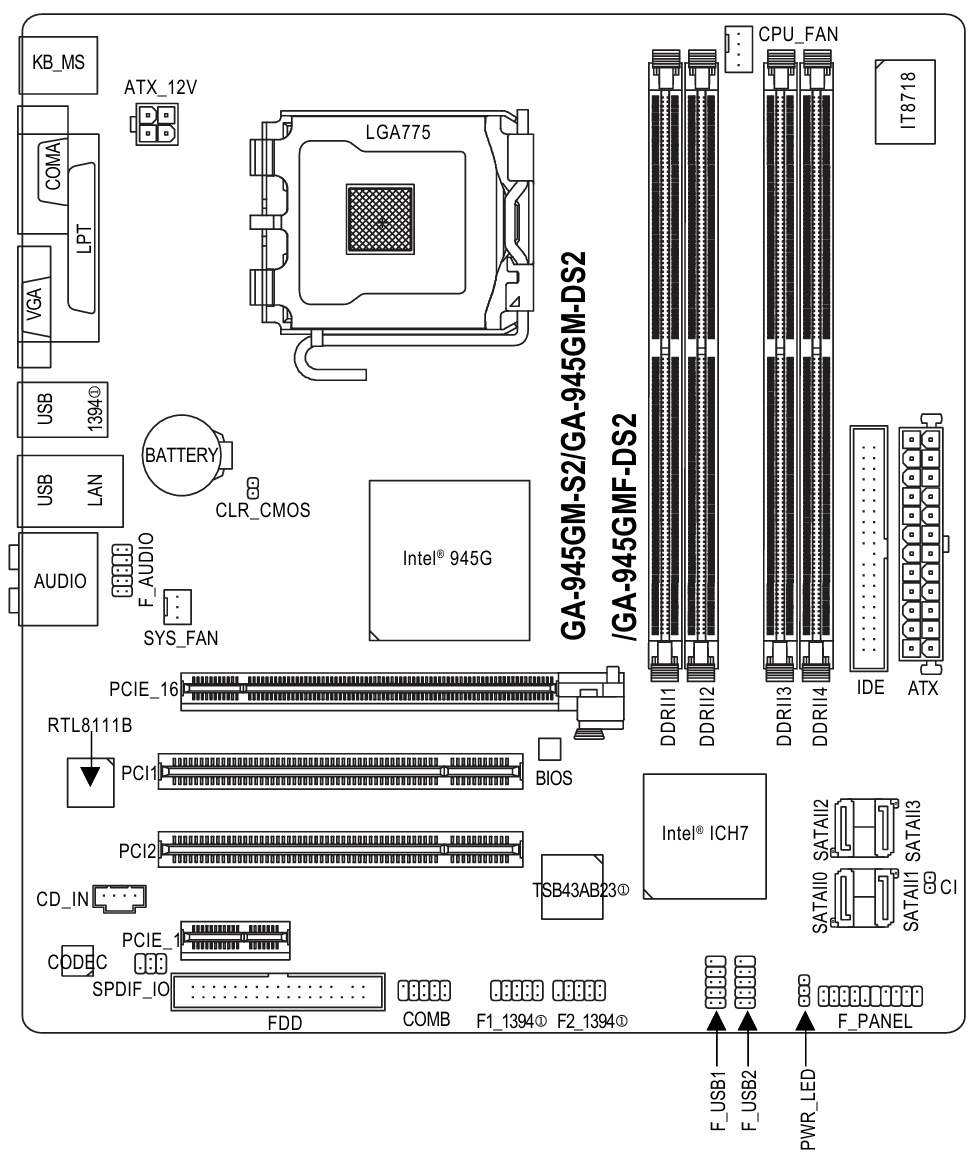

image2 Image 2 of 3 (Gigabyte)
image3 Image 3 of 3 (Gigabyte)
