Gigabyte GA-8S655FX-L (rev. 1.0)
Logs
chipChipset
cpuSocket
Socket 478 (mPGA478)
speedFSB speeds
400MHz533MHz800MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
3x
FireWire 400
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
S/PDIF
2x
SATA I
2x
Serial
8x
USB 2.0
cardExpansion slots
1x
1.5V AGP
5x
32-bit PCI
notes Notes
  • Rev 1.0 and 1.1 share the exact same BIOS.
Last updated 2025-08-14T10:52:54Z
Board info score is 9.6/10
bios 8 BIOS files available

vendor Award - 8 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/08/2005-SiS-655FX-6A7I5G0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/17/2005-SiS-655FX-6A7I5G0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/03/2004-SiS-655FX-6A7I5G0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/01/2004-SiS-655FX-6A7I5G0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
02/25/2004-SiS-655FX-6A7I5G0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
02/06/2004-SiS-655FX-6A7I5G0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
09/15/2003-SiS-655FX-6A7I5G0AC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
09/02/2003-SiS-655FX-6A7I5G0AC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 9 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86 , PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
490.9KB
Filename
Name
Version
1.21
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
2.04A
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
4.11A
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
19KB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
16.5KB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
31.9KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-11-05
File
Logs
Chip
Release date
2003-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2005-02
File
Logs
Family
Release date
2005-05
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-10
File
Logs
Family
Release date
2001-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2001-10
File
Logs
Socket
Release date
2002-05
File
Logs
Socket
Release date
2002-10
File
Logs
Socket
Release date
2001-08
File
Logs

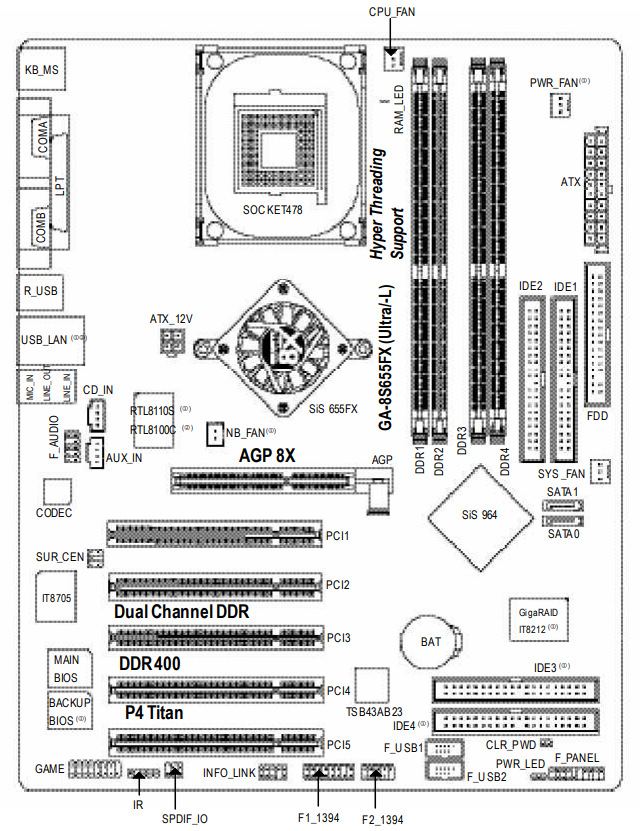

image1 Image 1 of 3 (Gigabyte)

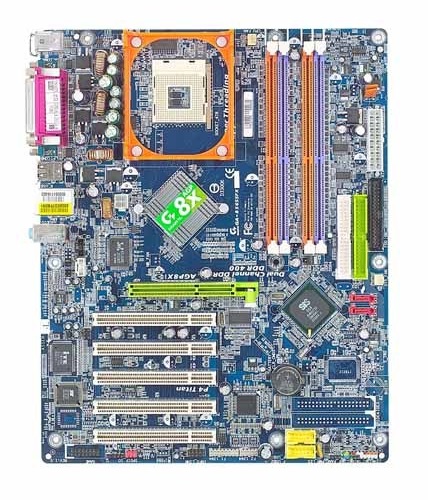

image2 Image 2 of 3 (Gigabyte)
image3 Image 3 of 3 (Gigabyte)
