Gigabyte GA-880GM-USB3 (rev. 3.1)
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
ramMax VRAM size
512MB
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
2x
FireWire 400
1x
HDMI
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
1x
S/PDIF
5x
SATA II
1x
Serial
1x
Toslink
10x
USB 2.0
2x
USB 3.0
1x
VGA
1x
eSATA II
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-08-07T15:34:22Z
Board info score is 9.4/10
bios 6 BIOS files available

vendor Award - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
07/10/2012-RS880-SB710-7A66BG0PC-00
Note
Beta Bios
Core version
6.00PG
BIOS version
Logs
POST string
10/25/2011-RS880-SB710-7A66BG0PC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/29/2011-RS880-SB710-7A66BG0PC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/14/2011-RS880-SB710-7A66BG0PC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/09/2011-RS880-SB710-7A66BG0PC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/07/2011-RS880-SB710-7A66BG0PC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
image1 Image 1 of 5 (Gigabyte)
image2 Image 2 of 5 (Motherboard Continuum)
image3 Image 3 of 5 (Motherboard Continuum)
image4 Image 4 of 5 (Motherboard Continuum)

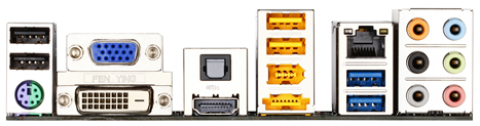

image5 Image 5 of 5 (Gigabyte)
