Gigabyte GA-880G-UD3H (rev. 1.x)
Logs
chipChipset
cpuSocket
Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 229mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

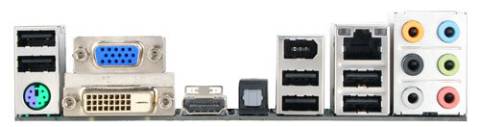

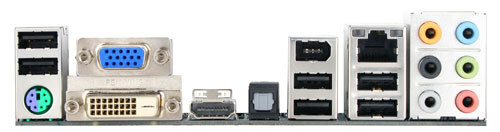

connI/O ports
1x
3.5mm Audio Combo
1x
DVI
3x
FireWire 400
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
1x
Toslink
12x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
3x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x4
notes Notes

Uses Realtek RTL8111D or RTL8111E Network Chip

Last updated 2025-09-25T06:23:33Z
Board info score is 9.2/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/23/2010-RS880P-SB710-7A66BG0LC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

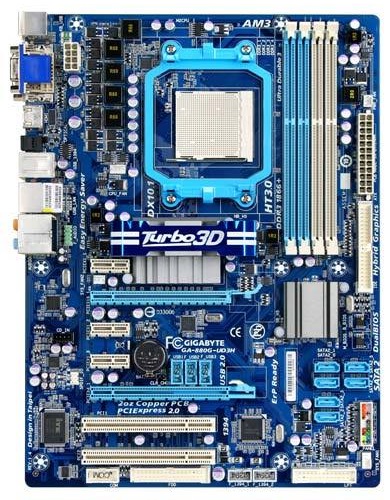

image1 Image 1 of 3 (Gigabyte)
image2 Image 2 of 3 (Gigabyte)
image3 Image 3 of 3 (Gigabyte)
