Gigabyte GA-7ZMMP-TU
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200MHz266MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 222mm
ramMax VRAM size
32MB
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB(PC133)
ramRAM types
VCM SDR UDIMMSDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
S/PDIF
1x
Serial
4x
USB 1.x
1x
VGA
cardExpansion slots
3x
32-bit PCI
1x
AMR
Last updated 2024-05-18T13:27:54Z
Board info score is 8.1/10
bios 0 BIOS files available

vendor AMI - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-0919-001199-00101111-071595-VIA_K7-GA7ZMM01
Note
Core version
BIOS version
F6
Logs
POST string
62-0810-001199-00101111-071595-VIA_K7-GA7ZMM01
Note
Core version
BIOS version
F5
Logs
POST string
62-0507-001199-00101111-071595-VIA_K7-GA7ZMM01
Note
Core version
BIOS version
F4
Logs
POST string
62-0403-001199-00101111-071595-VIA_K7-GA7ZMM01
Note
Core version
BIOS version
F3
Logs
POST string
62-0302-001199-00101111-071595-VIA_K7-GA7ZMM01
Note
Core version
BIOS version
F2
Logs
drv 81 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
4.3MB
Filename
Name
Version
45.23
OS support
Windows 9x
Arch
x86
Size
9.3MB
Filename
Name
Version
40.72
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
12.3MB
Filename
Name
Version
28.32
OS support
Windows 9x
Arch
x86
Size
8MB
Filename
Name
Version
28.32
OS support
Windows NT 4.0
Arch
x86
Size
7.7MB
Filename
Name
Version
28.32
OS support
Windows 9x
Arch
x86
Size
8MB
Filename
Name
Version
28.32
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.2MB
Filename
Name
Version
56.64
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
10MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
1.08
OS support
Windows 2000 Windows 9x
Arch
x86
Size
553.6KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
4.3MB
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
973.7KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
4.6MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
36.4MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
18.9MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
7.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
18.1MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
18.4MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
7MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
7.7MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
16.4MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
13.5MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
12.5MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
14.7MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
14.5MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
11.9MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
11.9MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
8.3MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
8MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.3MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
7.7MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
4.6MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
4.6MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
4.1MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
4.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
8MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.2MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
7.6MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
3MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
6.3MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
5.7MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
6.4MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
6MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
6.1MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
3.7MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
3.6MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
3.1MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
3.6MB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
3.6MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
3.2MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
9.6MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0
Arch
x86
Size
6.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
27.4MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
18.1MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
19.6MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.4MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
12MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
10.2MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
14.3MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
10.7MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
7.9MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.6MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
10.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
25.3MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
20MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
13MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
19.5MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
18.8MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
18.4MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
19MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
13.9MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
15.4MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
14.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
12.3MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
12MB
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.2MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1999-03-03
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

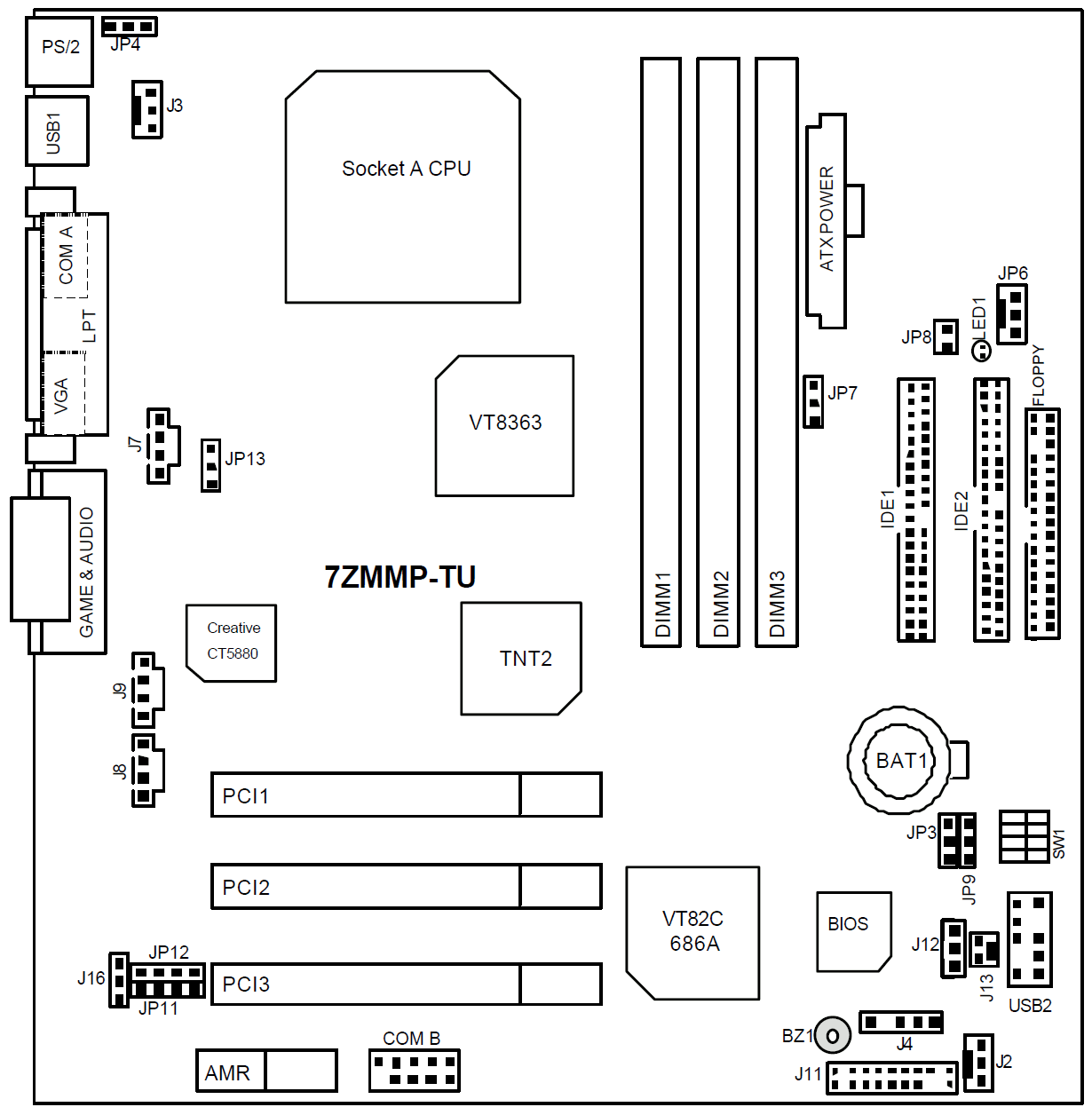

image1 Image 1 of 1 (evasive)
