Gigabyte GA-7IXE4 (rev. 1.0)
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speed
200MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 220mm
chipCache
None/Integrated in the CPU
ramMax RAM size
768MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
4x
USB 1.x
cardExpansion slots
2x
16-bit ISA
1x
3.3V AGP
5x
32-bit PCI
notes Notes

Probably this is the only Socket 462 motherboard using the AMD Irongate chipset

Last updated 2025-08-14T11:10:13Z
Board info score is 9.8/10
bios 5 BIOS files available

vendor AMI - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-1005-001199-00101111-071595-IRONGATE
Note
Core version
071595
BIOS version
Logs
POST string
62-1005-001199-00101111-071595-IRONGATE
Note
Core version
071595
BIOS version
Logs
POST string
62-1005-001199-00101111-071595-IRONGATE
Note
Core version
071595
BIOS version
Logs
POST string
62-1005-001199-00101111-071595-IRONGATE
Note
Core version
071595
BIOS version
Logs
POST string
62-1005-001199-00101111-071595-IRONGATE
Note
Core version
071595
BIOS version
Logs
drv 9 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.11
OS support
Windows 9x
Arch
x86
Size
180.2KB
Filename
Name
Version
1.22s
OS support
Windows 9x
Arch
x86
Size
423.6KB
Filename
Name
Version
1.30
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.7MB
Filename
Name
Version
4.45
OS support
Windows 2000
Arch
Size
143.7KB
Filename
Name
Version
4.45
OS support
Windows 9x
Arch
Size
120.2KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
609.9KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
267.6KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
8.3MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
1.4MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1998-05-18
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1999-04
File
Logs
Chip
Release date
2005-04-14
File
Logs
Chip
Release date
2003-04
File
Logs
Chip
Release date
1999-03
File
Logs
Chip
Release date
2010-01
File
Logs

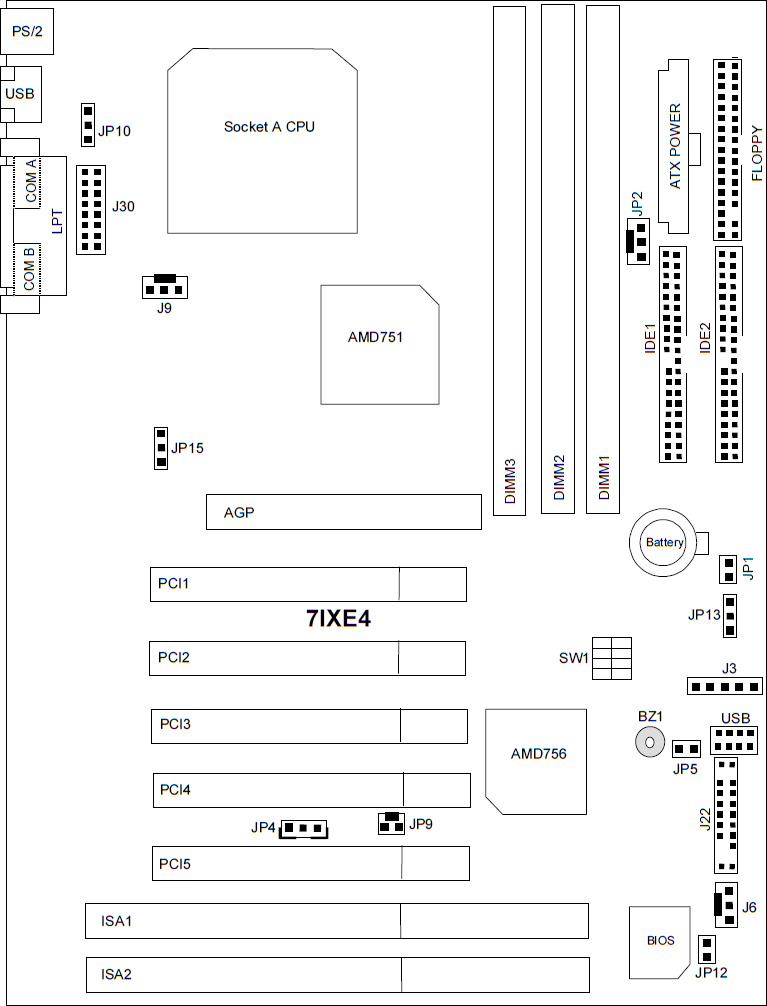

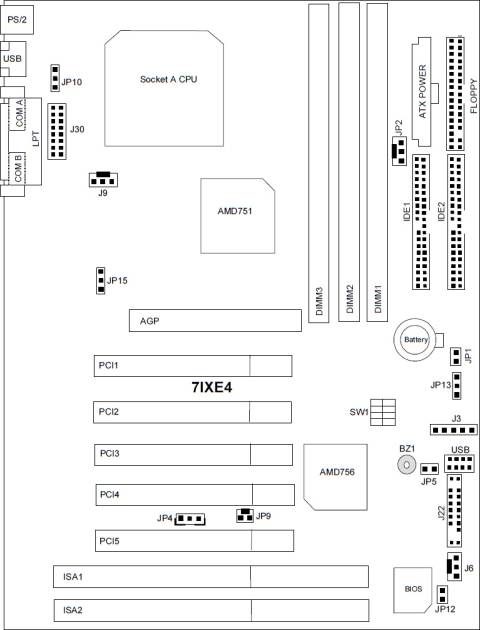

image1 Image 1 of 5 (Gigabyte)
image2 Image 2 of 5 (Ninkeo)
image3 Image 3 of 5 (Petros Savvas)
image4 Image 4 of 5 (Petros Savvas)

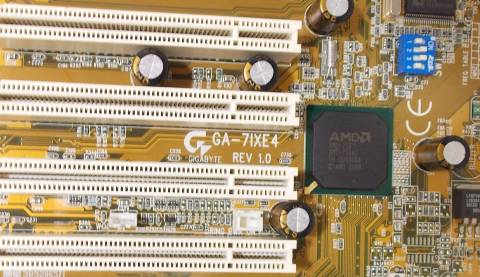

image5 Image 5 of 5 (Petros Savvas)
