Gigabyte GA-78LMT-USB3 (rev. 6.0)
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 220mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
HDMI
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
8x
USB 2.0
4x
USB 3.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-05-04T09:27:25Z
Board info score is 9.4/10
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/25/2014-RS780L-SB710-7A66CG0YC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
11/12/2014-RS780L-SB710-7A66CG0YC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Name
Version
4.20b
OS support
Windows 7 Windows Vista
Arch
x86 , x86-64
Size
14.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7
Arch
x86 , x86-64
Size
63.5MB
Filename
Version
OS support
Windows 7
Arch
x86 , x86-64
Size
8.4MB
Filename
Version
OS support
Windows 7 Windows Vista
Arch
x86 , x86-64
Size
11.4MB
Filename
Version
OS support
Windows 7 Windows Vista
Arch
x86 , x86-64
Size
11.4MB
Filename
image1 Image 1 of 4 (Gigabyte)
image2 Image 2 of 4 (Motherboard Continuum)

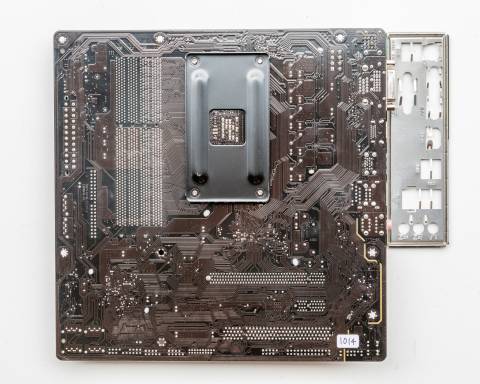

image3 Image 3 of 4 (Motherboard Continuum)

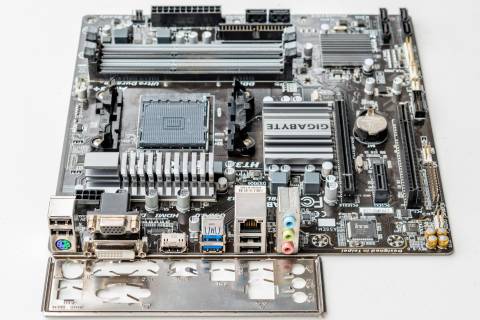

image4 Image 4 of 4 (Motherboard Continuum)
