Gigabyte GA-78LMT-USB3 (rev. 4.1)
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
HDMI
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
8x
USB 2.0
4x
USB 3.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-07-09T21:14:08Z
Board info score is 9.4/10
bios 4 BIOS files available

vendor Award - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
10/19/2012-RS780L-SB710-7A66CG0UC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
10/02/2012-RS780L-SB710-7A66CG0UC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/10/2012-RS780L-SB710-7A66CG0UC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
07/26/2012-RS780L-SB710-7A66CG0UC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
10.001.0505.2015
OS support
Windows 10
Arch
x86 , x86-64
Size
9.4MB
Filename
Name
Version
7.082.0317.2014
OS support
Windows 7
Arch
x86 , x86-64
Size
3.7MB
Filename
Name
Version
8.029.0314.2014
OS support
Windows 8.x
Arch
x86 , x86-64
Size
3.6MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

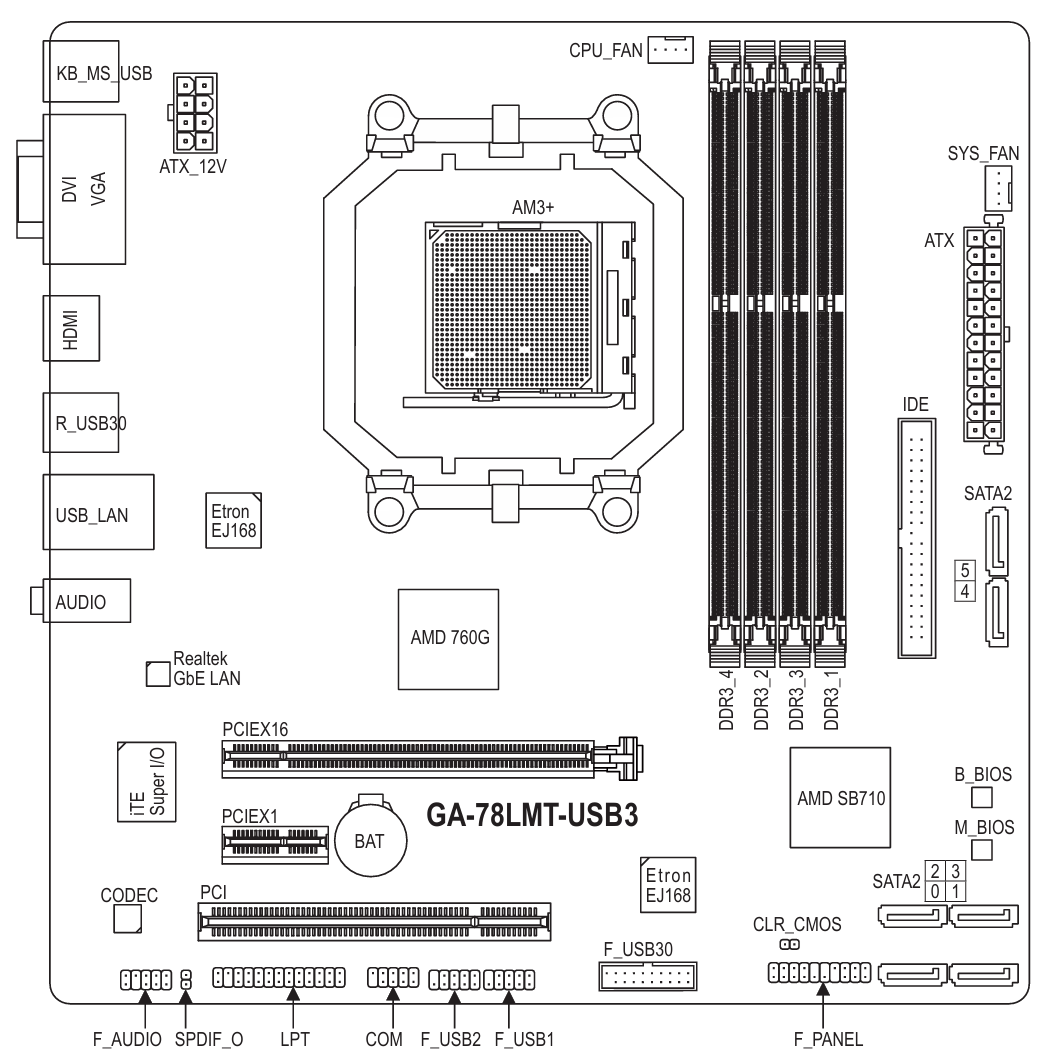

image1 Image 1 of 6 (Gigabyte)

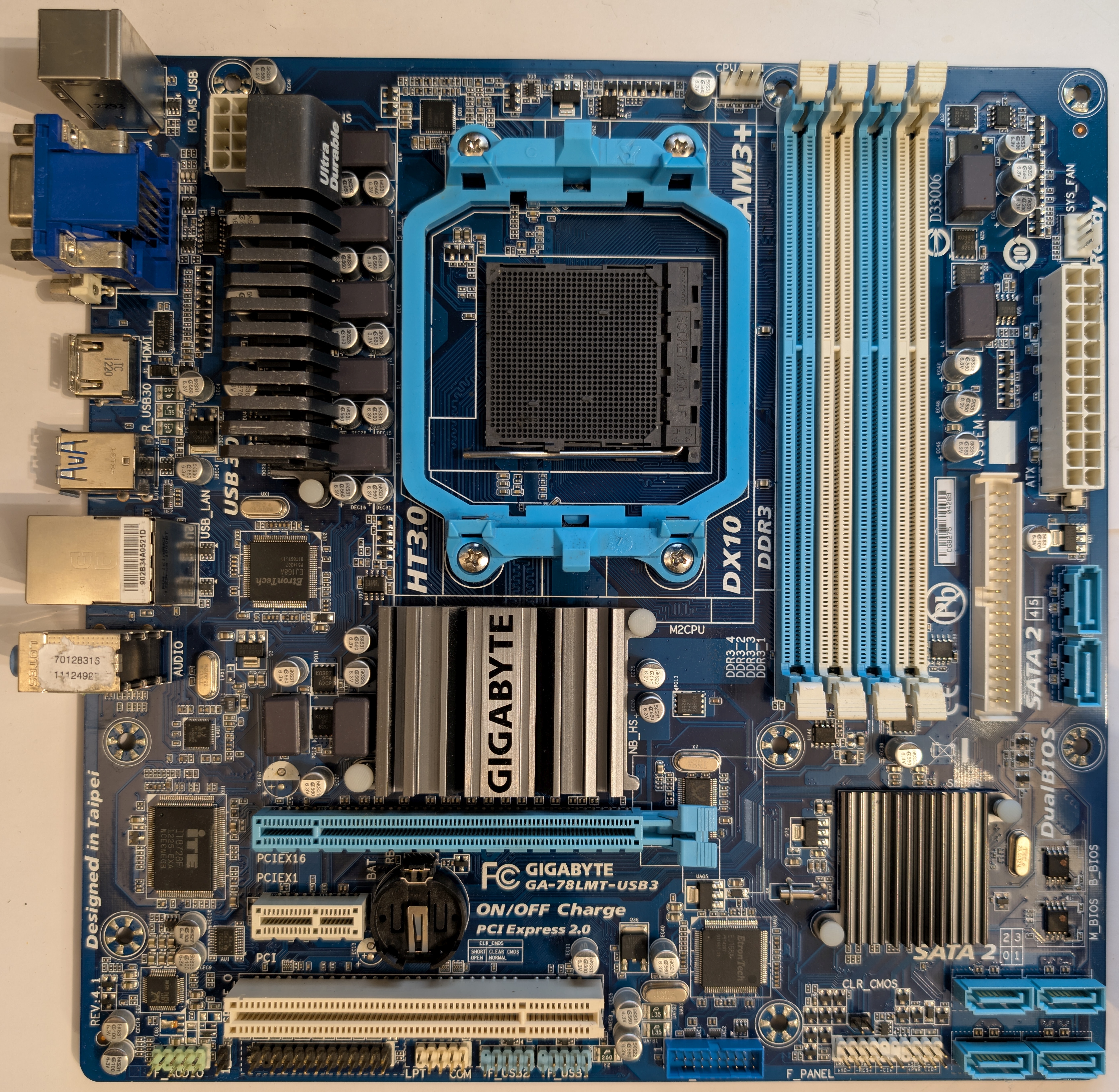

image2 Image 2 of 6 (Motherboard Continuum)

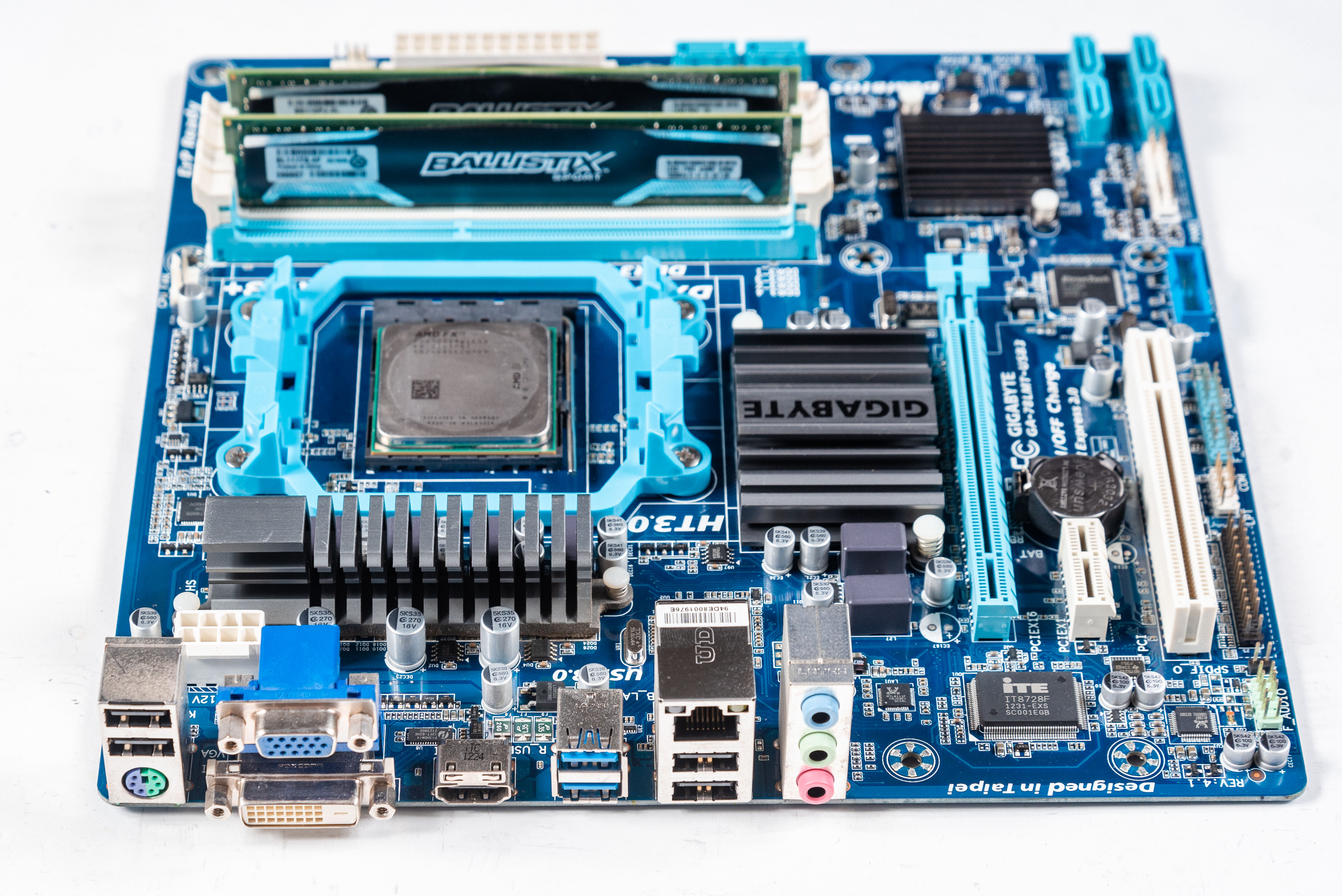

image3 Image 3 of 6 (Eric Voirin (oerg866))

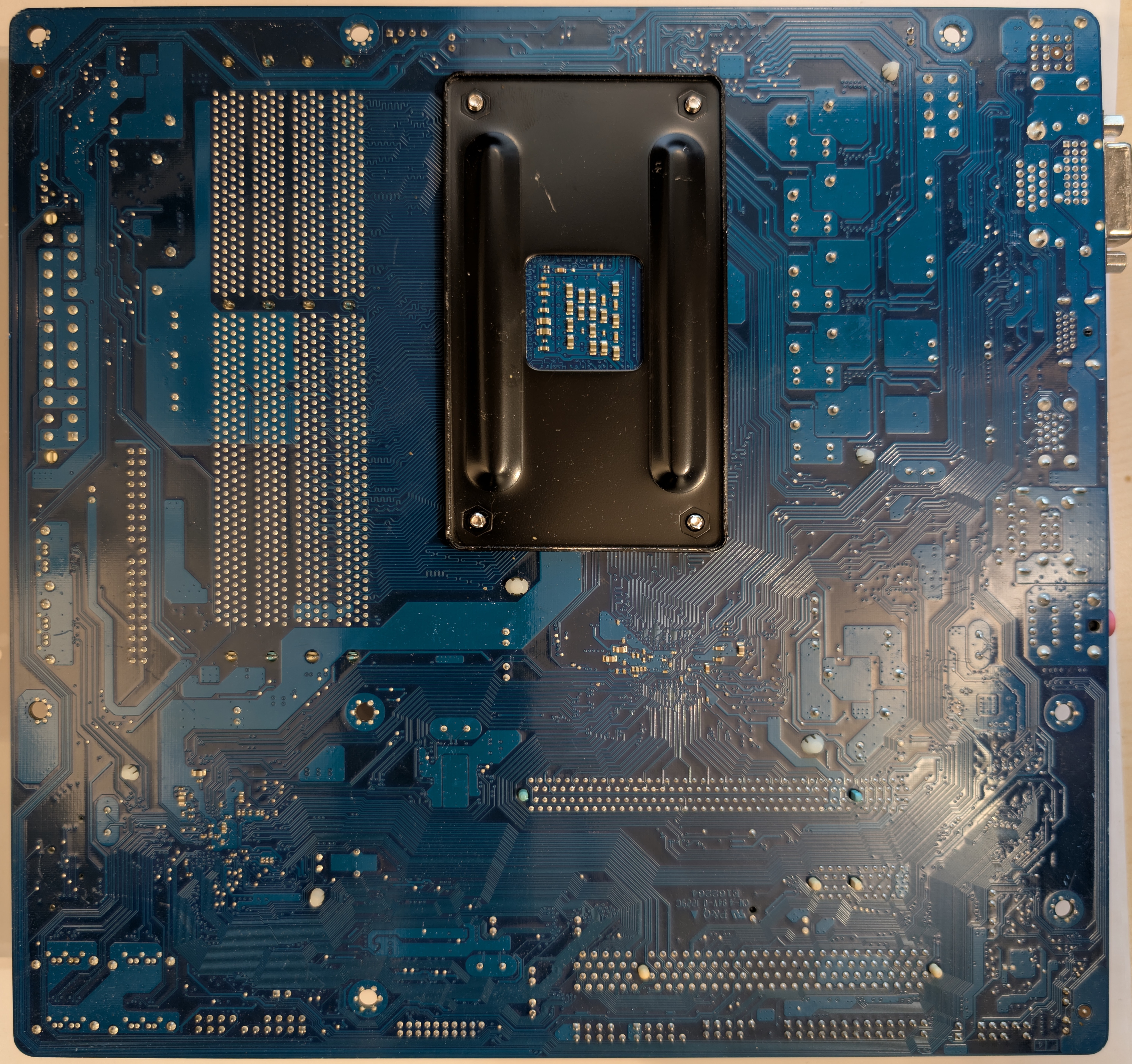

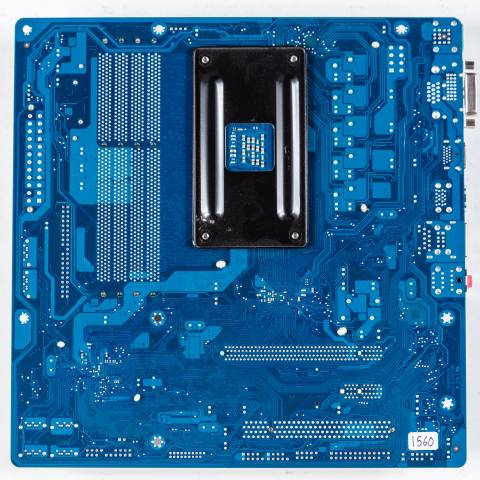

image4 Image 4 of 6 (Motherboard Continuum)

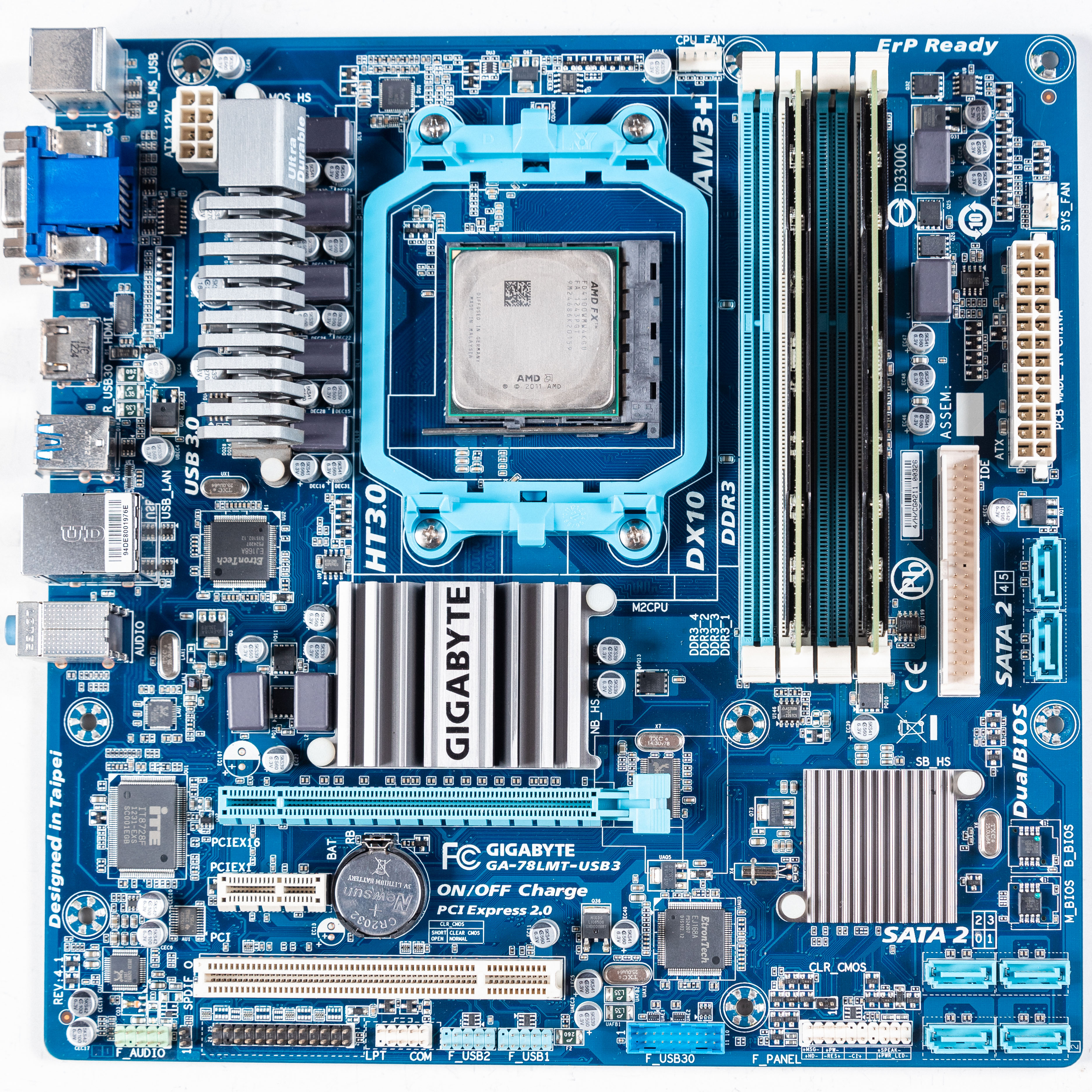

image5 Image 5 of 6 (Eric Voirin (oerg866))

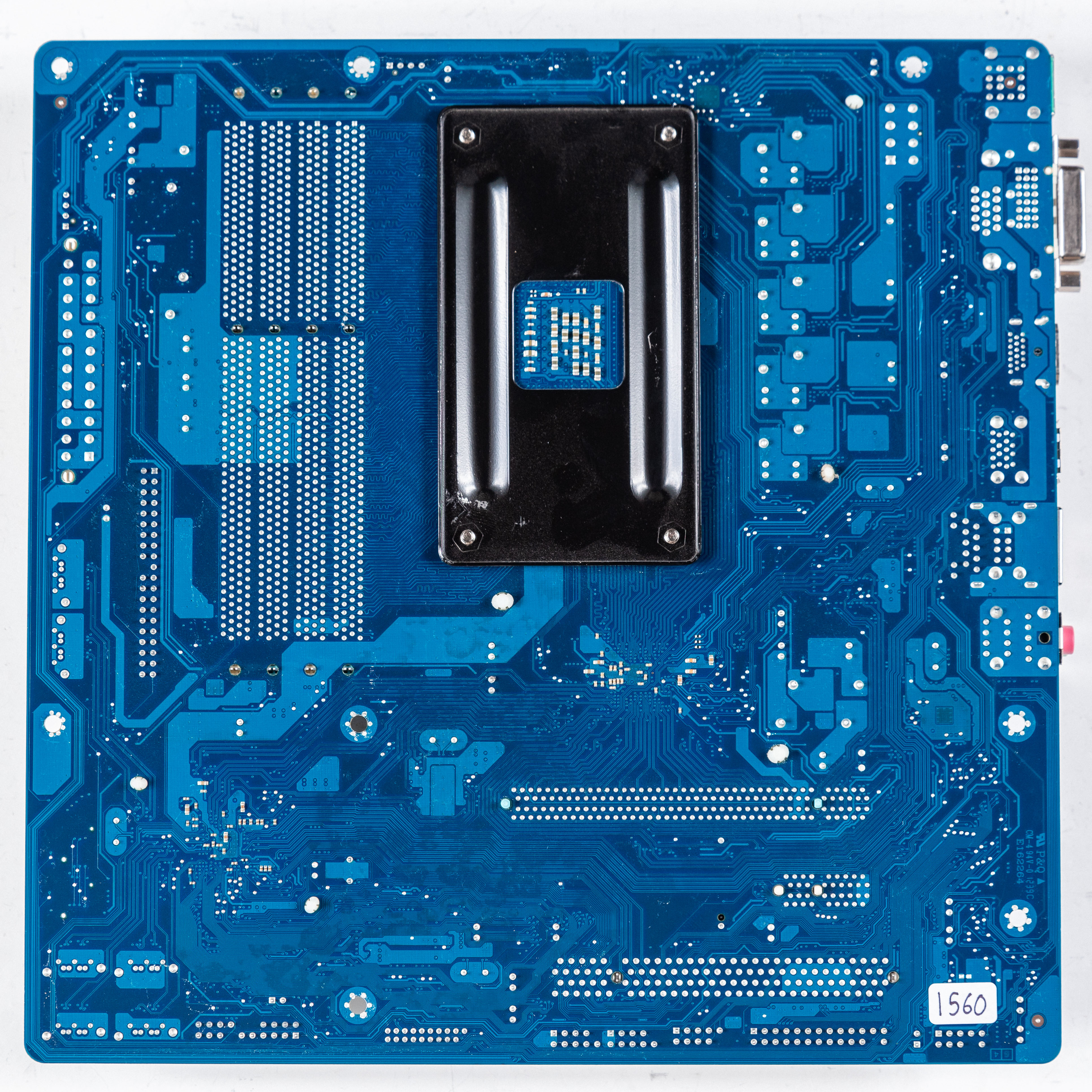

image6 Image 6 of 6 (Motherboard Continuum)
