Gigabyte GA-785GMT-USB3 (rev. 1.0)
Logs
chipChipset
cpuSocket
Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
243mm x 243mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

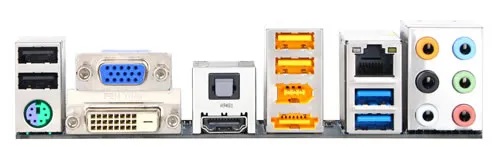

connI/O ports
1x
3.5mm Audio Combo
1x
DVI
2x
FireWire 400
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
1x
S/PDIF
5x
SATA II
1x
Serial
1x
Toslink
12x
USB 2.0
2x
USB 3.0
1x
VGA
1x
eSATA II
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2024-09-19T11:40:00Z
Board info score is 9.2/10
bios 4 BIOS files available

vendor Award - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/14/2010-RS785-SB710-7A66BG0BC-00
Note
Beta Version
Core version
v6.00PG
BIOS version
Logs
POST string
05/25/2010-RS785-SB710-7A66BG0BC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
04/16/2010-RS785-SB710-7A66BG0BC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
01/04/2010-RS785-SB710-7A66BG0BC-00
Note
Core version
v6.00PG
BIOS version
Logs
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
7.2MB
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
7.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
11.3MB
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
7.2MB
Filename

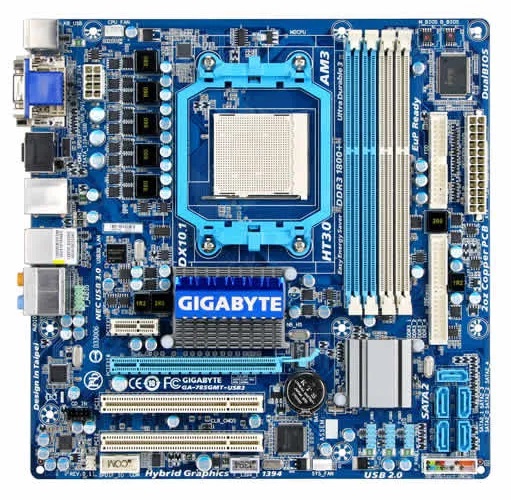

image1 Image 1 of 3 (Gigabyte)
image2 Image 2 of 3 (Gigabyte)
image3 Image 3 of 3 (Gigabyte)
