Gigabyte GA-770T-D3L (rev. 8.8)
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 190mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
2x
S/PDIF
6x
SATA II
1x
Serial
10x
USB 2.0
cardExpansion slots
2x
32-bit PCI
4x
PCIe x1
1x
PCIe x16
Last updated 2025-03-28T14:38:53Z
Board info score is 9.2/10
bios 3 BIOS files available

vendor Award - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
02/01/2012-RS880G-SB710-7A66BG0WC-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
09/27/2011-RS880G-SB710-7A66BG0WC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
09/19/2011-RS880G-SB710-7A66BG0WC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

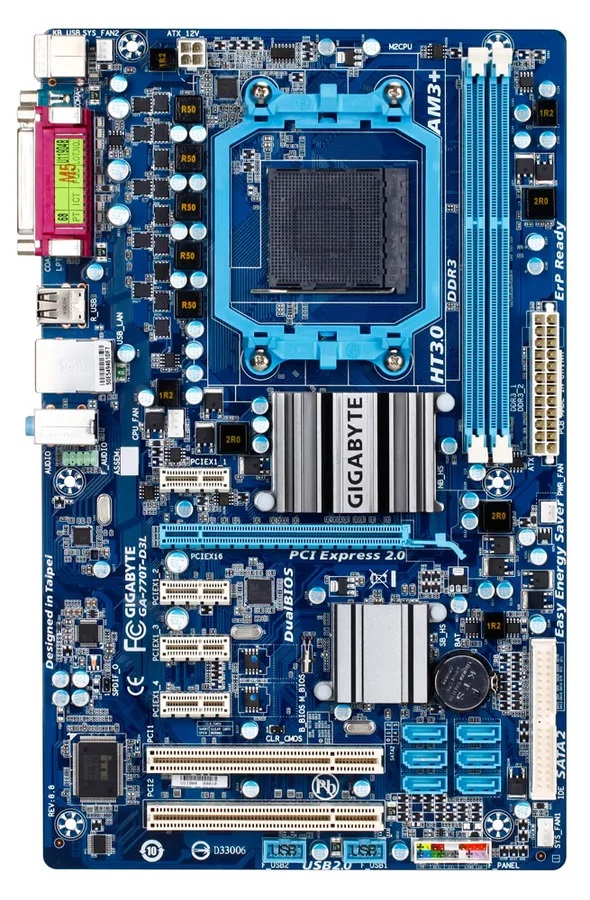

image1 Image 1 of 4 (Gigabyte)

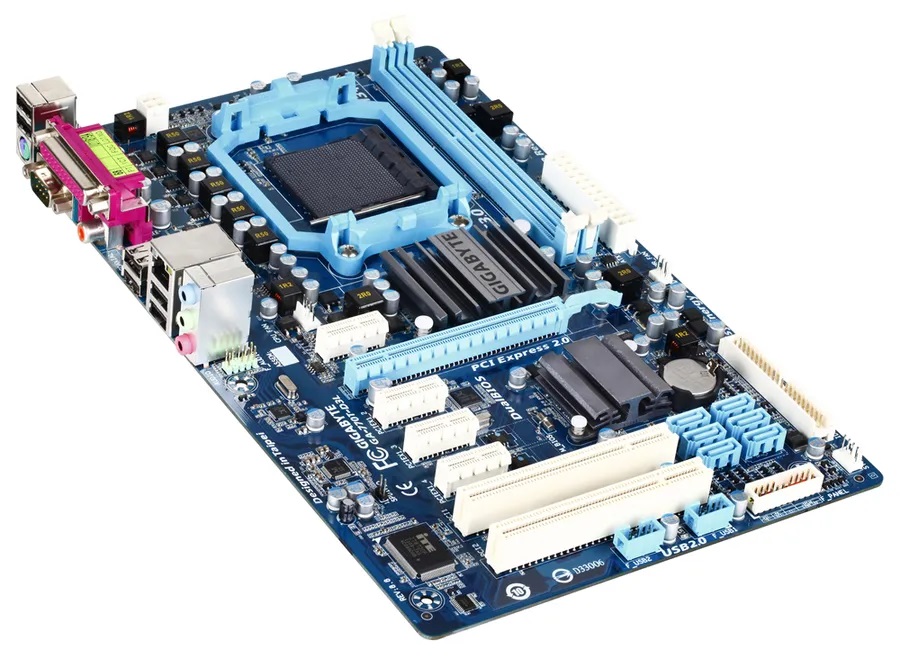

image2 Image 2 of 4 (Gigabyte)

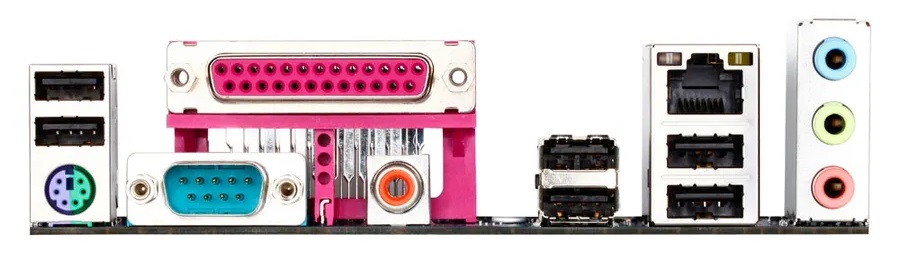

image3 Image 3 of 4 (Gigabyte)

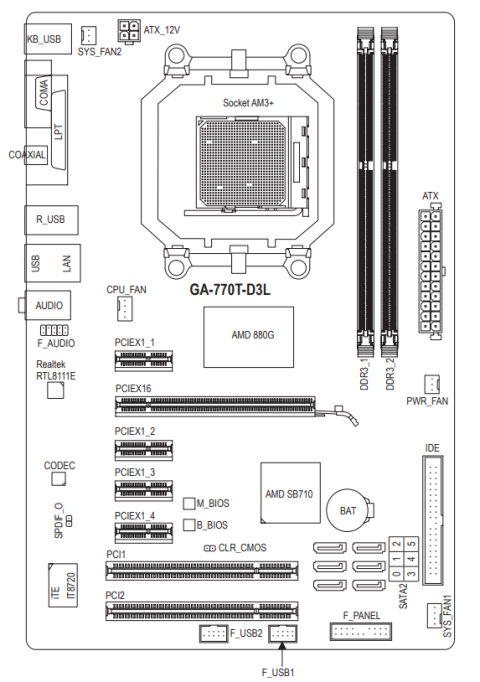

image4 Image 4 of 4 (Gigabyte)
