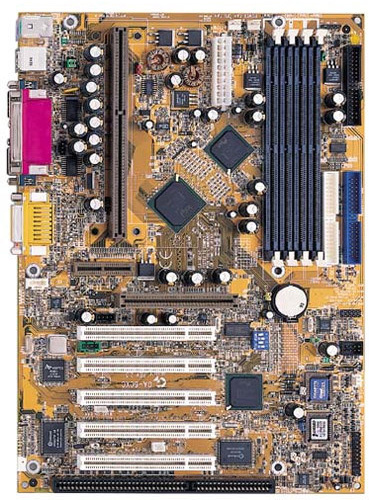

Gigabyte GA-6CXC REV 2.1
Logs
chipChipset
cpuSocket
speedFSB speeds
100MHz133MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM type
SDR UDIMM
pwrPSU connector
tag Also known as
  • Gigabyte GA-6CXC-1 REV 2.1 (no Sound, 2 USB only)
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
1x
16-bit ISA
5x
32-bit PCI
1x
AMR
1x
Universal AGP
wrench No board specific known issues
Last updated 2025-10-08T18:12:38Z
Board info score is 9.3/10
bios 3 BIOS files available

vendor AMI - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0702-001199-00101111-071595-CAMINO-GA6CX008
Note
GA-6CXC only
Core version
071595
BIOS version
Logs
POST string
63-0702-001199-00101111-071595-CAMINO-GA6CX009
Note
GA-6CXC-1 only
Core version
071595
BIOS version
Logs
POST string
63-0702-000000-00101111-071595-CAMINO-1AABS001
Note
GA-6CXC only
Core version
071595
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.23.03
OS support
Windows NT 4.0
Arch
x86
Size
5.2MB
Filename
Name
Version
4.06.3220
OS support
Windows 9x
Arch
x86
Size
35.1MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
